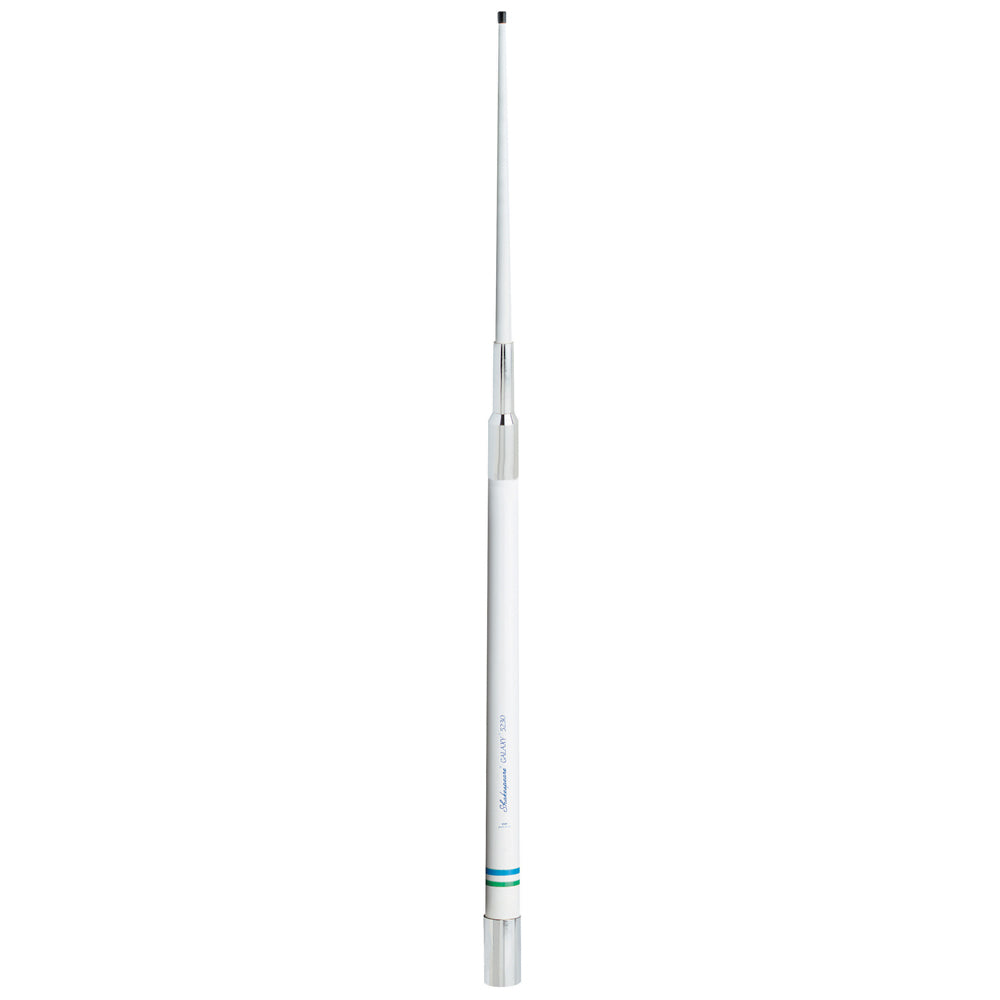

Shakespeare Galaxy 5230
14' VHF 8dB Gain
5/8 wave over 1/2 wave dipole
The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20 feet of RG-8/X cable and a PL-259 connector
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
- Two sections: Base 94", Tip 74" -
- Shakespeare Limited Warranty: 5 years
Technical Specifications:
| Frequency: |
VHF Marine Band |
| Bandwidth: |
3 MHz within 2.0:1 VSWR |
| SWR: |
nominally 1.5:1 at 156.8 MHz |
| Impedance: |
50 ohms |
| Gain: |
8 dB |
| Max Input (Watts): |
200 watts |
| DC Ground: |
YES |
| Height (feet): |
14 |
| Polarization: |
Vertical |
