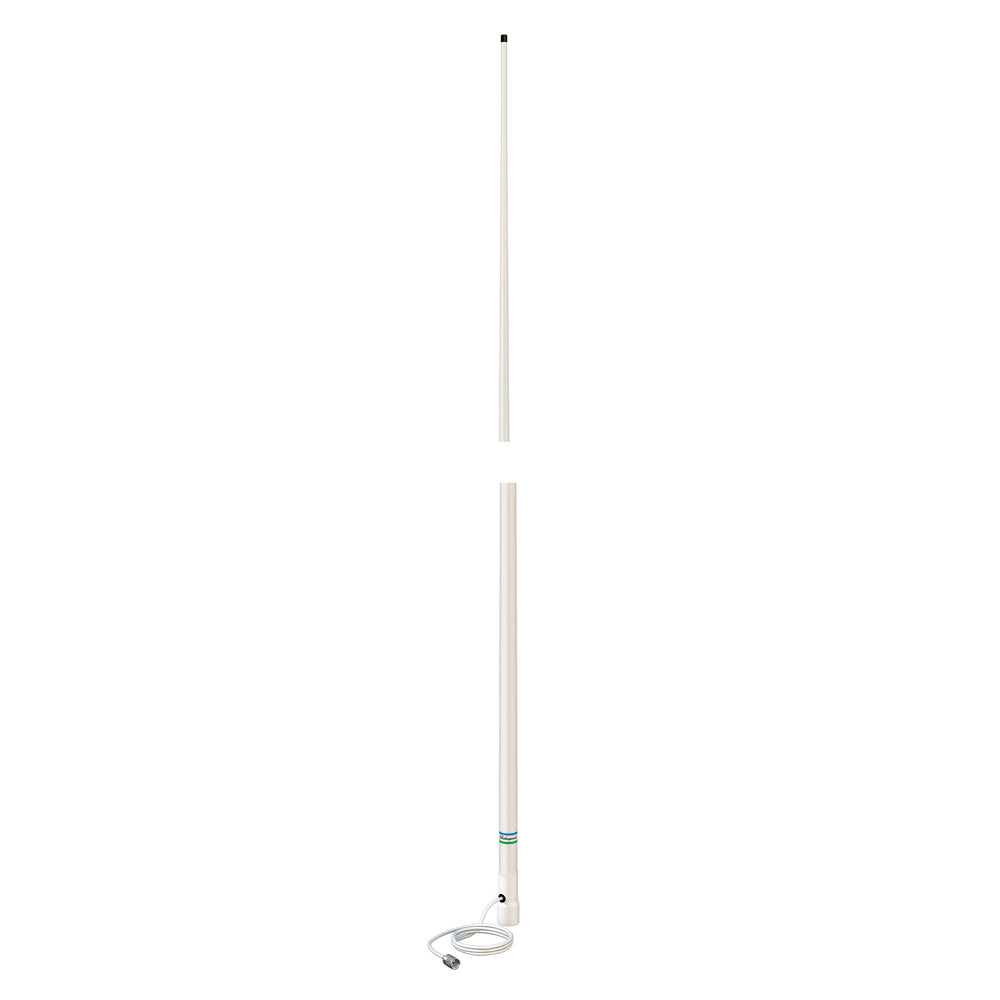

Shakespeare Style 5206-N VHF Marine - Reduced Length Version8' LENGTH 6dBEND-FED WITH MATCHING STUB
Same as the Style 5206-C, but the 5206-N has a nylon ferrule.
An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.
- Quality copper cable elements for good range and efficiency
- Nylon ferrule with standard 1"-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
- Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: |
VHF Marine band |
| Bandwidth: |
3 MHz |
| SWR: |
1.5:1 @156.8 MHz |
| Impedance: |
(Ohms): 50 |
| Gain: |
6 dB |
| Max Input (Watts): |
50 |
| DC Ground: |
NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester. |
| Termination: |
RG-58 |
| Height (feet): |
8 |
| Polarization: |
Vertical |
| Radiation pattern: |
Omni-directional |
