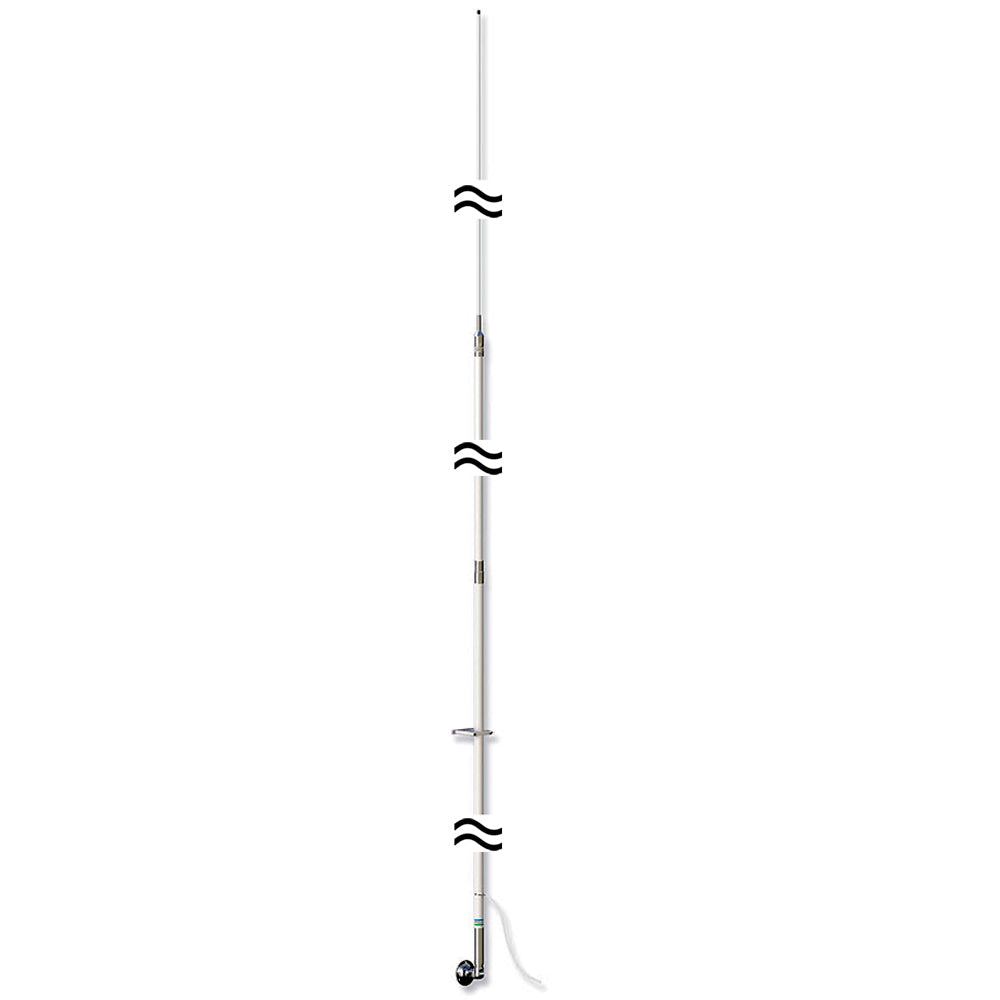

Shakespeare Style 393 SSB23' LENGTHWHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)
The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.
- Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
- Side feed termination band
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
- Three sections: Base 92"; Center 92"; Tip 92"
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: |
2-30 MHz HF band with tuner |
| Bandwidth: |
Resonant frequency 10.8 MHz |
| SWR: |
N/A |
| Impedance: |
(Ohms): N/A |
| Gain: |
N/A |
| Max Input (Watts): |
1000 |
| DC Ground: |
N/A |
| Termination: |
Side Termination |
| Height (feet): |
23 |
| Polarization: |
Vertical |
| Radiation pattern: |
Omni-directional |
