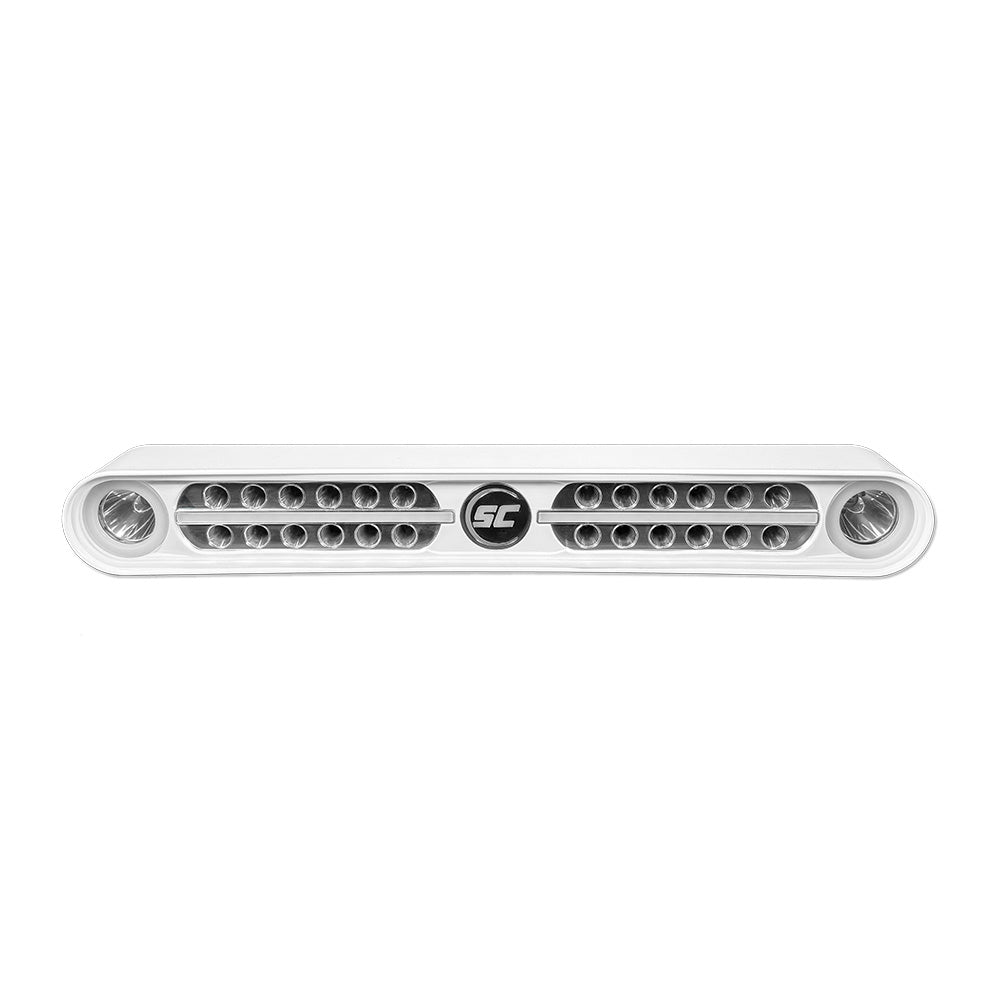

Eagle Ray LED Light Bar - White Housing & Dual Optics
Utilizing automotive lighting technology and novel beam shaping optics, Shadow-Caster has created the Eagle Ray – a unique light bar with a combination of focused laser-driven white light beams and a wide 60-degree LED flood array to efficiently light the way.
The focused white lights are ideal for long-distance viewing and penetrating fog, rain, and mist. The beam angle and brightness are adjustable with a push button or the Shadow-Caster® NMEA 2000 Light Commander interface.
Laser Features:
- Automotive-grade laser-driven white lights
- Blue halo illumination around optics indicates a power state
- Adjustable 5-100° beam angle control with a switch or MFD interface
Flood Features:
- 24 bright white LEDs
- Blue accent light strips indicate the brightness level
- 60-degree beam angle
- Adjustable brightness control with a switch or MFD interface
Technical Information:
- 20,000 lumens
- Billet Aluminum housing in white finish
- Remote power trigger to provide simpler installation (main current supply is not controlled through a switch)
- Borosilicate glass window
- 10-30V input
- 200W max power
- 16.5A current draw at 12V DC
- 2.5” H x 20” W x 5.4” D [65.3 x 506.5 x 136.9mm]
Control Options
On/off Push Buttons
Click the on/off button to turn the laser/flood lights on. Press and hold the button to adjust the beam angle (laser) or brightness (flood). Click the on/off button to turn the laser/flood lights off.
Standard Marine Rocker Switch
Click the rocker switch up/down button to turn the laser/flood lights on. Press and hold the switch up/down to adjust the beam angle (laser) or brightness (flood). Click the rocker switch up/down button to turn the laser/flood lights off.
Shadow-NET®/ NMEA 2000 Control
Full feature control through a Multi-Function Display (MFD). The Shadow-NET® Light Commander allows for easy and independent control of brightness and beam angle for the Eagle Ray Light Bar. Create and store pre-configured light settings for use as part of a lighting ‘scene’ for convenience at night.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Manufacturer Part Number: SCM-EAGLE-RAY-WH
