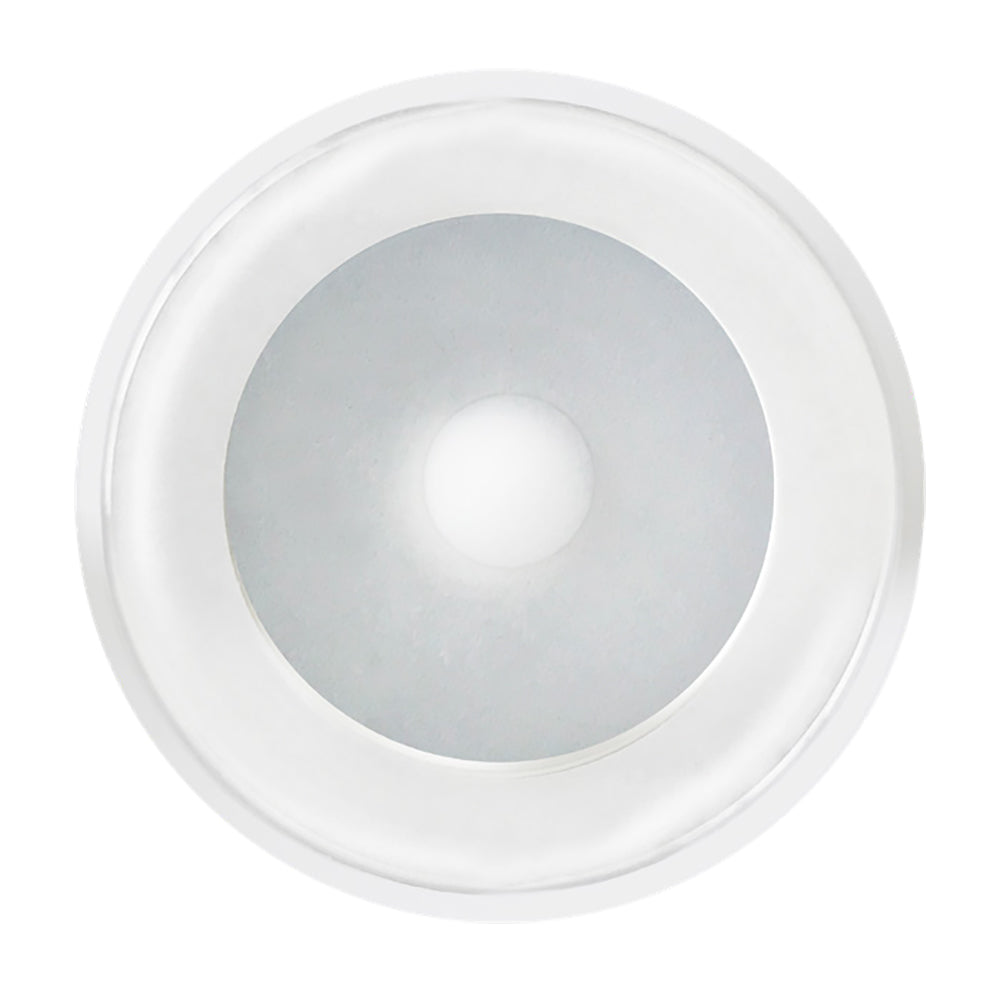

DLX Series Down Light - White Housing - White
The Shadow-Caster® Large Down Light (SCM-DLX) is perfect for lighting overhead areas of the interior and exterior of your boat or yacht. At 3” overall diameter, its wide-angle spread of light and all-glass reveal makes this the ideal light for T-Tops, cabins, towers, and more. The SCM-DLX series is available in 3 light output choices; single color white, 3 colors (white, blue, and red) as well as a full-color version. Choose from three beautiful color finishes – white, black and polished chrome. Easily control the brightness and color from a standard switch.
Features:
- Soft start technology ramps the brightness up gently over 2 seconds
- Power toggle feature to set brightness and change color
- True white LED for best color performance
- 120-degree viewing angle
- High-efficiency switch mode power supply
- Waterproof low-profile aluminum housing
- White, black, or polished chrome finish
- All-Glass reveal provides a modern look
Specifications:
- 300-lumen output
- 120-degree beam angle
- 3-watt power draw
- 10-30 volts Input
- 250mA at 12 volts, 125mA at 24 volts
- 6200 Kelvin cool white color temperature
- 3” (76mm) OD, 0.175” (4mm) mounting height
- 2” mounting hole
- IP67 waterproof design
- Durable glass lens
- Color change version includes Shadow-NET® interface for control
Includes:
- Down light
- Flush-mounting bracket and (3) #4 X 0.5” SS316PH screws
- Quick start guide
- Standard 2 year warranty
Manufacturer Part Number: SCM-DLX-GW-WH
