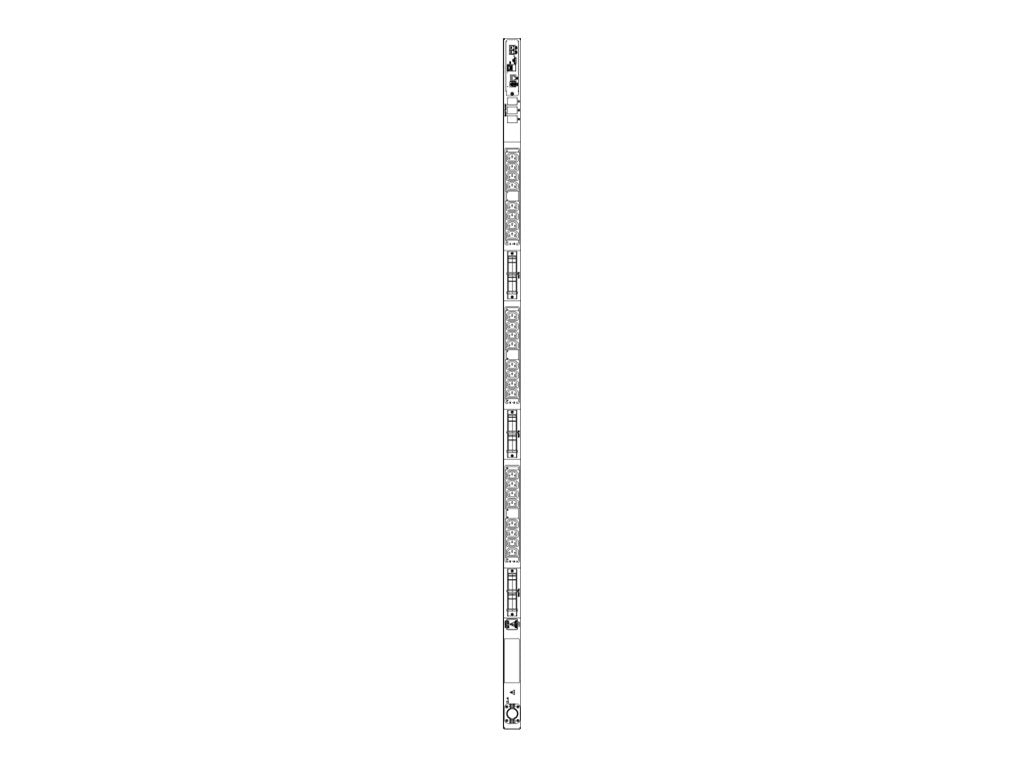

Server Technology Smart PDU C1S24VS-YCFA13A0 - Master - power distribution unit (rack-mountable) - AC 208 V - 8.6 kW - 3-phase - Ethernet 10/100, RS-232 - input: NEMA L21-30P - output connectors: 25 (NEMA 5-20R, 24 x IEC 60320 C13)
-
Network monitoring
Gain access to valuable data through connections.
-
Hot-swap network card
Network access is ensured when power is lost to the Primary unit with backup power provided by the primary link unit.
-
Star multi-linking
Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
-
Temperature/humidity monitoring
Receive SNMP-based alerts and email notifications.
-
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high density cabinets.
-
Branch circuit protection
This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
-
High retention locking outlets
Receptacles have high retention.
The Server Technology Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The power data points, along with temperature and humidity measurements are accessible through the built-in Web and CLI interfaces as well as through SNMP. The Smart "Primary" PDU can be connected to a Smart "Link" PDU to extend the network access to the redundant or secondary power feed.
- Network monitoring
- Hot-swap network card
- Star multi-linking
- Temperature/humidity monitoring
- Auto-flip current display
- Branch circuit protection
- High retention locking outlets
