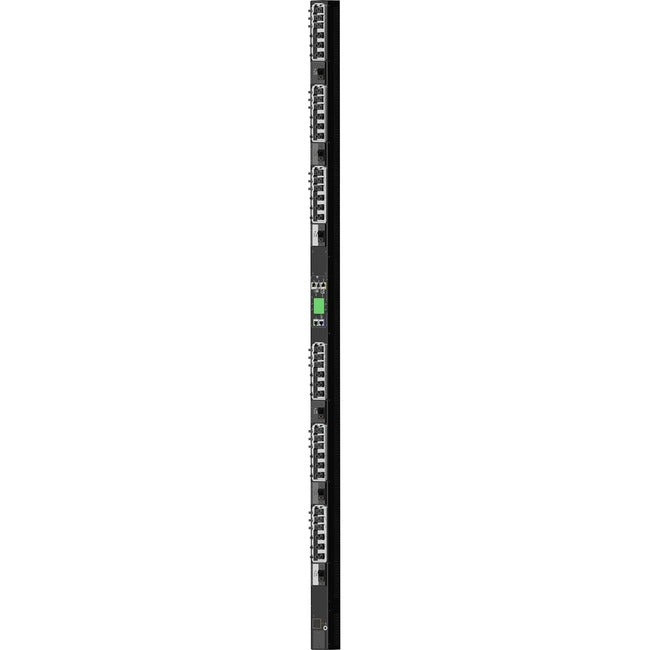

Server Technology Smart PDU - 17.3kW, C3S36RL-GPJE2MT2
This all new Server Technology PRO3X Smart PDU features RamLock HDOT outlets running with a Raritan Xerus Technology state of the art network interface module. Server Technology's unique RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring with support for Raritan plug and play sensor types like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.
- HDOT CX: Cx is the future ready UL tested hybrid of the C13 and C19 outlets accommodating both C20 and C14 plugs.
- NETWORK MONITORING: Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
- MULTI PRIMARY LINKING: Multi-Linking Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
- COLOR MATRIX LCD DISPLAY: Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
- HOT-SWAP CONTROLLER: 100% Field Replaceable while hot, no risk of short circuits, finger safe replacement in the unlikely event of an outage.
- RAMLOCK LOCKING OUTLETS: Receptacles have high retention and are compatible with P-Lock type power cords.
- ENVIRONMENTAL MONITORING: PRO3X units support a maximum of 12 daisy-chained Raritan DX2 sensor packages. Receive SNMP-based alerts and e-mail notifications
- PER-INLET POWER SENSING: Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
- BRANCH CIRCUIT PROTECTION: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
- HIGH TEMPERATURE RATING: This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
Product Type: PDU
Environmentally Friendly: Yes
Environmental Certification: EU WEEE
Country Of Origin: United States
Rack Height: 0U
Brand Name: Server Technology
Manufacturer: Server Technology, Inc
Product Name: Smart PDU - 17.3kW, C3S36RL-GPJE2MT2
Mount Type: Cabinet-mountable
Product Line: PRO3X
Manufacturer Part Number: C3S36RL-GPJE2MT2
Manufacturer Website Address: http://www.servertech.com
Package Contents:
- Smart PDU - 17.3kW, C3S36RL-GPJE2MT2
- Button Mounts
Limited Warranty: 2 Year
