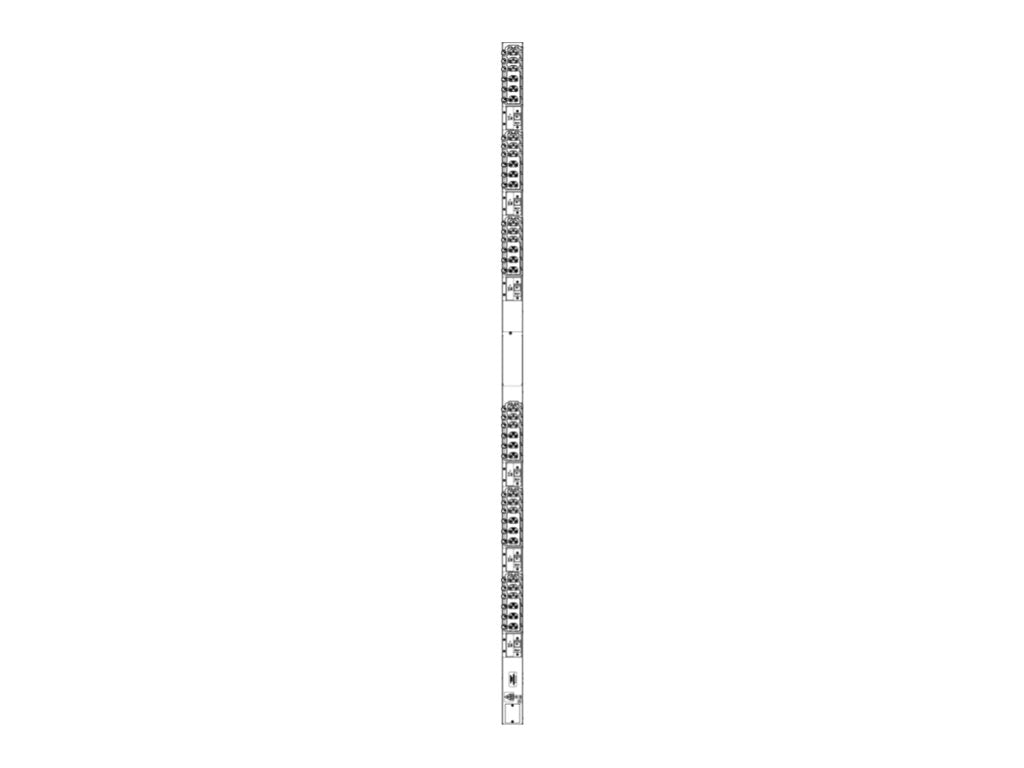

Server Technology PRO3X Switched POPS PDU C3WG36RL-DQJE2MT2 - Power distribution unit (rack-mountable) - AC 208 V - 17.3 kW - 3-phase 4 Wire delta - USB, Ethernet 10/100/1000 - input: IEC 60309 3P+G - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
-
HDOT Cx
Cx is the future ready UL tested hybrid of the C13 and C19 outlets accommodating both C20 and C14 plugs.
-
Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Multi Master Linking
Multi-Linking Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
-
Color Matrix LCD display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in highdensity cabinets.
-
Hot-swap controller
100% Field Replaceable while hot, no risk of short circuits, finger safe replacement in the unlikely event of an outage.
-
RamLock Locking Outlets
Receptacles have high retention and are compatible with PLock type power cords.
-
Environmental monitoring
PRO3X units support a maximum of 12 daisy-chained Raritan DX2 sensor packages. Receive SNMP-based alerts and e-mail notifications.
-
Per-Inlet Power Sensing
Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
-
Per-Outlet Power Sensing
Meets ANSI C12.1 for billing-grade accuracy of Current per phase. POPS includes voltage, active power, apparent power, power factor, and energy.
-
Branch current monitoring
Monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit.
-
Branch circuit protection
This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
-
Outlet controller
On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
-
High temperature rating
This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
-
Flexible mounting
Includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details).
The Server Technology PRO3X Switched POPS PDU features RamLock HDOT outlets running with a Raritan Xerus Technology state of the art network interface module. Server Technology's unique RamLock, a self-locking, elbow-catch mechanismto prevent accidental cord disconnects on standard network power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input and outlet power monitoring, branch current monitoring and outlet control with support for Raritan plug and play sensor types like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.
- HDOT Cx
- Network monitoring
- Multi Master Linking
- Color Matrix LCD display
- Hot-swap controller
- RamLock Locking Outlets
- Environmental monitoring
- Per-Inlet Power Sensing
- Per-Outlet Power Sensing
- Branch current monitoring
- Branch circuit protection
- Outlet controller
- High temperature rating
- Flexible mounting
