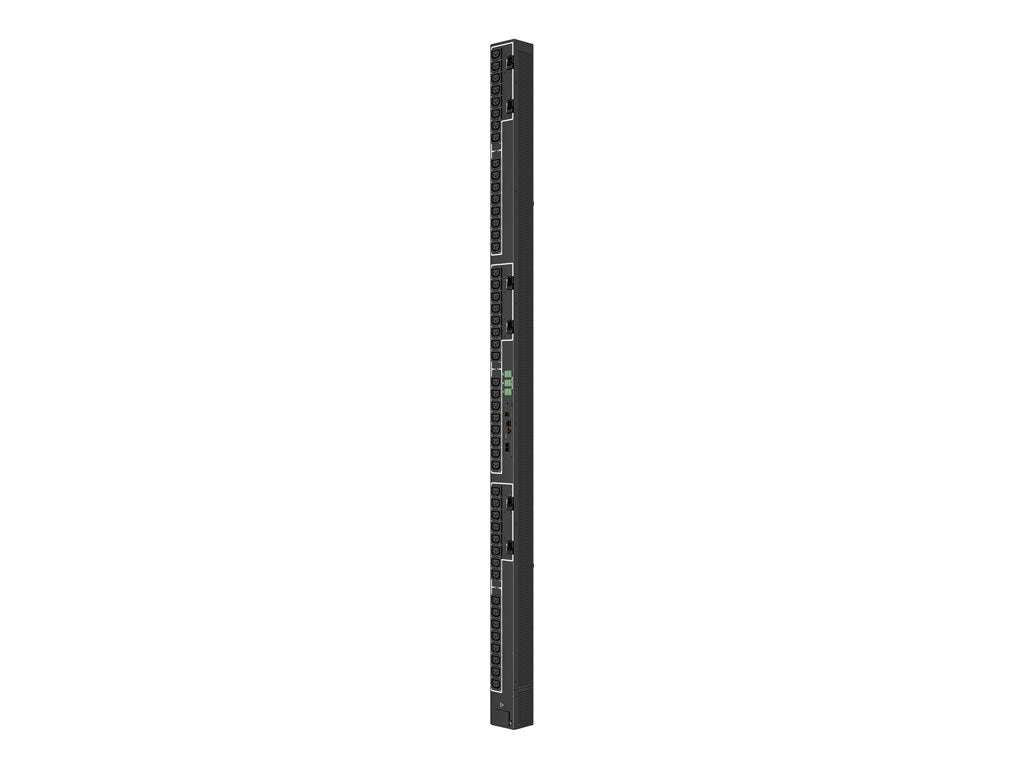

Server Technology PRO2 Switched POPS SEV-6521D - Link - power distribution unit (rack-mountable) - AC 208 V - 17.3 kW - 3-phase 4 Wire delta - Ethernet 10/100, RS-232 - input: IEC 60309 60A - output connectors: 48 (power IEC 60320 C13) - North America
- Network monitoring
- Hot-swap network card
- Star multi-linking
- Temperature/ humidity monitoring
- Auto-flip current display
- Per-inlet power sensing
- Per-outlet power sensing
- Branch current monitoring
- Outlet control
- High retention locking outlets
- High temperature rating
The PRO2 hot-swappable network card provides for HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more. Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
-
Network monitoring
The PRO2 hot-swappable network card provides for HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Hot-swap network card
Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
-
Star multi-linking
PRO2 provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
-
Temperature/ humidity monitoring
PRO2 Master and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
-
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
Per-inlet power sensing
Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
-
Per-outlet power sensing
Meets ANSI C12.1 for billing-grade accuracy of Current per phase. POPS includes voltage, active power, apparent power, power factor, and energy.
-
Branch current monitoring
PRO2 monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit.
-
Outlet control
On PRO2 Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
-
High retention locking outlets
PRO2 receptacles have high retention and are compatible with P-Lock type power cords.
-
High temperature rating
This product has been tested and approved for safe and reliable operation in 60°C (140°F) data center environments.
