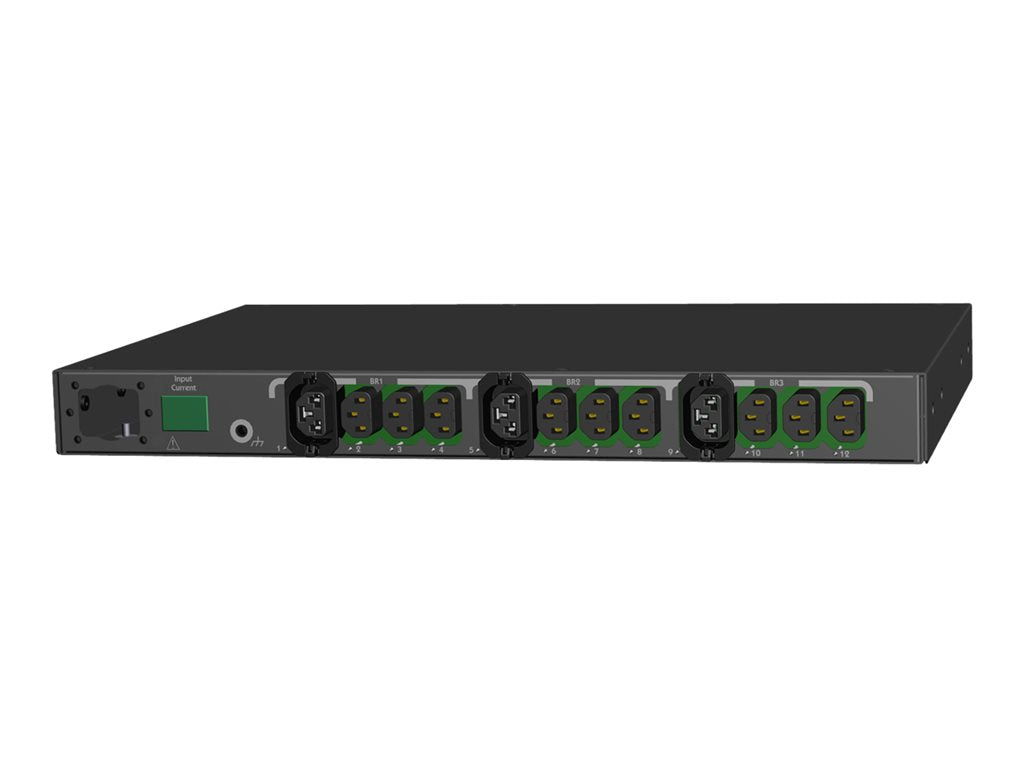

Server Technology PRO2 Switched POPS C2WG12SM-EPJA2D3 - Master - power distribution unit (rack-mountable) - AC 230 V - 7.3 kW - 1-phase - RS-232, Ethernet 10/100/1000 - input: IEC 60309 2P+PE - output connectors: 12 (9 x IEC 60320 C13, 3 x IEC 60320 Cx) - 1U
-
Input current monitor
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
Branch current monitoring
PRO2 monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit.
-
Branch circuit protection
This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
-
Outlet control
On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
-
High retention outlets
Receptacles have high retention and are compatible with P-Lock type power cords.
-
High temperature rating
This product has been tested and approved for safe and reliable operation in 60°C data center environments.
The Server Technology PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS and POPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output.
- Input current monitor
- Branch current monitoring
- Branch circuit protection
- Outlet control
- High retention outlets
- High temperature rating
