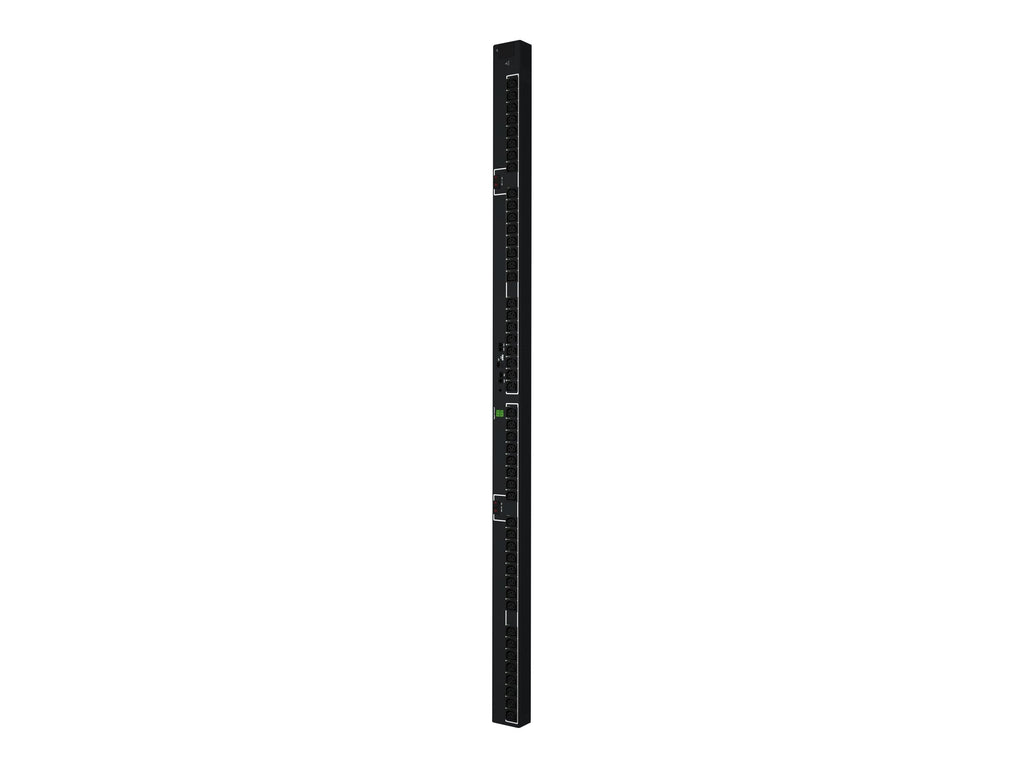

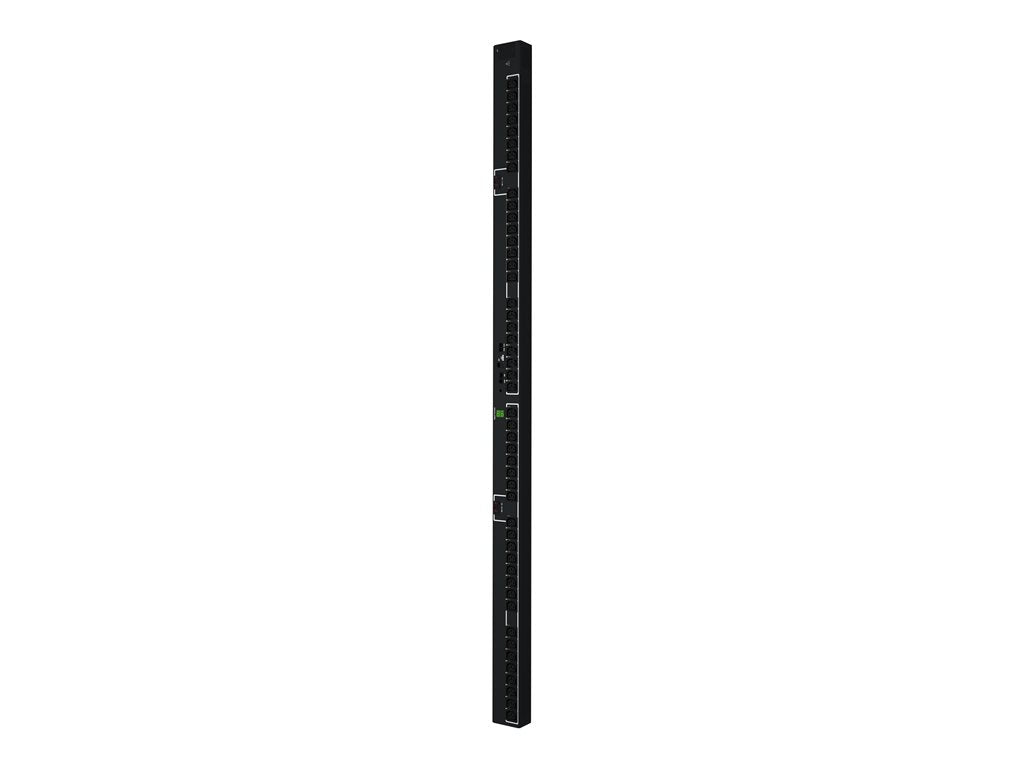

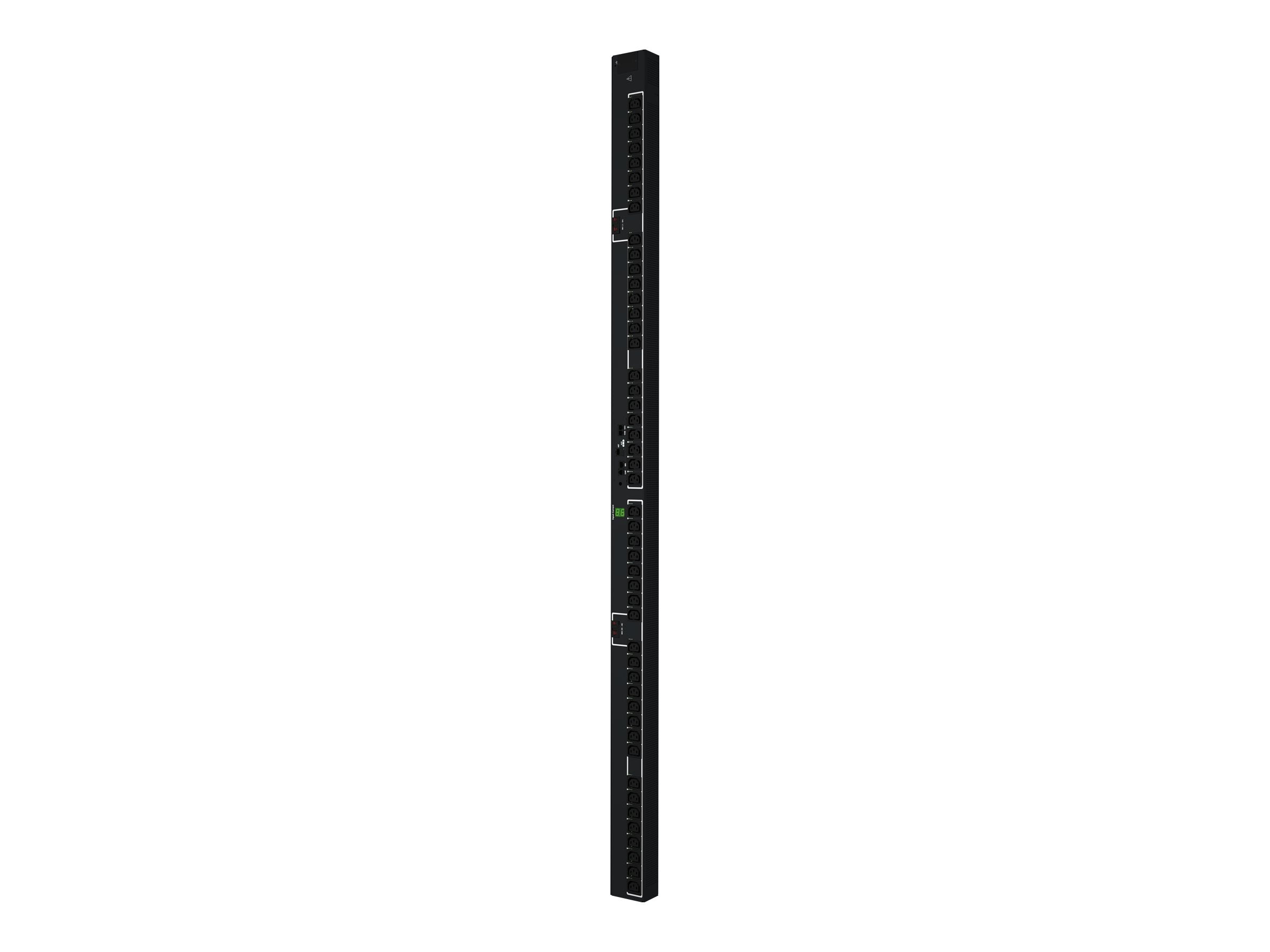

Server Technology PRO2 Switched PDU STV-4511K - Master - power distribution unit (rack-mountable) - AC 230 V - 7.3 kW - 3-phase - Ethernet 10/100, RS-232 - input: 2-pole + PE - output connectors: 48 (power IEC 60320 C13)
-
Temperature/humidity monitoring
PRO2 Master unit supports two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
-
Branch current monitoring
PRO2 monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit.
-
High retention locking outlets
PRO2 receptacles have high retention and are compatible with P-Lock type power cords.
-
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
Branch circuit protection
PRO2 meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
-
High temperature rating
This product has been approved for safe and reliable operation in 60°C (140°F) data center environments.
-
Star multi-linking
PRO2 provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
The Server Technology PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements, are accessible through the built-in Web and CLI interfaces as well as through SNMP.
- Temperature/humidity monitoring
- Branch current monitoring
- High retention locking outlets
- Auto-flip current display
- Branch circuit protection
- High temperature rating
- Star multi-linking
