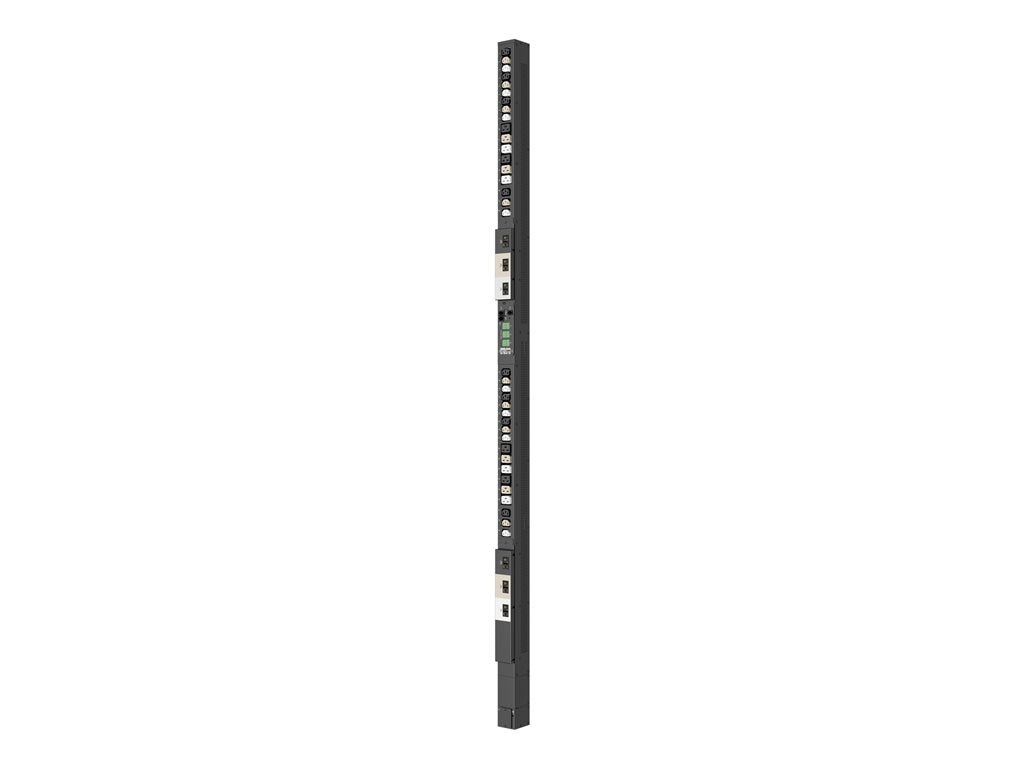

Server Technology PRO2 Switched PDU C2W36CE-DFME2M66 - Power distribution unit (rack-mountable) - AC 208 V - 14.4 kW - 3-phase 4 Wire delta - Ethernet 10/100, RS-232 - input: CS8365 - output connectors: 36 (24 x IEC 60320 C13 12A, 12 x IEC 60320 C19 16A) - 0U
-
Network monitoring
Gain access to valuable data through connections, including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
Per-Inlet Power Sensing
Meets ANSI C12.1 for billing-grade accuracy of current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
-
Branch current monitoring
PRO2 monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit.
-
Branch circuit protection
This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
-
High temperature rating
This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
The Server Technology PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP.
- Network monitoring
- Auto-flip current display
- Per-Inlet Power Sensing
- Branch current monitoring
- Branch circuit protection
- High temperature rating
