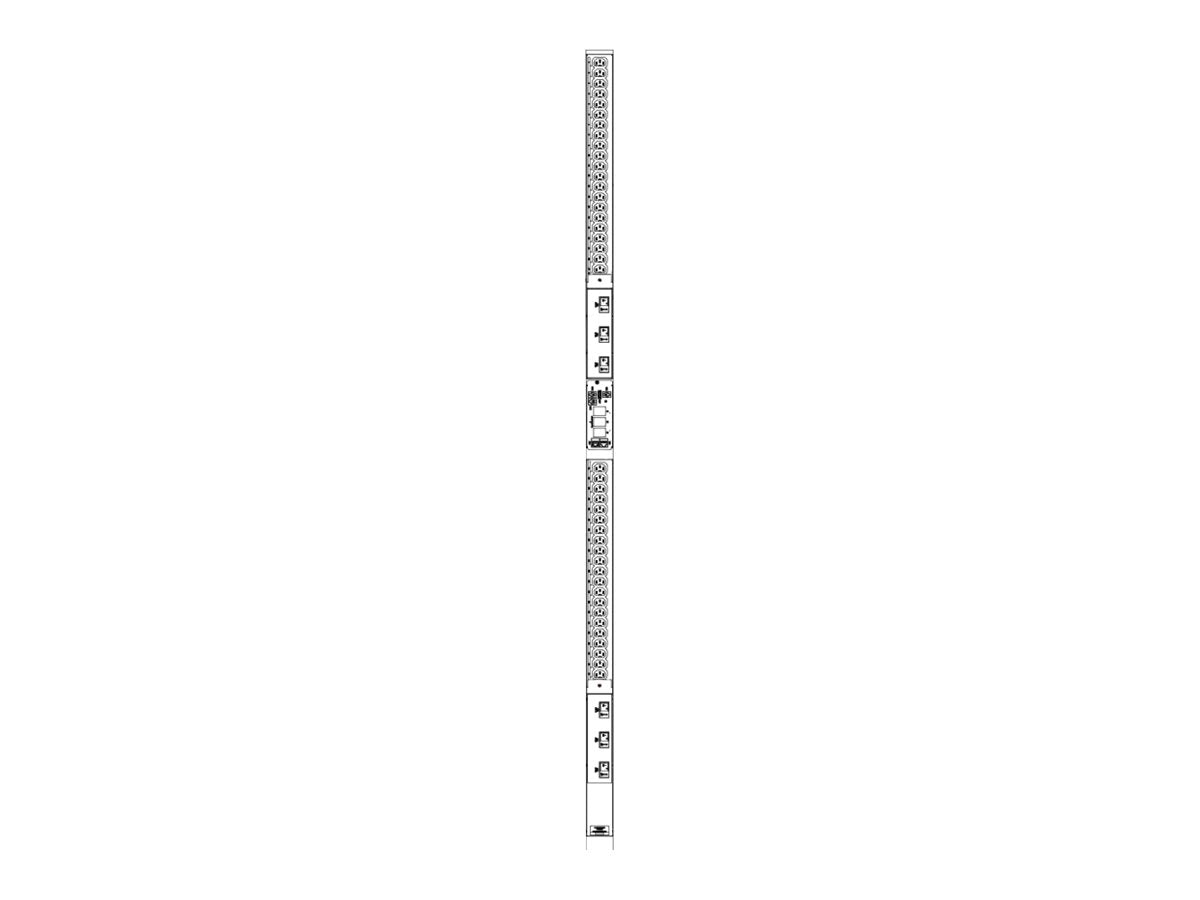

Server Technology PRO2 Smart PDU C2S36TE-4PAE2M99 - Master - power distribution unit (rack-mountable) - AC 400 V - 22 kW - 3-phase - Ethernet 10/100, RS-232 - input: IEC 60309 3P+N+PE - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
-
HDOT Cx
Cx is the future ready UL tested hybrid of the C13 and C19 outlets accommodating both C20 and C14 plugs.
-
Hot - swap network card
Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
-
Temperature/humidity monitoring
Master and Link units each support two external 10' (3 m) T/H probes. Receive SNMP-based alerts and email notifications.
-
Per - Inlet Power Sensing
Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
-
Branch circuit protection
This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL48 9 rated magnetic-hydraulic circuit breakers or UL248 fuses.
-
High temperature rating
This pro duct has been tested and approved for safe and reliable operation in 60°C data center environments.
-
Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-23 2 serial, and more.
-
Star multi - linking
Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
-
Auto - flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
Branch current monitoring
PRO2 monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit.
-
Alternating - phase outlets
3 -phase power is wired in an alternating fashion per outlet for simplified load balancing, reduced cord lengths, and better airflow.
-
Flexible mounting
Includes standard button mounts along with provisions for custom mounting brackets.
The Server Technology PRO2 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Smart "Master" PDU can be connected to as many as three (with optional module) PRO2 Smart "Link"PDU to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
