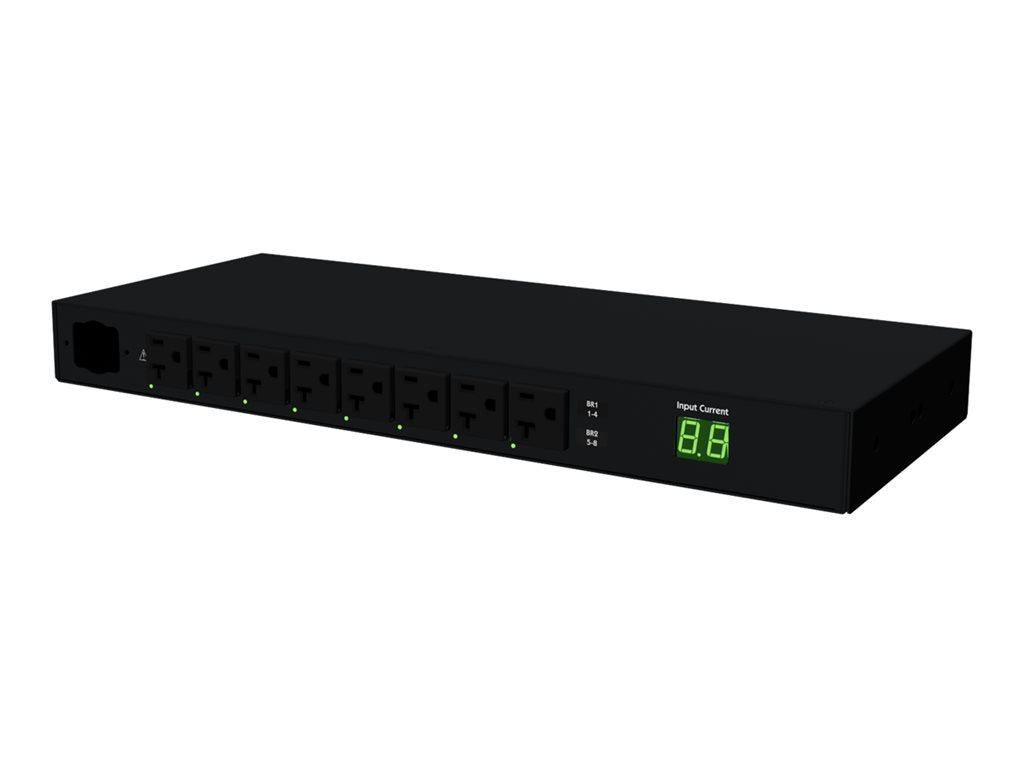

Server Technology PRO1 Switched PDU C1X08HC-1ACA2BA5 - Link - power distribution unit (rack-mountable) - AC 120 V - 1.9 kW - Ethernet 10/100, RS-232 - input: IEC 60320 C20 - output connectors: 8 (NEMA 5-20R) - 1U
-
Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Star multi-linking
Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
-
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
High retention locking outlets
Receptacles have high retention and are compatible with PLock type power cords.
-
Hot-swap network card
Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
-
Temperature/humidity monitoring
Master and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
-
Outlet control
On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers.
-
High temperature rating
This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
The Server Technology PRO1 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements, are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master"PDU can be connected to as many as three PRO1 Switched "Link"PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
- Network monitoring
- Star multi-linking
- Auto-flip current display
- High retention locking outlets
- Hot-swap network card
- Temperature/humidity monitoring
- Outlet control
- High temperature rating
