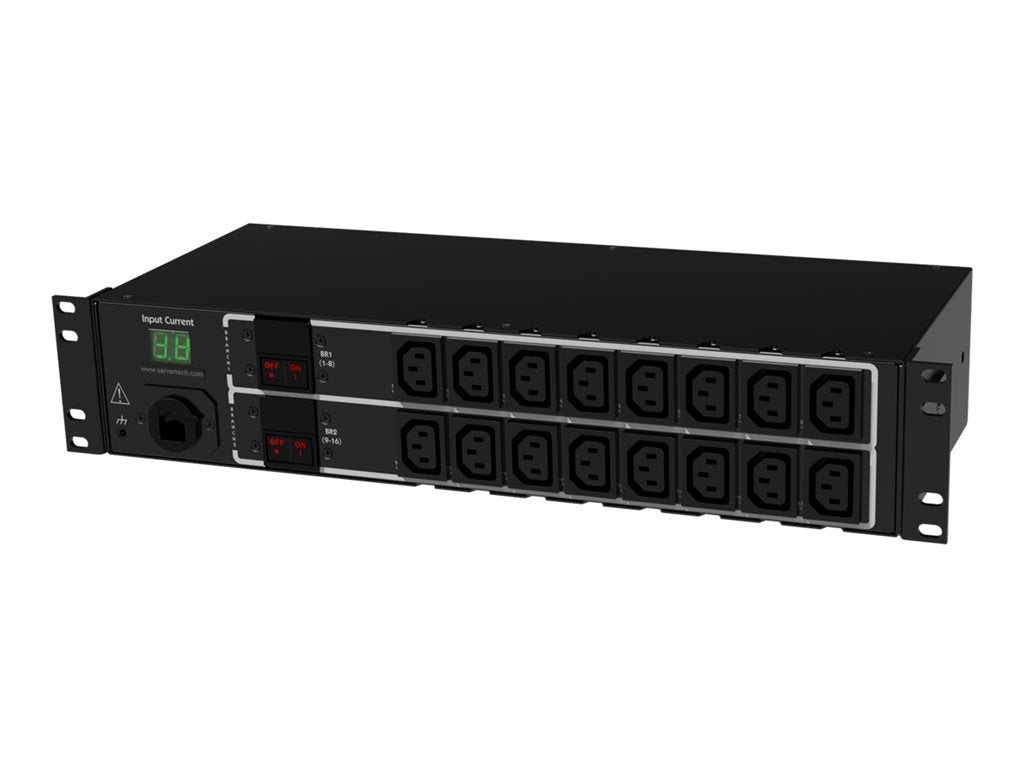

Server Technology PRO1 Switched PDU C1W16HR-0AAA5BAC - Master - power distribution unit (rack-mountable) - AC 208 V - 3.3 kW - Ethernet 10/100, RS-232 - input: IEC 60320 C20 - output connectors: 16 (power IEC 60320 C13) - 2U
-
Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Hot-swap network card
Network access is ensured when power is lost to the master unit with backup power provided by the primary link unit.
-
Star multi-linking
Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
-
Temperature/humidity monitoring
Master and link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
-
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
Per-inlet power sensing
Meets ANSI C12.1 for billing-grade accuracy of current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
-
High-retention locking outlets
Receptacles have high retention and are compatible with P-Lock type power cords.
-
High temperature rating
This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
The Server Technology PRO1 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input.
- Network monitoring
- Hot-swap network card
- Star multi-linking
- Temperature/humidity monitoring
- Auto-flip current display
- Per-inlet power sensing
- High-retention locking outlets
- High temperature rating
