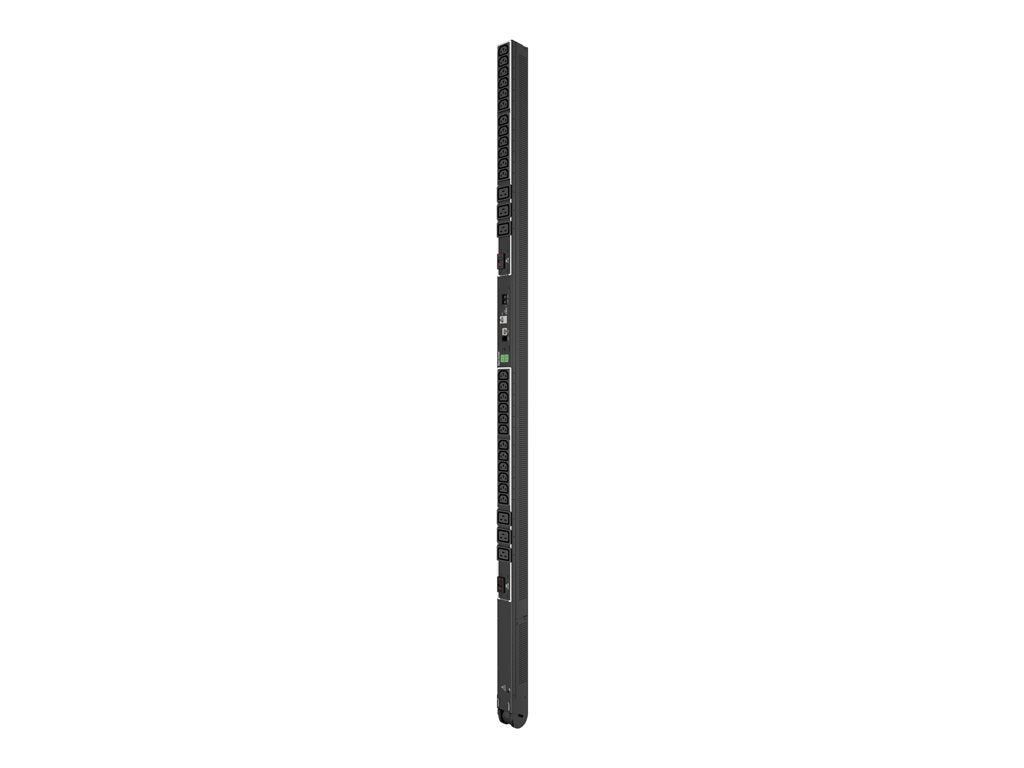

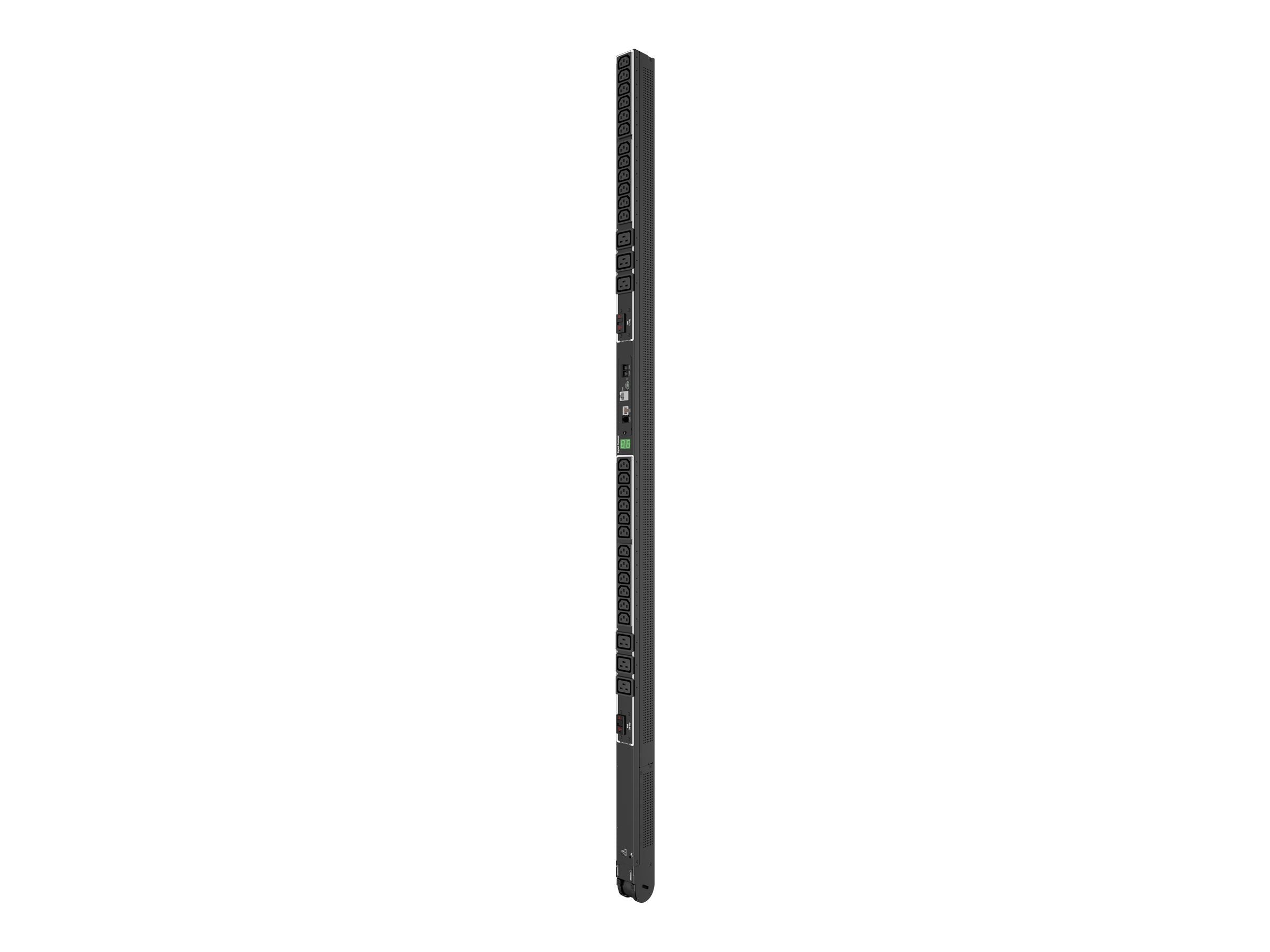

Server Technology PRO1 Smart PDU STV-3531C - Master - power distribution unit (rack-mountable) - AC 208 V - 5 kW - Ethernet 10/100, RS-232 - input: NEMA L6-30P - output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13)
-
Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, SFTP, RS-232 serial, and more.
-
Hot-swap network card
Network access is ensured when power is lost to the "Master" unit with backup power provided by the primary link unit.
-
Star multi-linking
It provides the ability to link multiple power circuits using one IP address. Primary link provides backup power to network card.
-
Temperature/humidity monitoring
"Master" unit supports two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
-
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
Per-inlet power sensing
PIPS includes voltage, active power, apparent power, power factor, and energy.
-
High retention locking outlets
Receptacles have high retention and are compatible with PLock type power cords.
-
Power pivot
The 90 degree rotatable power cord allows for standardized deployment at any facility no matter where power must be routed.
The Server Technology PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements, are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Smart "Master" PDU can be connected to multiple PRO1 Smart "Link" PDU to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
- Network monitoring
- Hot-swap network card
- Star multi-linking
- Temperature/humidity monitoring
- Auto-flip current display
- Per-inlet power sensing
- High retention locking outlets
- Power pivot
- Flexible mounting
- Branch circuit protection
- High temperature rating
