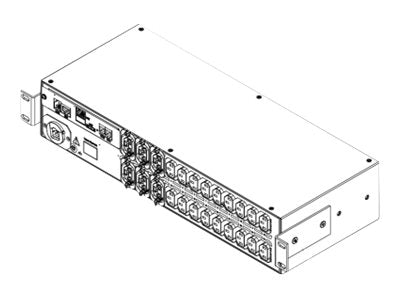

Server Technology PRO1 Smart PDU C1S24SP-0AAA4A6 - Primary - power distribution unit (rack-mountable) - AC 208 V - 3.3 kW - Ethernet 10/100/1000, RS-232 - input: IEC 60320 C20 - output connectors: 24 (18 x IEC 60320 C13, 6 x IEC 60320 Cx)
-
Robust design
The Server Technology PRO1 Smart PDU features a rack-mountable form factor, allowing for easy integration in data center environments while maintaining optimal space allocation.
-
Comprehensive monitoring capabilities
This unit includes an array of meters such as current, energy, and voltage meters, enabling detailed power management and monitoring for improved operational efficiency.
-
Versatile connectivity
With 24 output connectors, including 18 power IEC 60320 C13 and 6 power IEC 60320 Cx, this PDU facilitates diverse equipment connections to support various needs.
-
Enhanced remote management
Equipped with multiple remote management protocols including HTTPS and CLI, this Smart PDU allows for comprehensive monitoring and control from any location, improving operational flexibility.
-
Safety and compliance
The Server Technology PRO1 Smart PDU adheres to stringent safety standards such as UL 60950-1 and RoHS, ensuring reliability in power distribution.
The Server Technology PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Smart "Primary"PDU can be connected to as many as three (with optional module) PRO1 Smart "Link"PDU to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
- Supports 24 outputs for flexible equipment connections
- Remote management via multiple protocols for user convenience
- Rack-mountable design for space-efficient deployment
- Operates within a wide temperature range for versatile use
- Compliant with various international safety standards
