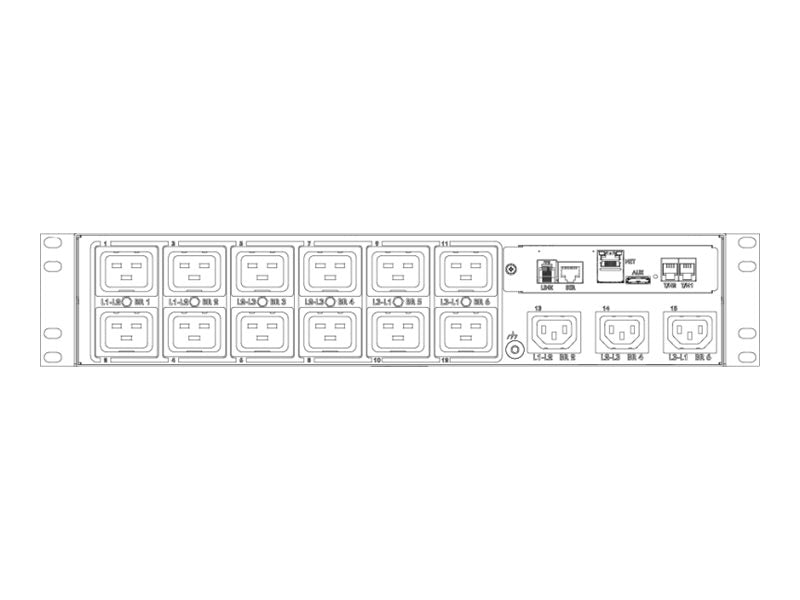

Server Technology PRO1 Smart PDU C1S15HN-YQJN5BC3-013 - Power distribution unit (rack-mountable) - Primary - AC 208 V - 17.3 kW - 3-phase WYE (star) - Ethernet 10/100, RS-232 - input: IEC 60309 3P+N+G - output connectors: 15 (12 x IEC 60320 C19, 3 x IEC 60320 C13)
-
Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Temperature and humidity monitoring
Primary and Expansion units each support two external 10" (3m) T/H probes. Receive SNMP-based alerts and email notifications.
-
Hot-swap network card
Network access is ensured when power is lost to the primary unit with backup power provided by the Linked unit.
-
Branch circuit protection
This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.
-
Star multi-linking
PRO2 provides the ability to link up to four power circuits using one IP address. Primary Expansion PDU provides backup power to network card.
-
Auto-flip currenct display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
High retention locking outlets
PRO receptacles have high retention and are compatible with P-Lock type power cords.
The Server Technology PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements, are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Smart "Primary" PDU can be connected to as many as three PRO1 Smart "Link" PDU to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
- Network monitoring
- Temperature and humidity monitoring
- Per-inlet power sensing
- Hot-swap network card
- IP acces, security and communications
- Branch circuit protection
- Star multi-linking
- Auto-flip currenct display
- High retention locking outlets
