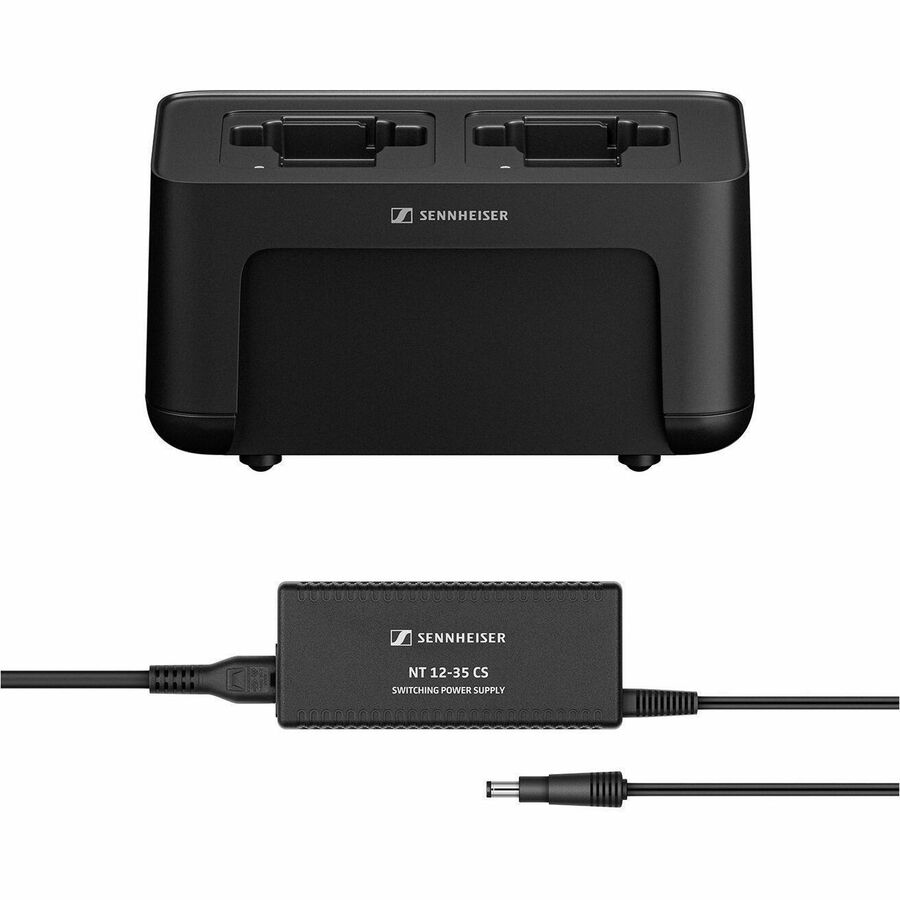

Sennheiser Cradle - Battery, Wireless Bodypack Microphone Transmitter - 2 Slot - Charging Capability
ARCHITECT'S SPECIFICATION:
The charger shall be network-enabled and shall be capable of simultaneously charging up to two handheld and/or bodypack transmitters of the Sennheiser EW-DX series. A colored LED at each charging bay shall indicate charge status.
The charger shall have an RJ-45 network socket and shall support the Media Control Protocol to provide for remote control and status monitoring via the Sennheiser Control Cockpit software or a media control system.
The charger shall operate on 12 V DC input voltage supplied from an external power supply unit. The input current shall be maximum 1 A. Charging voltage shall be 4.35 V, charging current shall be max. 860 mA per charging bay. The charger shall also operate on Power over Ethernet (PoE IEEE 802.3af Class 0).
Charging time for full charge shall be approximately 3.5 hours. Operating temperature shall range from -10 °C to 50 °C (14 °F to 122 °F). Dimensions shall be 200 x 104 x 116 mm (7.9" x 4.1"
- Sennheiser BA 70 Rechargeable Battery Pack
Sennheiser Wireless Bodypack Microphone Systems:
