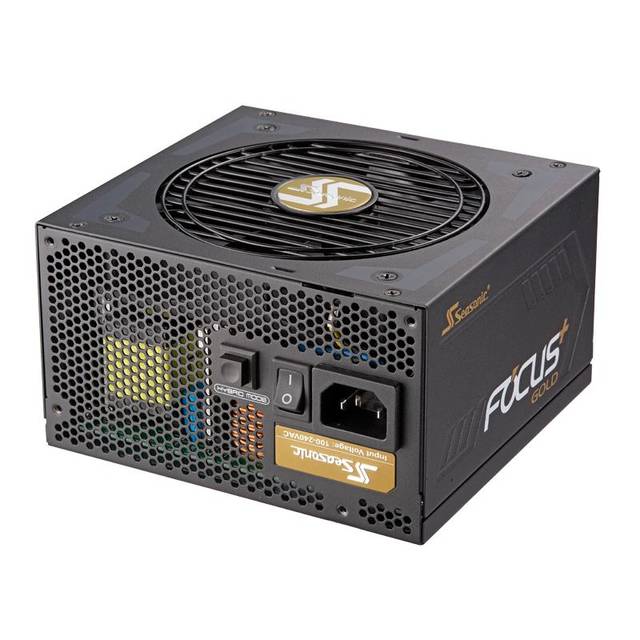

Mfr Part Number: SSR-650FX
-
Features:
- 80 PLUS Gold
- Compact Size
- Fluid Dynamic Fan Bearing

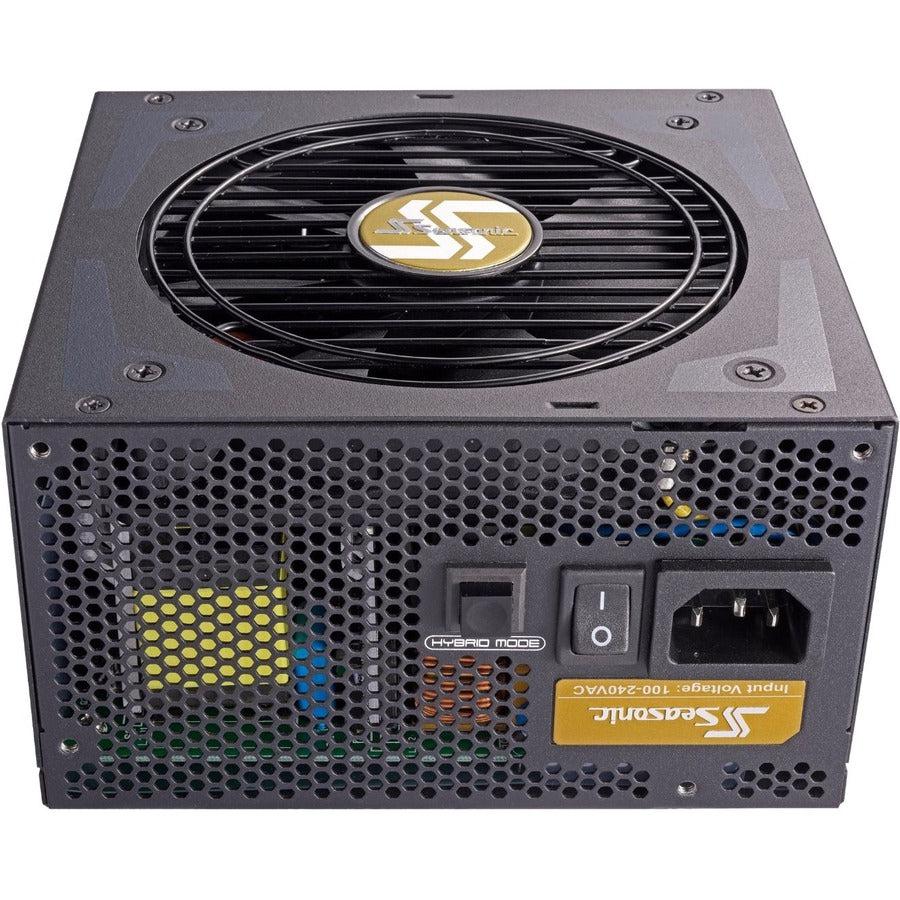

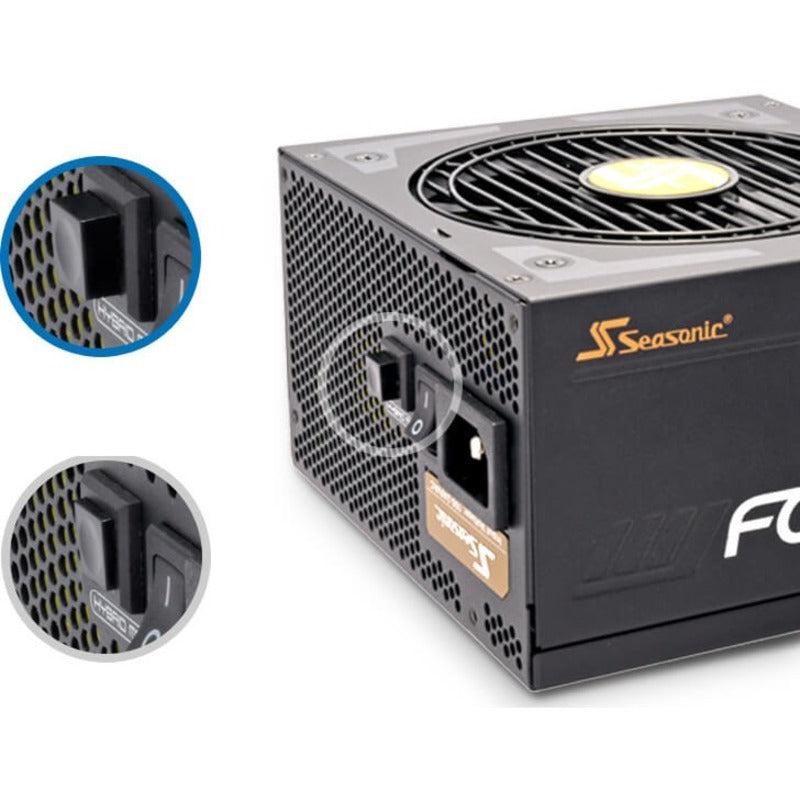

- Hybrid Silent fan Control
- Tight Voltage Regulation
- Cable-free Connection Design
- 10 Years Warranty
-
Type: Intel ATX12V
-
Total Power: 650W
-

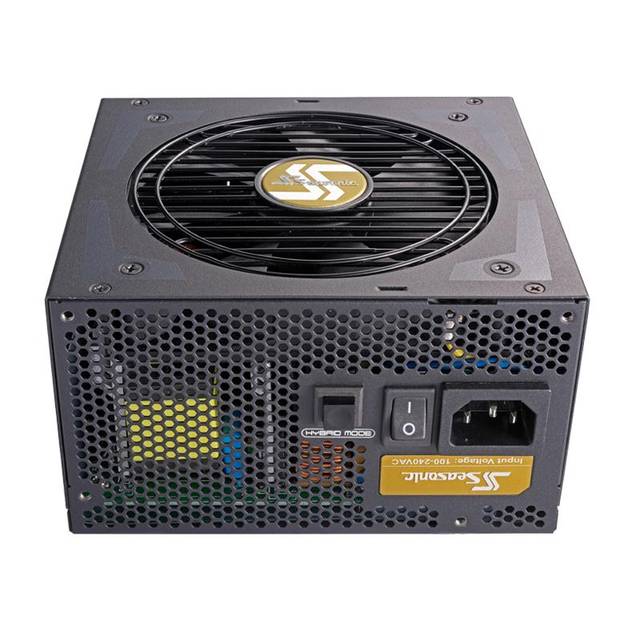

Input:
-
Voltage: 100 - 240V
-
Current: 9- 4.5 A
-
Frequency: 50 - 60Hz
-
MTBF: 100,000 hours (@ 25 C, excl. fan)
-
Output: +3.3V @ 20A, +5V @ 20A, +12V @ 54A, -12V @ 0.3A, +5Vsb @ 3A
-

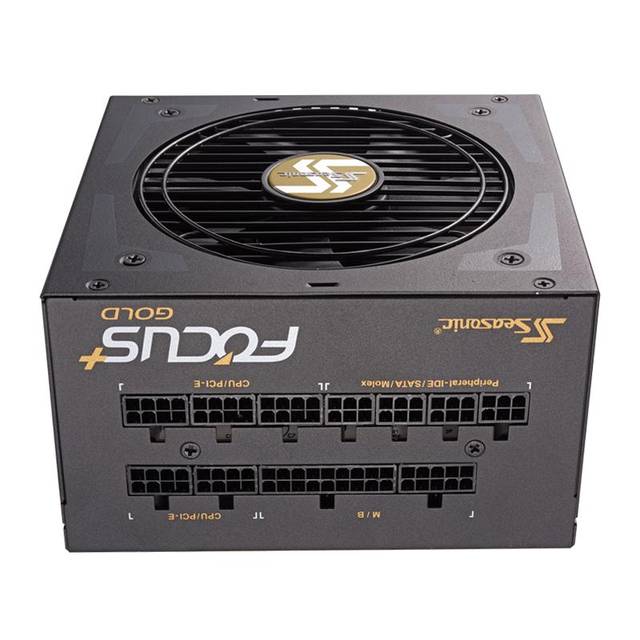

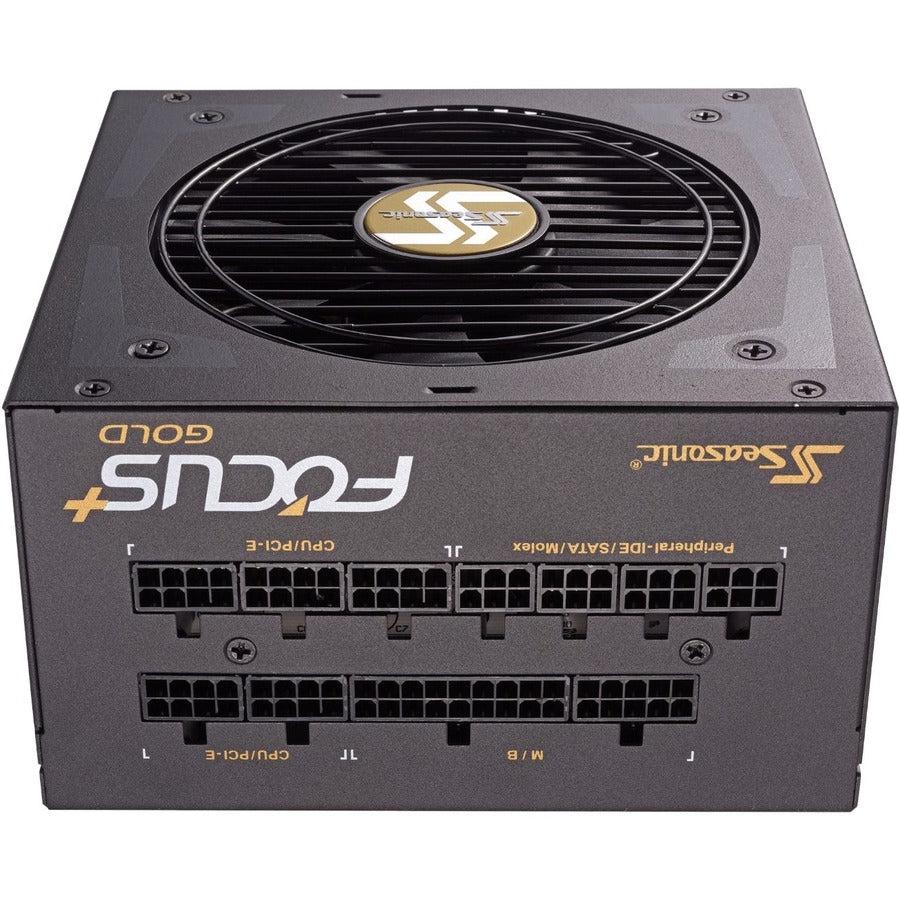

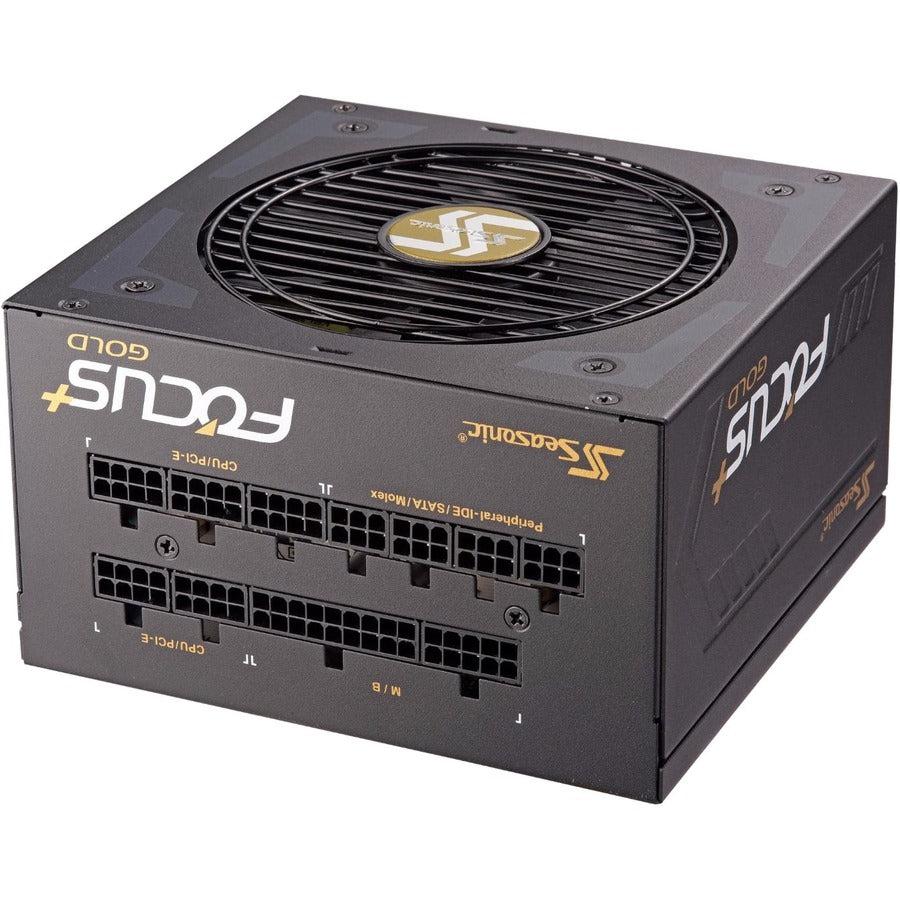

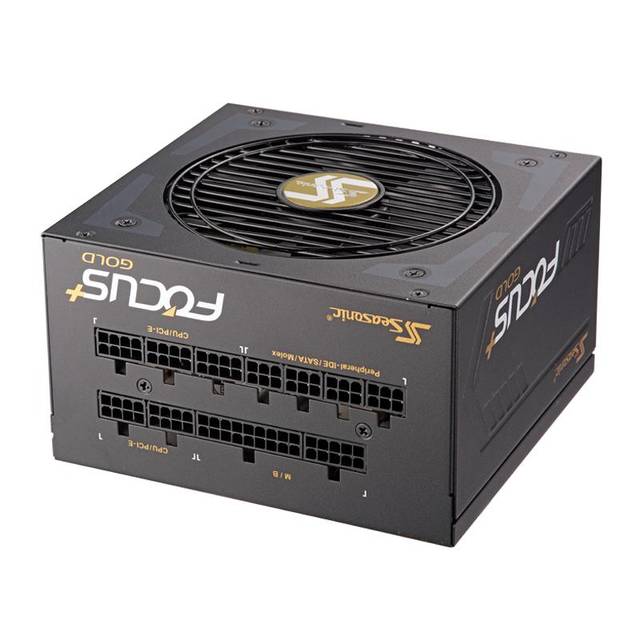

Connectors: 1x 20/24-pin Main Power Connector; 1x 4/8-pin CPU Connector, 4x 6/8-pin PCI-Express Connectors, 8x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
-

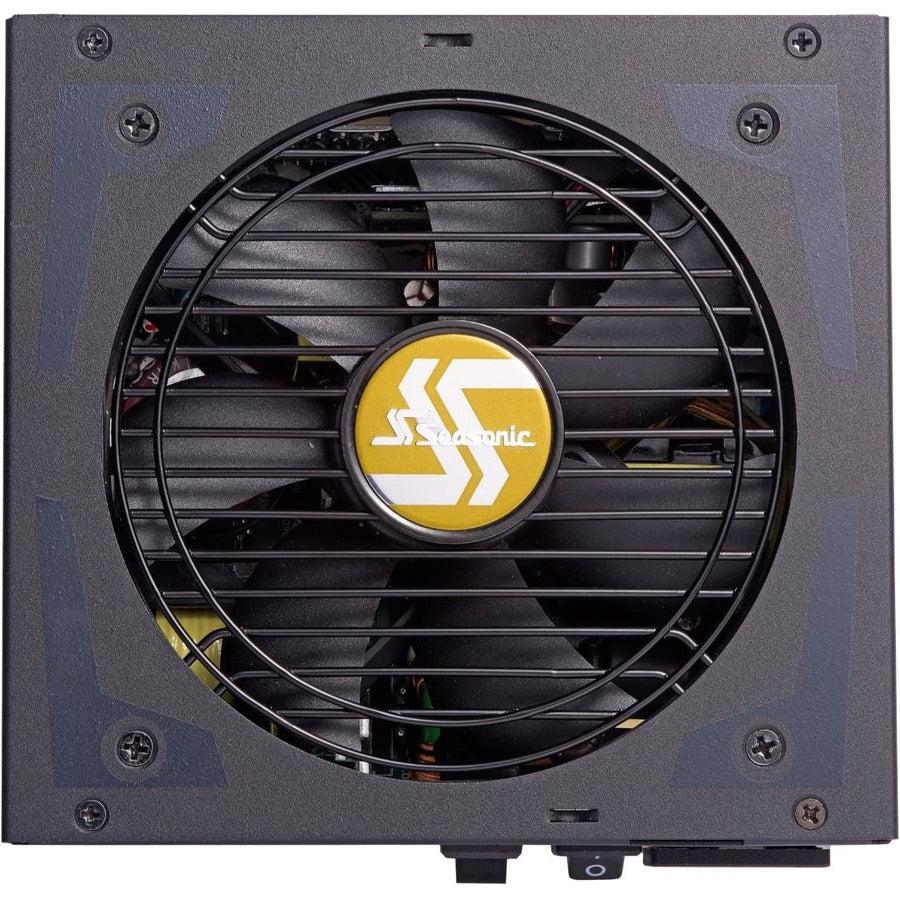

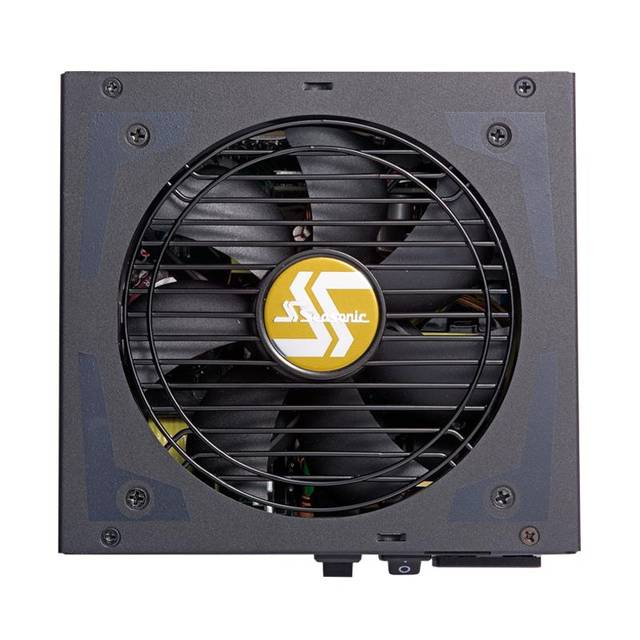

Cooling System: 120mm Fluid Dynamic Bearing Fan
-
Protection: OPP, OVP, UVP, OCP, OTP, SCP
-
Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
-
Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
-
Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
