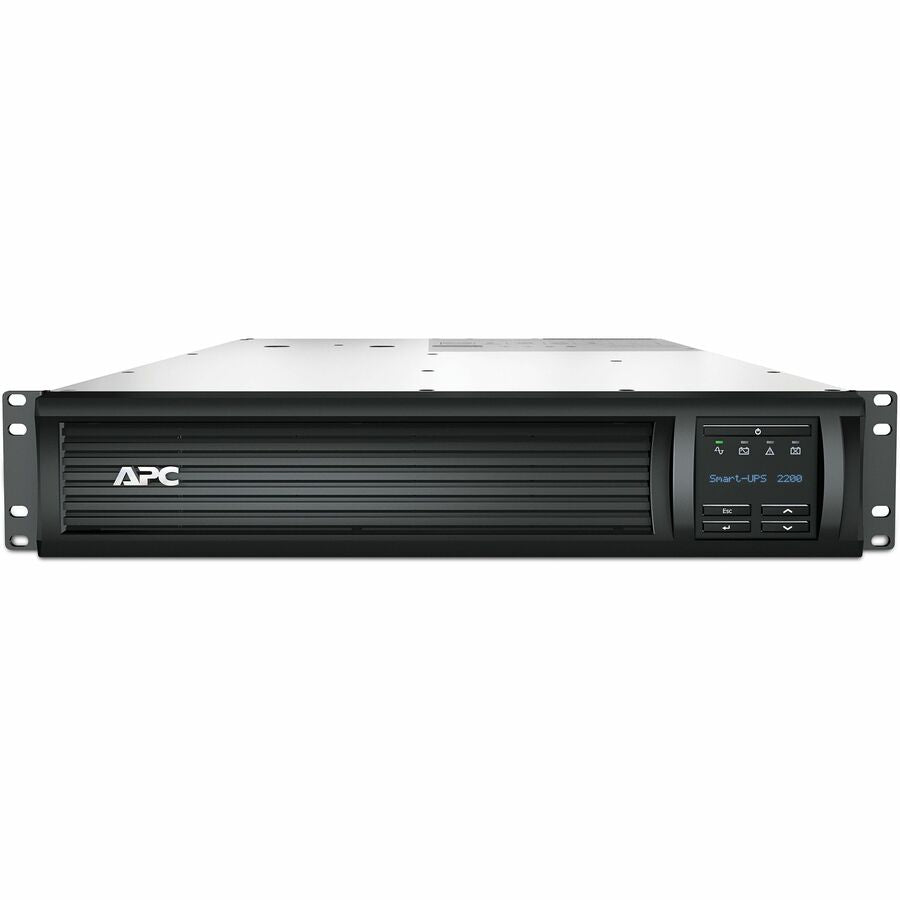

This APC Smart-UPS 2200VA rack mount is perfect for small to medium businesses, server rooms, and network closets that need reliable line interactive UPS protection with advanced monitoring capabilities. Our SMT2200R2X167 delivers:
-
2200VA/1980W power capacity with efficient line interactive topology for cost-effective protection
-
Intelligent LCD display providing real-time status monitoring and configuration options
-
SmartSlot compatibility for advanced network management and remote monitoring
-
Auto voltage sensing with 120V/230V flexibility for global deployment
Key Features
-
Line interactive topology with automatic voltage regulation for efficient power conditioning
-
LCD display with navigation showing comprehensive UPS status and measurements
- Advanced SmartSlot interface for network management card integration
- Consistent auto voltage sensing supporting both 120V and 230V input voltages
-
10x NEMA 5-15R outlets providing flexible power distribution for connected equipment
Technical Specifications
| Manufacturer |
Schneider Electric SA (APC) |
| Model Number |
SMT2200R2X167 |
| Type |
Line Interactive Rack Mount UPS |
| Power Capacity |
2200VA / 1980W |
| Form Factor |
2U rack mountable |
| Input Voltage |
Auto-sensing 120V/230V |
| Outlets |
10x NEMA 5-15R |
| Display |
LCD with status indicators and navigation |
| Management |
SmartSlot for network management cards |
| Technology |
Line interactive with AVR (Automatic Voltage Regulation) |
| Battery |
Sealed Lead Acid, user-replaceable |
| Compatible Systems |
Servers, network equipment, workstations, storage devices |
Frequently Asked Questions
Q: What makes this line interactive UPS different from standby UPS systems?
A: The APC Smart-UPS line interactive technology provides continuous voltage regulation and power conditioning, automatically correcting voltage fluctuations without switching to battery power, extending battery life and providing superior protection.
Q: How does the SmartSlot enhance UPS management capabilities?
A: The SmartSlot interface accepts optional network management cards, enabling SNMP monitoring, email alerts, remote shutdown, and web-based configuration for comprehensive networkable UPS management in enterprise environments.
Q: Can this 2200VA UPS handle multiple servers in a rack?
A: Yes, with 2200VA/1980W capacity and 10 NEMA outlets, this rack mount UPS can protect multiple 1U/2U servers, network switches, and storage devices while providing server rack battery backup for extended runtime.
Q: What does auto voltage sensing mean for deployment flexibility?
A: Auto voltage sensing allows the UPS to automatically detect and adapt to either 120V or 230V input power, making it suitable for global deployments and mixed voltage environments without manual configuration.
