Name: Schaefer Series 5 Flat Base Cheek Block - Stainless Steel Cheeks
Brand: Schaefer Marine
SKU: 74727-cwr
Price: 199.00 CAD
Availability: InStock

Schaefer Series 5 Flat Base Cheek Block - Stainless Steel Cheeks

Roll over image to zoom in Click on image to zoom

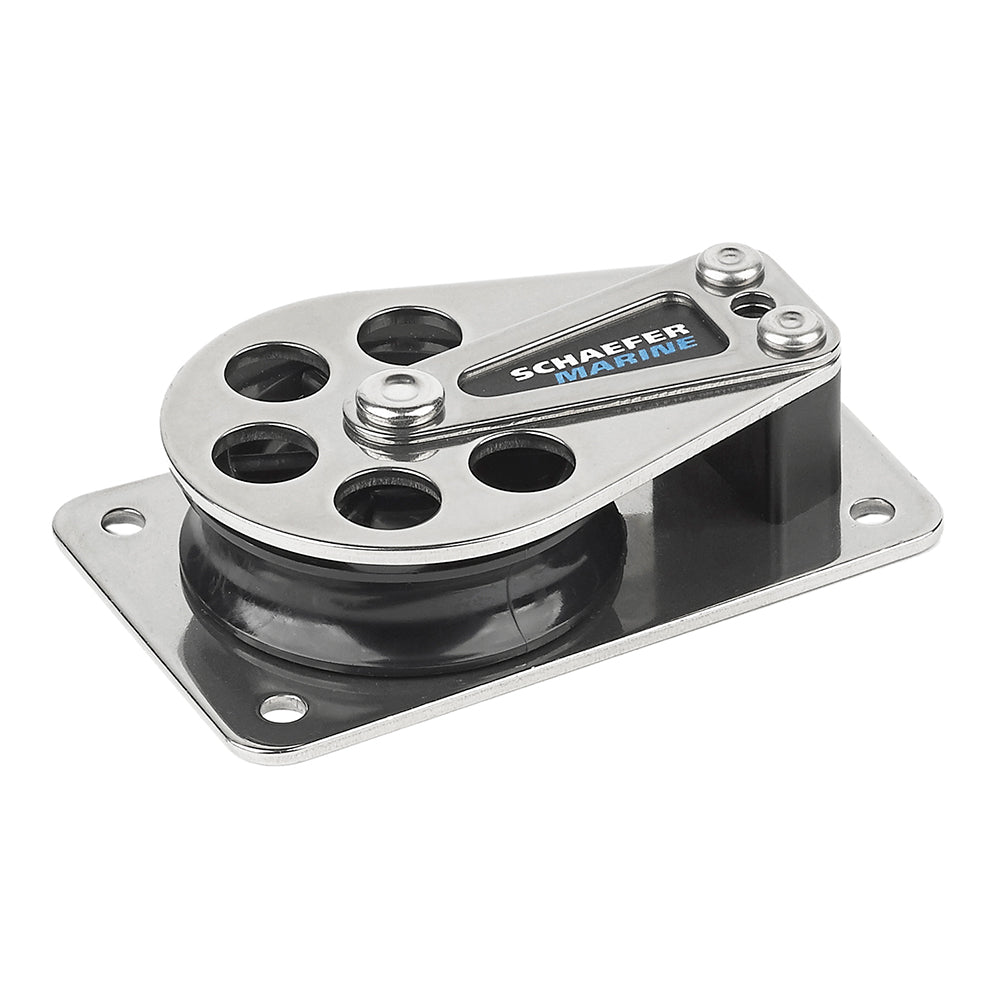

Series 5 Flat Base Cheek Block - Stainless Steel Cheeks

Series 5 Cheek Block with Stainless Steel cheek. Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

Sheave Diameter 2" (51 mm)
Max. Line 7/16" (11 mm)
Length 3-5/8" (92 mm)
Width 2-7/32" (57 mm)
Height 7/8" (22 mm)
Fasteners (4) #10 - RH (5 mm)
C/C 3" (76 mm)
SWL 1750 lbs. (795 kg)
Weight 6.9 oz. (196 g)
Max Line 7/16" (11mm)

Manufacturer Part Number: 505-11

General Information

Manufacturer	Schaefer Marine
Manufacturer Part Number	505-11
Product Type	Sailing \| Blocks
UPC	740507011962

Canada: Prices in CAD. Ships nationwide in 2–5 business days. GST/HST/PST calculated at checkout. Shipping policy.

Schaefer Series 5 Flat Base Cheek Block - Stainless Steel Cheeks

Description

Schaefer Series 5 Flat Base Cheek Block - Stainless Steel Cheeks
