Name: Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave
Brand: Schaefer Marine
SKU: 74716-cwr
Price: 176.00 CAD
Availability: InStock

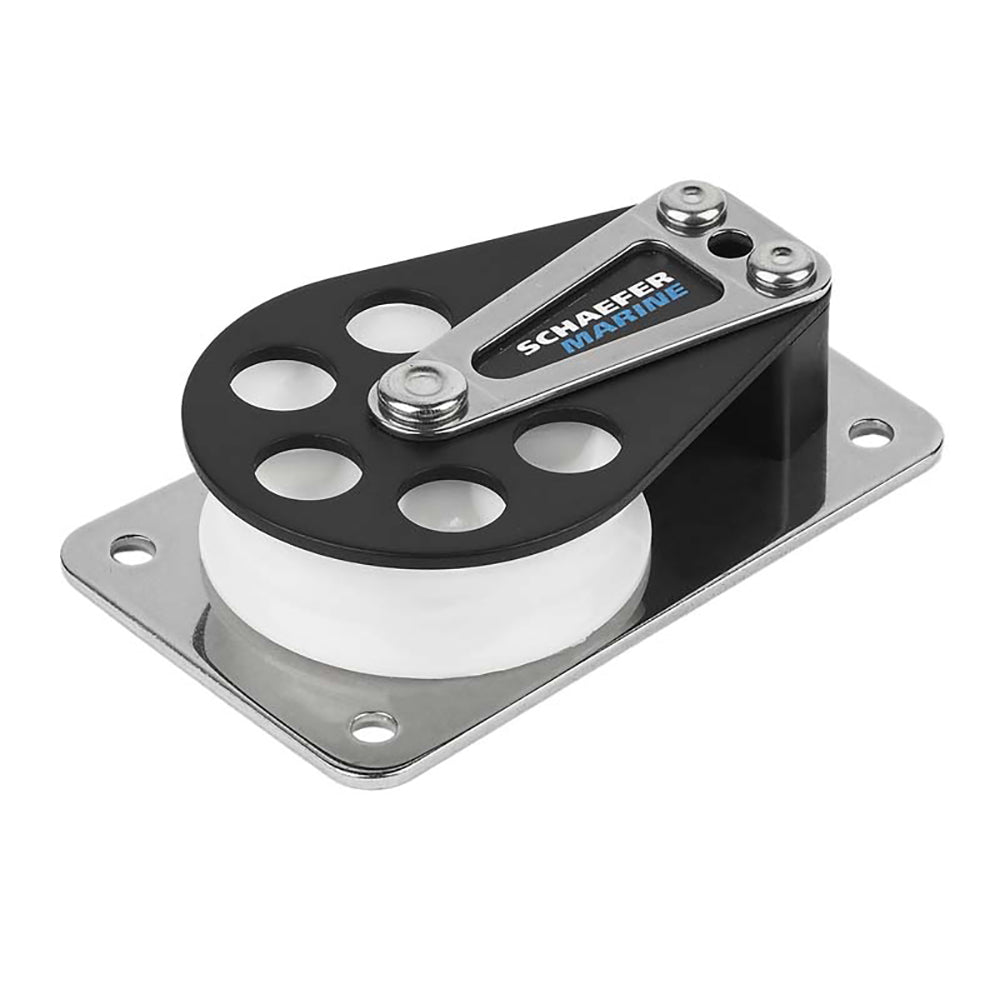

Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave

Roll over image to zoom in Click on image to zoom

Series 5 Flat Base/Alum Cheek/Delrin Sheave

Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

Sheave Diameter 2" (51 mm)
Max. Line 7/16" (11 mm)
Length 3-5/8" (92 mm)
Width 2-7/32" (57 mm)
Height 7/8" (22 mm)
Fasteners (4) #10 RH (5 mm)
C/C 3" (76 mm)
SWL 1750 lbs. (795 kg)
Weight 5.9 oz. (167g)
Max. Line 7/16" (11mm)

Manufacturer Part Number: 504-11

General Information

Manufacturer	Schaefer Marine
Manufacturer Part Number	504-11
Product Type	Sailing \| Blocks
UPC	740507011634
