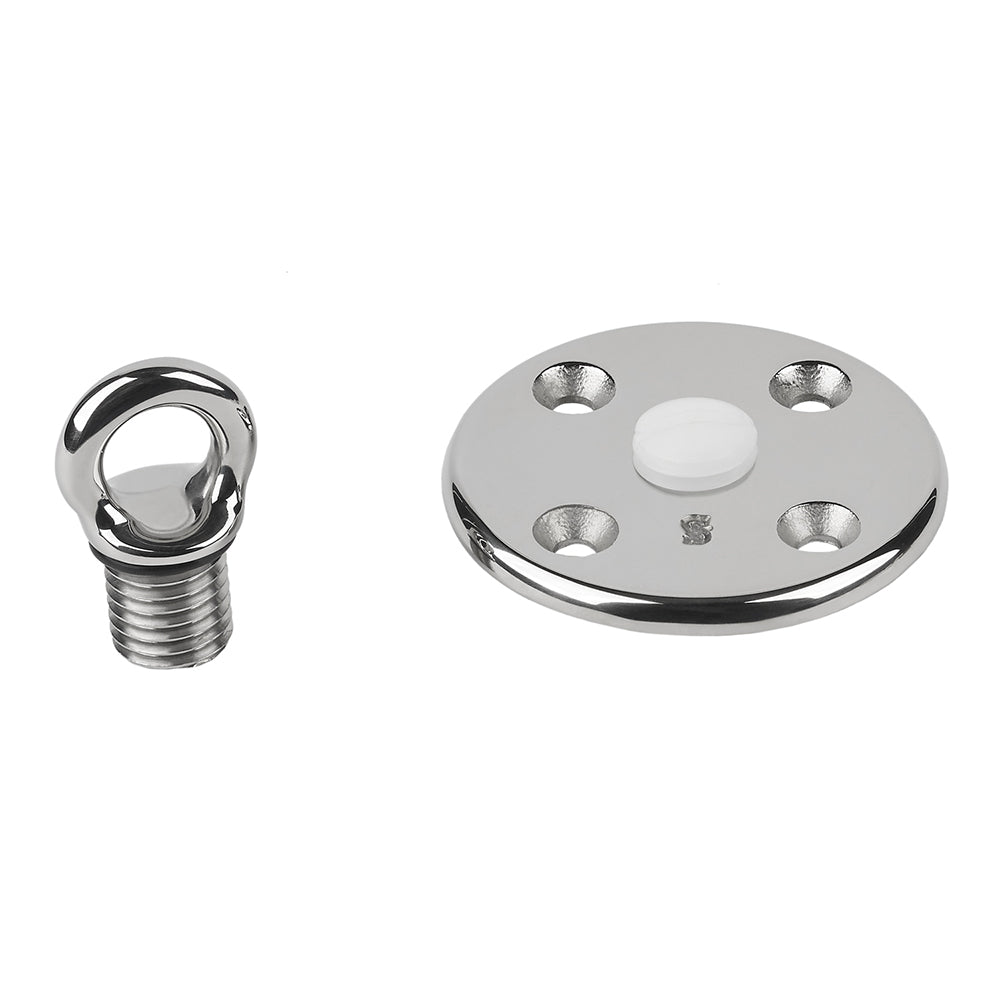

Schaefer Removable Eye Deck Plate/Assembly

Roll over image to zoom in Click on image to zoom

Schaefer Removable Eye Deck Plate/Assembly

Removable Eye Deck Plate/Assembly

Specifications:

Eye Width 5/8" (16 mm)
Eye Height 5/8" (16 mm)
Eye Stock 1/4" (6 mm)
Length 3" (76 mm)
Width 3" (76 mm)
Fasteners (4), 1/4" FH (6 mm)
C/C A 2" (51 mm)
C/C B 2" (51 mm)
SWL 2250 lbs. (1020 kg)
Weight 9.5 oz. (269 g)
Deck plate hole is 3/4"-10

Manufacturer Part Number: 78-83

General Information

Manufacturer	Schaefer Marine
Manufacturer Part Number	78-83
Product Type	Sailing \| Hardware
UPC	740507008030
