DS-H6-BLK Horizontal Cable Seal - Grey
This horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna and navigation light cables. A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.
Features:
- Watertight installation - 100% waterproof with an IPX68 rating
- Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
- No Need to Remove Cable Connectors - split-seal option does not require connector removal during install.
- The low-profile construction is impact resistant and provides extra protection from water.
Technical Specifications:
- Fits cable size (diameter) - .08" to .24" (2 - 6 mm)
- Height - .79" (20 mm)
- Width - 1.12" (28.5 mm)
- Color - Grey
- Orientation - Horizontal
- Material - Stainless Steel

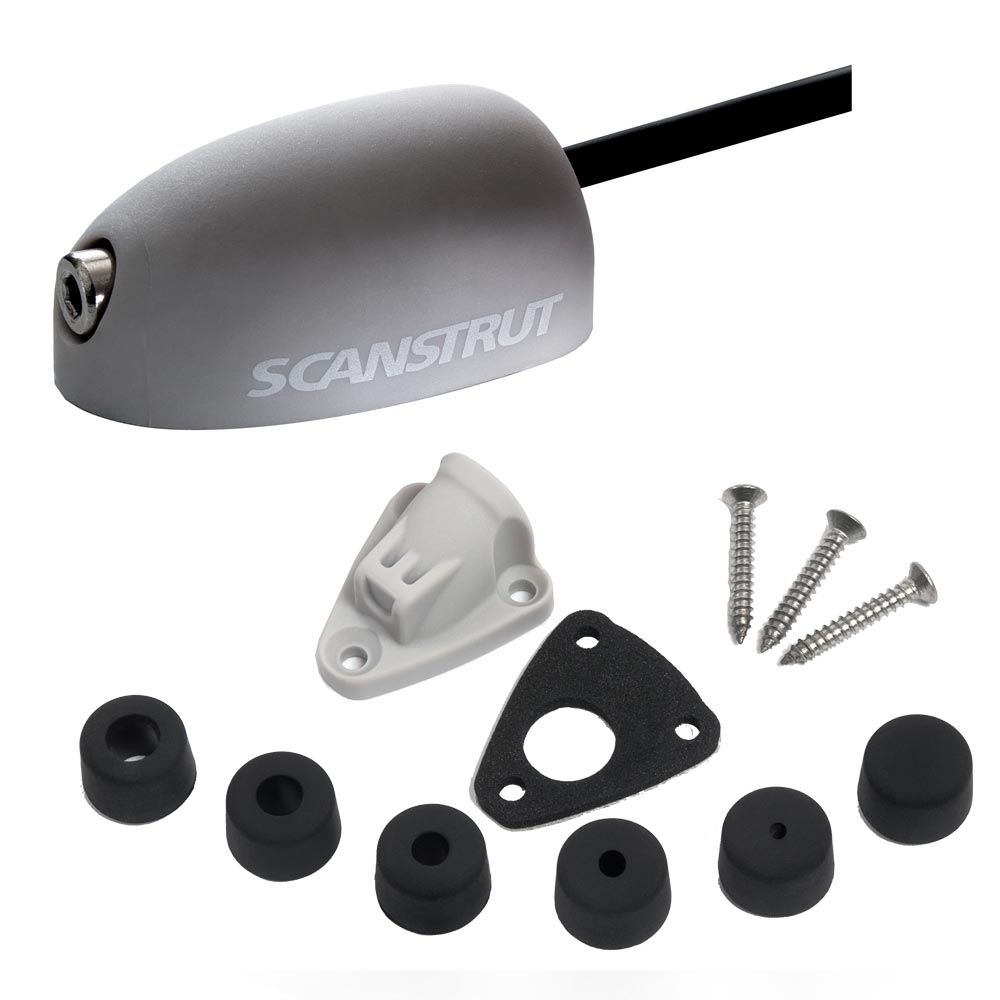

In the Box:
- Cable seal
- Mounting hardware
- Installation manual
*Sold as an Individua
