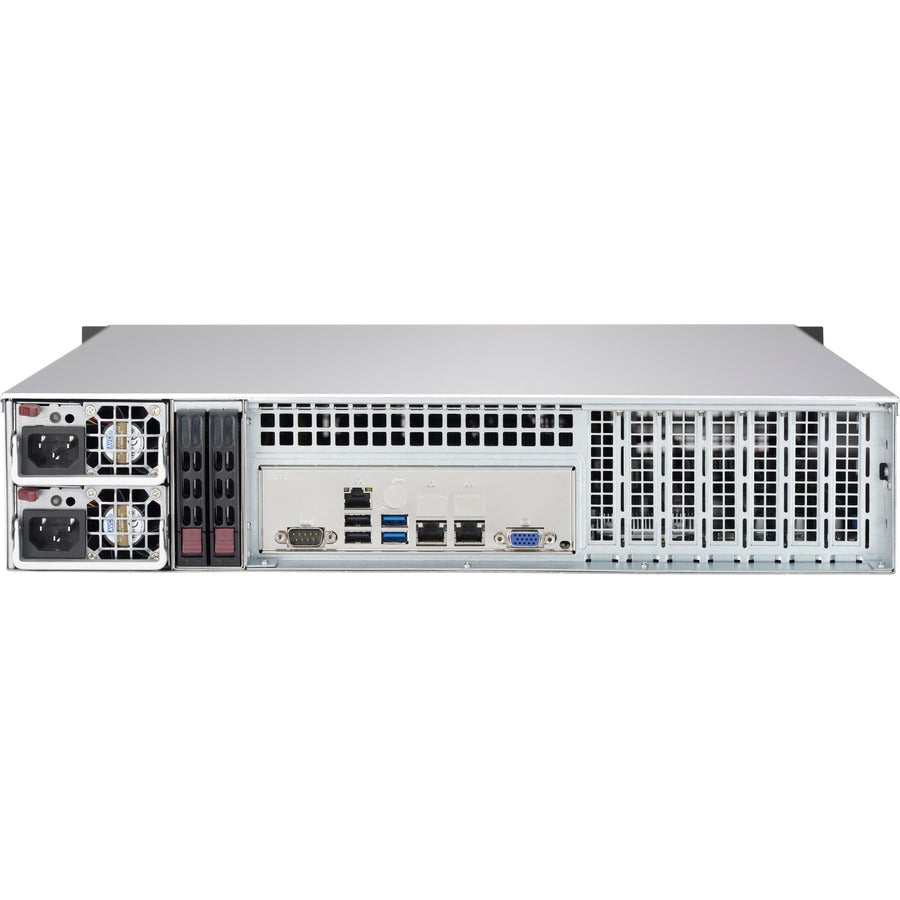

Supermicro SuperChassis 825MBTQC-R802LPB
- 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
- 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO, optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
- 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
- 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
- 7 low-profile expansion slot(s)
- 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
- Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Product Type: Computer Case
Compatible Rack Unit: 2U
Product Color: Black
Brand Name: Supermicro
Form Factor: Rack-mountable
Manufacturer: Supermicro Computer, Inc
Product Model: 825MBTQC-R802LPB
Product Name: SuperChassis 825MBTQC-R802LPB
Product Line: SuperChassis
Manufacturer Part Number: CSE-825MBTQC-R802LPB
Manufacturer Website Address: http://www.supermicro.com
Package Contents:
- SuperChassis 825MBTQC-R802LPB
- 1 x SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB
- 1 x 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
- 1 x Round 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
- 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 1 x Black DVD dummy cover for SC825M
- 4 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
- 1 x Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
- 1 x Fan Tray for Five 4056 Fans, for 825M
- 1 x Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
- 3 x Black gen 5.5 hot-swap 3.5"; HDD tray
- 1 x HDD cage housing 3 trays for SC825M
- 1 x SC825 24PIN REDUNDANT POWER DISTRIBUTOR
- 2 x 1U 800W 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc
- 1 x Set Rail set, quick/quick, default for 2,3U 17.2";W
- 1 x 216B/826B LP rear window,RoHS/REACH,PBF
Limited Warranty: 3 Year
