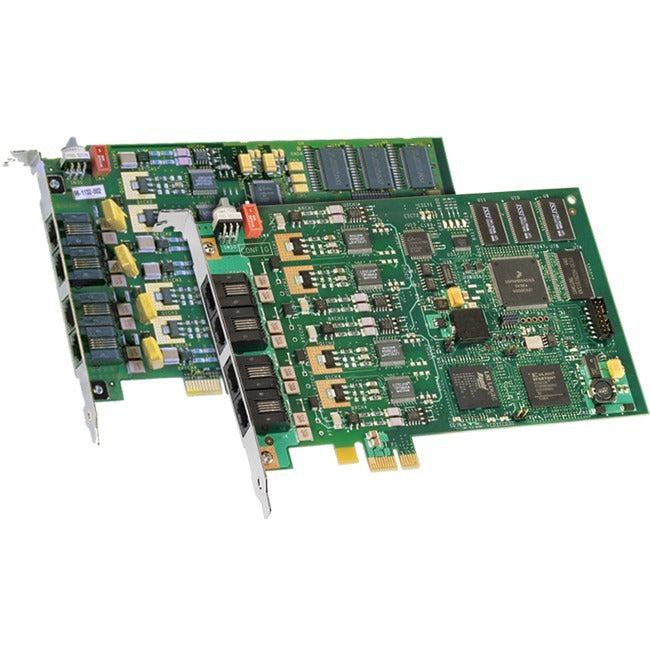

Sangoma Dialogic D4PCIUFEQ Voice Board
The four-line Dialogic® D/4PCIUF and D/4PCIU4S combined media boards are ideal for small- and medium-sized enterprise computer telephony (CT) applications that require high-performance, cost aggressive media processing, but do not require the large-scale system sophistication of SCbus- or CT Bus-based products. The boards use the same application programming interface (API) as their predecessor (D/4PCI), making it easy to scale existing applications to take advantage of their power and features in a single PCI or PCI Express slot. The boards have improved voice quality and automatic gain control (AGC), so even the weakest telephone signals can be recorded and replayed with complete clarity.
The D/4PCIUF (voice + fax) and D/4PCIU4S (voice + speech/CSP) give application developers a powerful platform for creating sophisticated interactive voice response (IVR) applications for the small- and medium-sized enterprise market segment. Caller ID support lets applications such as IVR receive calling party information via a telephone trunk line. Caller ID is supported for North America (CLASS protocol), the United Kingdom (CLI protocol), and in Japan (CLIP protocol).
- Supports up to four channels of DSP-based onboard fax (D/4PCIUF only)
- Supports up to four channels of continuous speech processing (D/4PCIU4S only)
- A variety of country-specific approvals
- Voice coding on a channel-by-channel basis
- Allows for a beneficial tradeoff between disk storage and voice quality
- Enables unified messaging applications that meet VPIM standards
- Universal PCI form factor compatible with 3.3 V and 5.0 V bus signals; and PCI Express form factor compatible with x1 lane configuration or higher
- Separate models available with Universal PCI or PCI Express edge connector
- Expands an application's ability to serve several global market segments
- Supports G.726 and GSM coders
Product Type: Voice Board
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Brand Name: Sangoma
Manufacturer: Sangoma Technologies Corporation
Product Model: D4PCIUFEQ
Product Name: Dialogic D4PCIUFEQ Voice Board
Product Line: Dialogic
Manufacturer Part Number: 310-935
Manufacturer Website Address: http://www.sangoma.com
Limited Warranty: 3 Year
