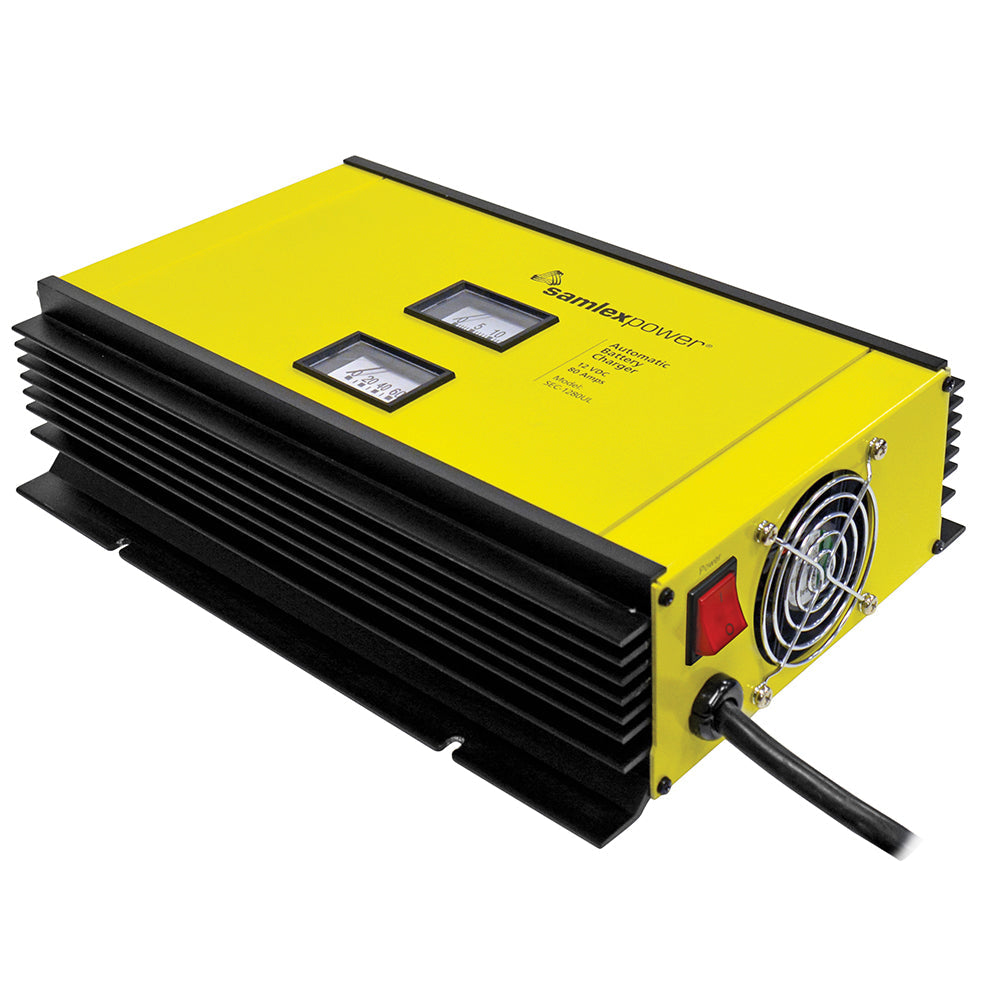

Samlex 80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes

80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 80 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Features:

• Switch mode technology for high efficiency, lightweight and quiet operation
• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
• “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit, overload, reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

• Input: 120 VAC 60 Hz or 230 VAC 50 Hz
• Output: 12 VDC
• Amps: 80
• Remote Control: 900-RC
• Weight: 9 (lbs)
• Weight: 4.1 (kg)
• Dimensions: 15 x 9.61 x 3.82 (in)
• Dimensions: 381 x 244 x 97 (mm)
• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
• Warranty: 2 Year Limited

Applications:

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems
