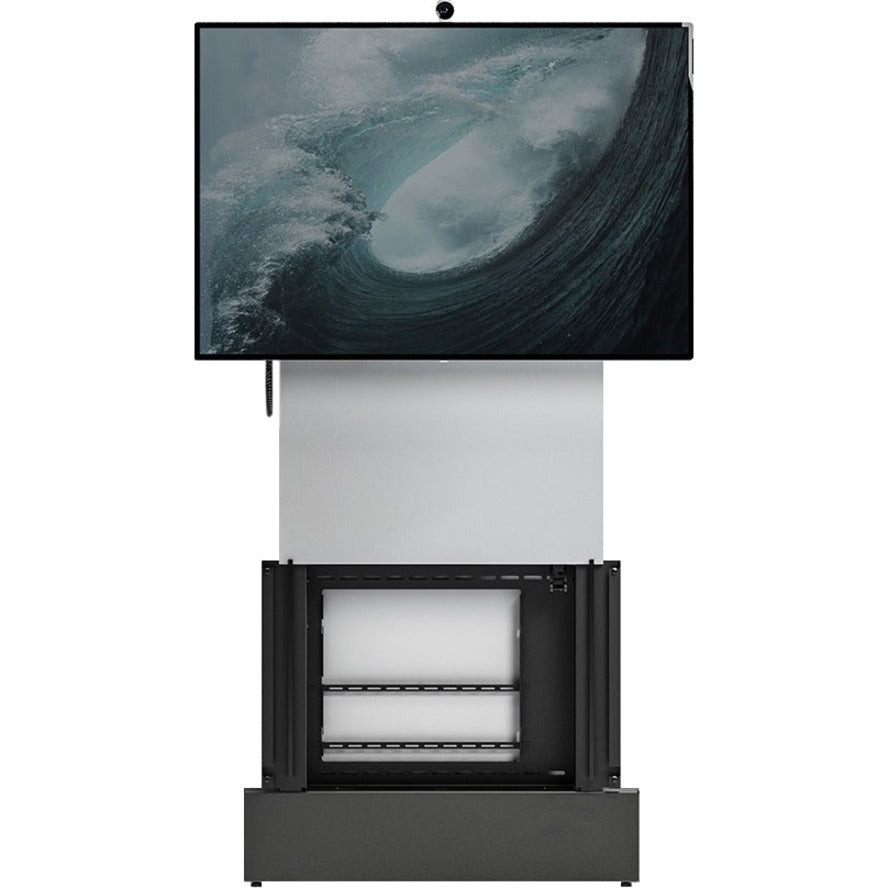

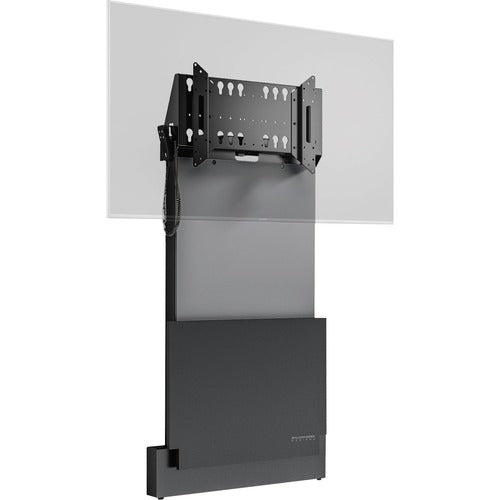

Salamander Designs Large Electric Lift Wall Display Stand
Compatibility
- VESA compliant displays,
Horizontal - 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900mm Vertical - 100, 200, 300, 350, 400mm - This includes Surface Hub pattern. Surface Hub 2 has a 350350 mounting pattern.
Ergonomics
- Fully adjustable motor control improves user experience and productivity for any size user for any work assignment.
- ADA compliant. Each user can achieve their desired ergonomic setting (waist to shoulder range of movement).
Deployment
- FPS2W-EL stand saves on engineering, trades and permitting as there no need to mount display to a wall.
Design & Construction
- Constructed with powder coated welded steel and featuring industry standard VESA mounts the FPS2W-EL stand ensures a lifetime of improved productivity, unrivaled flexibility and value.
- Custom finishes and custom matched wood panels are available.
Wire Management & Storage
- Compact, Telescoping design hides cables and equipment.
- Wire Management allows clean and uncluttered installation.
- Durable Construction Made in the USA. Powder Coated Steel, Linak Motor Components, Powder Coated and/or Veneered MDF Panels
- VESA Pattern Horizontal - 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900mm Vertical - 100, 200, 300, 350, 400mm - (M4, M5, M6, M8 Screws)
- Electrical Info Input: 90V - 240V ~, 48 Hz - 63HZ, IEC - Type Class 2, 2-prong, Duty Cycle: 10% Max 2min / 18min, USA Included: Available: EU (PN 400-591) UK (PN 400-592) New Zealand, Australia and others (PN 400-593)
- Display Size Range Compatible with most large displays including 86" Screens, see VESA pattern and weight limits.
- Weight Capacity 175 lb (80 kg)
- Range of Travel Center of screen: Min - 34.01" (863.8 mm) and Max 59.6" (1513.8 mm)
- Product Dimensions 34.31" W (871.5 mm) x 44.44 - 70.03" H (1128.8 -1778.8mm) x 8.03" D (204mm)
- Color Graphite/Gray
- Warranty Limited Lifetime
Product Type: Display Stand
Product Color: Gray
Product Material: Veneer
Country Of Origin: United States
Product Series: FPS
Brand Name: Salamander Designs
Manufacturer: Salamander Designs Ltd
Product Model: FPS2W/EL/GG
Product Name: Large Electric Lift Wall Display Stand
Manufacturer Part Number: FPS2W/EL/GG
Manufacturer Website Address: http://www.salamanderdesigns.com
Limited Warranty: Lifetime
