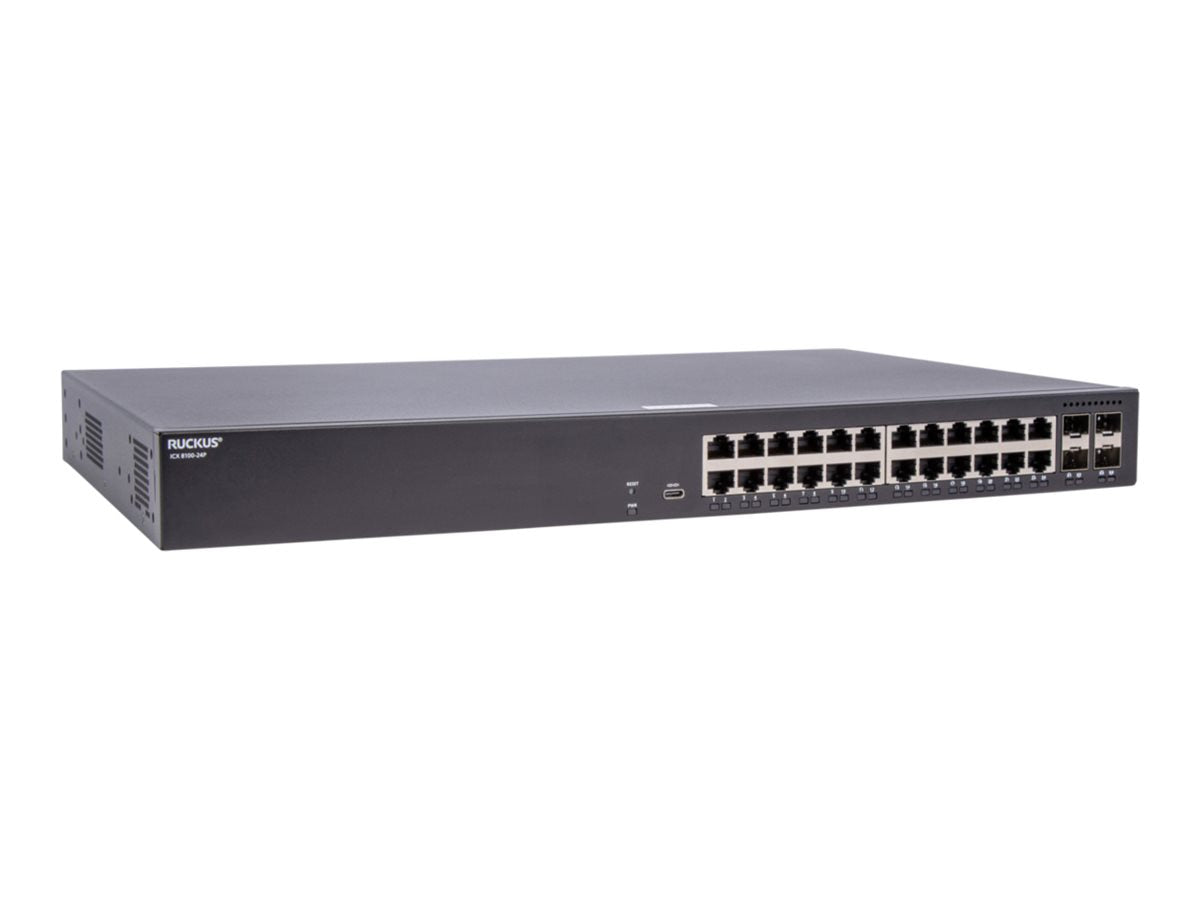

From RUCKUS WIRELESS, the ICX8100-24P-X 1U switch delivers enterprise-grade PoE+ power and scalable performance in a compact 24-port form factor. It’s designed for growing networks that need dependable device powering and fast uplinks without sacrificing rack space.
-
Port configuration: 24 x 10/100/1000 Mbps PoE+ ports (802.3at, Class 4) provide up to 30W per port for powering IP phones, cameras, and wireless access points.
-
Uplink connectivity: 4 x 10 GbE SFP+ uplink ports enable high-speed backhaul and seamless connectivity to core switches and data centers.
-
PoE budget: 370W total PoE budget supports multiple devices simultaneously, with headroom for network growth.
-
MAC address capacity: 32K MAC address table enables large-scale, dense network environments with many connected endpoints.
-
Form factor: 1U rack-mountable design optimizes space in crowded equipment rooms and closets.
-
Power flexibility: Power cord not included, allowing you to pair the switch with your existing power infrastructure and DC/AC solutions.
The ICX8100-24P-X is built to scale as your network evolves. With a robust PoE+ capability, you can deploy and energize multiple Power-over-Ethernet devices—such as IP phones, cameras, and wireless access points—without separate power drops. The four 10GbE SFP+ uplinks ensure fast, reliable data transfer to your core network, while the extensive 32K MAC address table supports large, dynamic environments. The 1U form factor helps you maximize rack space in busy data centers or branch offices, making this switch a practical backbone for growing enterprise networks.
Specs
- Model: ICX8100-24P-X
- PoE Standard: 802.3at
- PoE Power per Port: 30W (Class 4)
- Total PoE Budget: 370W
- Uplink Ports: 4 x 10GbE SFP+
- MAC Address Table: 32K
- Form Factor: 1RU
- Power Cord: Not included
- FAQ
-
Q: Does the switch include a power cord?
A: No, the power cord is not included. You can source a compatible power cord to fit your data center setup.
-
Q: What is the maximum PoE power per port?
A: Each PoE+ port supports up to 30W (Class 4).
-
Q: How many uplink ports are available?
A: There are 4 x 10GbE SFP+ uplink ports for high-speed aggregation.
-
Q: What is the total PoE power budget?
A: The switch provides a 370W PoE budget to support multiple devices.
-
Q: How many MAC addresses can the switch support?
A: It supports up to 32,000 MAC addresses.
