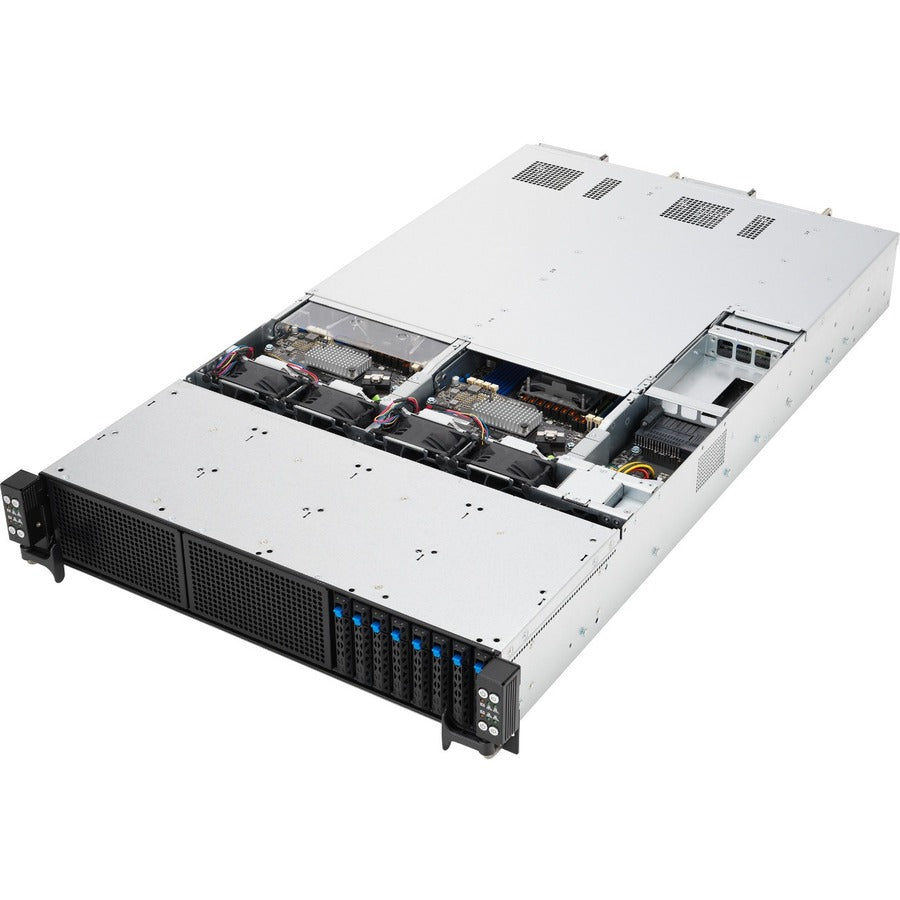

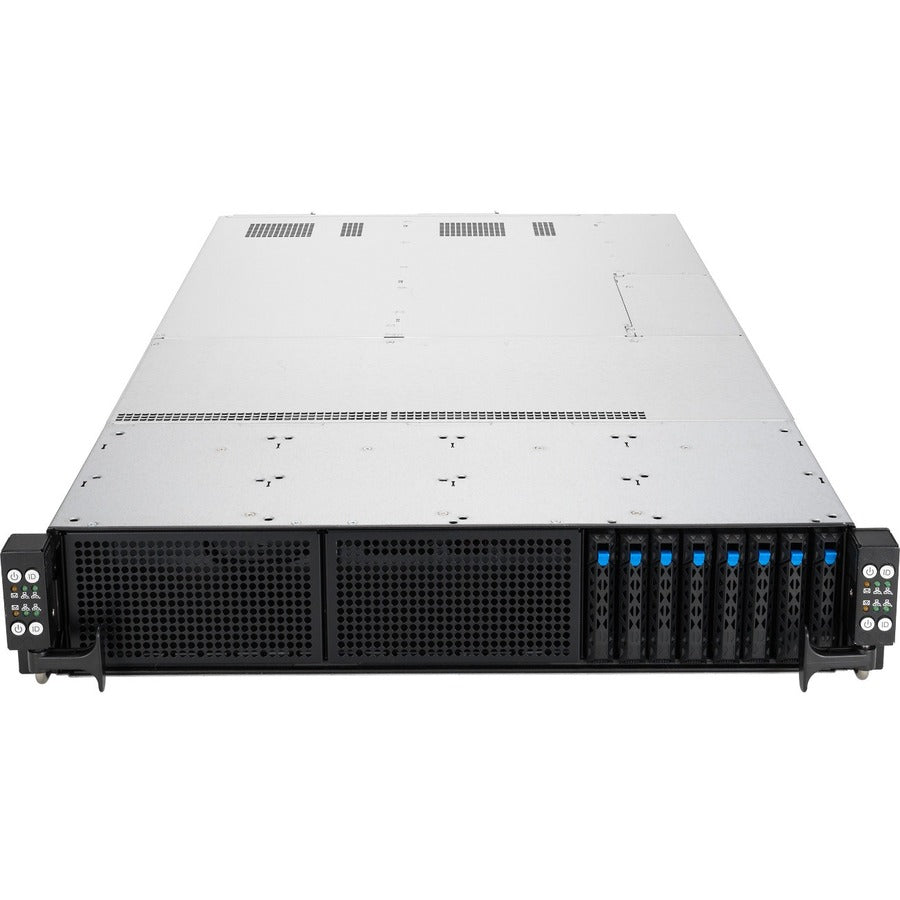

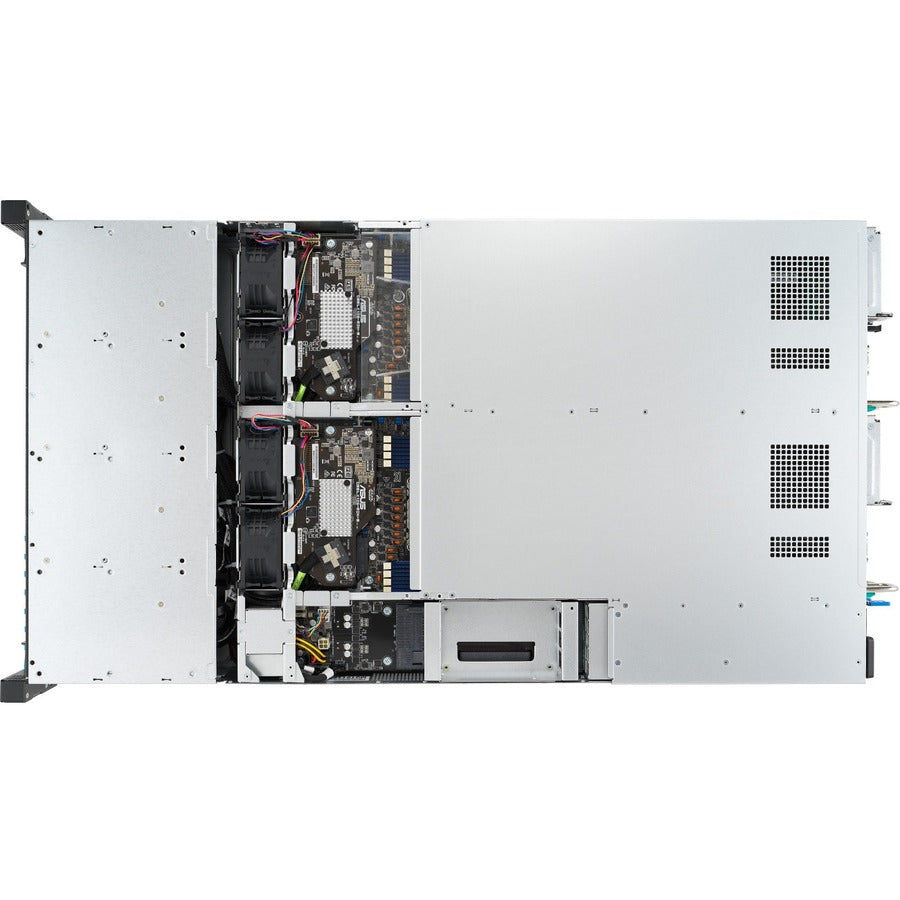

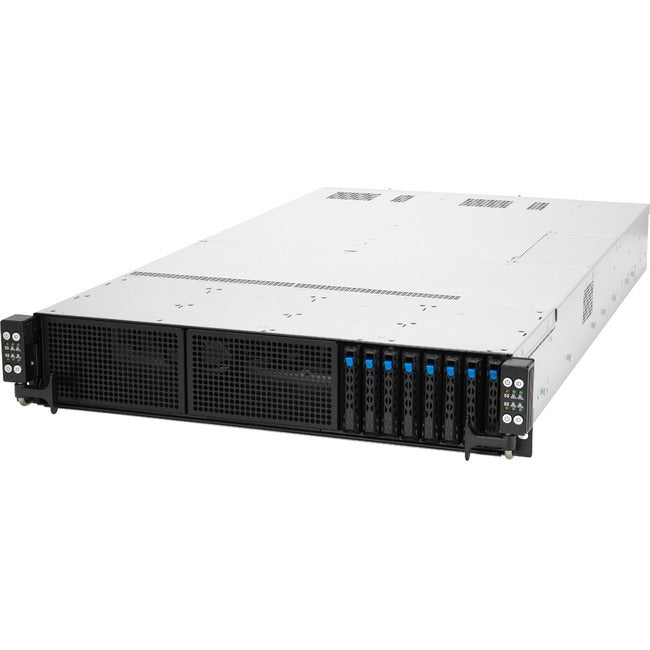

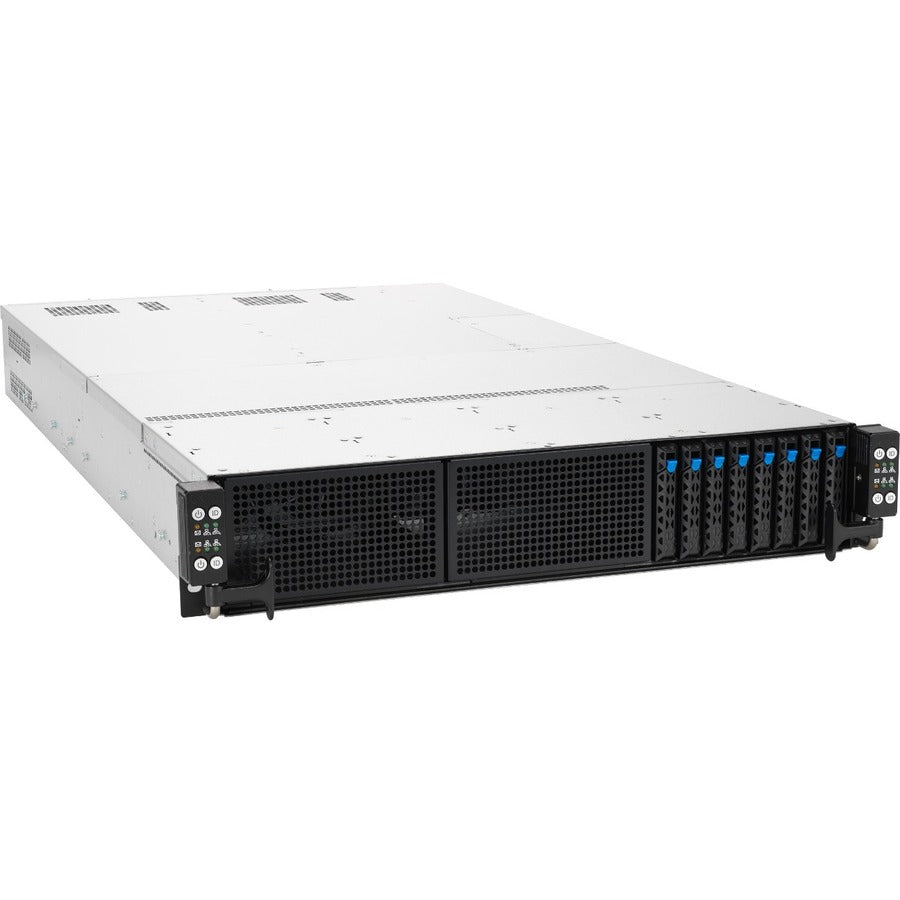

Asus RS720Q-E10-RS8U Barebone System - 2U Rack-mountable - Socket LGA-4189 - 2 x Processor Support - Intel 3rd Gen
Great Scalability and High Performance Computing (HPC) with 4 nodes in a 2U Rack Sever
ASUS RS720Q-E10-RS8U is the ideal multi-node server powered by 3rd Gen Intel® Xeon Scalable processors, with each node supporting up to 16 DIMM, one PCIe® 4.0 slot, one OCP 3.0 and two M.2, and a total of eight NVMe/SAS/SATA drives.
3rd Gen Intel Xeon Scalable processors
The RS720Q-E9-RS8-S is built with the latest Intel® Xeon® Processor Scalable Family with 16 DDR4 Memory up to 3200MHz, and designed for the demand of high scalability, high density computing, and wide range of existing and emerging workloads.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility.
Cooling Solutions
Air or liquid-cooled solutions. Asetek's Direct-to-Chip (D2C) liquid-cooling technology achieving lower power-usage effectiveness (PUE) and optimized TCO for data centers.
Enhanced Security
PFR FPGA as the platform Root-of-Trust solution for firmware resiliency Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
- Onboard ASUS ASMB10-iKVM
- ASPEED AST2600 controlle
- Flexible air- and liquid-cooling solution
- 3000W 80 Plus® Titanium power supplies
- One PCIe 4.0 x16 slot and One OCP 3.0 module per node
- 8 x 2.5" Hot-swap Drive Bays support 8 x SATA/SAS/NVMe
- processors with DDR4 Memory up to 3200MHz
- Powered by dual-socket 3rd Gen Intel Scalable
Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 2U
Brand Name: Asus
Form Factor: Rack-mountable
Manufacturer: ASUS Computer International
Product Model: RS720Q-E10-RS8U
Product Name: RS720Q-E10-RS8U Barebone System
Manufacturer Part Number: RS720Q-E10-WOCPU005Z
Manufacturer Website Address: http://usa.asus.com
Weight (Approximate): 78.26 lb
