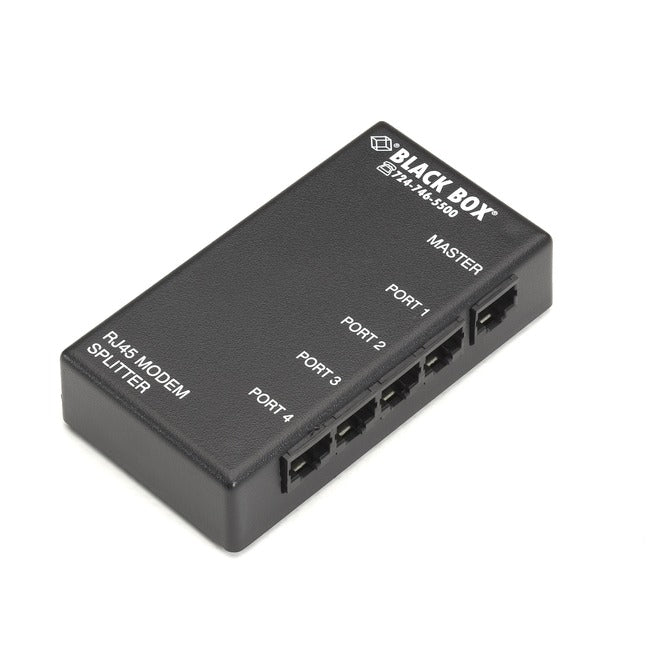

Black Box 4-Port Modem Splitter
Featuring multiple ports for splitting modem signals, the compact 4-Port Modem Splitter (RS-232 on RJ-45) makes it easy and affordable for four terminals to share a single modem.
With it, you can avoid the cost of having to purchase and install multiple modems and multiple modem lines.
Plus, it's easy to set up and use. There are no user-configurable switches, jumpers, or settings on the modem splitter. Simply connect the modem and terminal (DTE) devices to it, then power up your modem and terminals as normal.
The splitter's master port connects to your modem using an RJ-45 straight-through cable and the appropriate RJ or DB adapter. Its other ports (Port 1 through Port 4) connect to your DTE terminal devices.
NOTE: Only one terminal device can send data to the modem at a time.
- Passive, non-powered. Operates transparent to data formats and speeds.
- Transmits data received from the modem to all attached terminal devices.
- Enables four RS-232 terminal devices to share a single modem.
Product Type: Signal Splitter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Model: TL421A
Product Name: 4-Port Modem Splitter
Manufacturer Part Number: TL421A
Manufacturer Website Address: http://www.blackbox.com
Packaged Quantity: 1
Limited Warranty: 1 Year
Weight (Approximate): 4 oz
