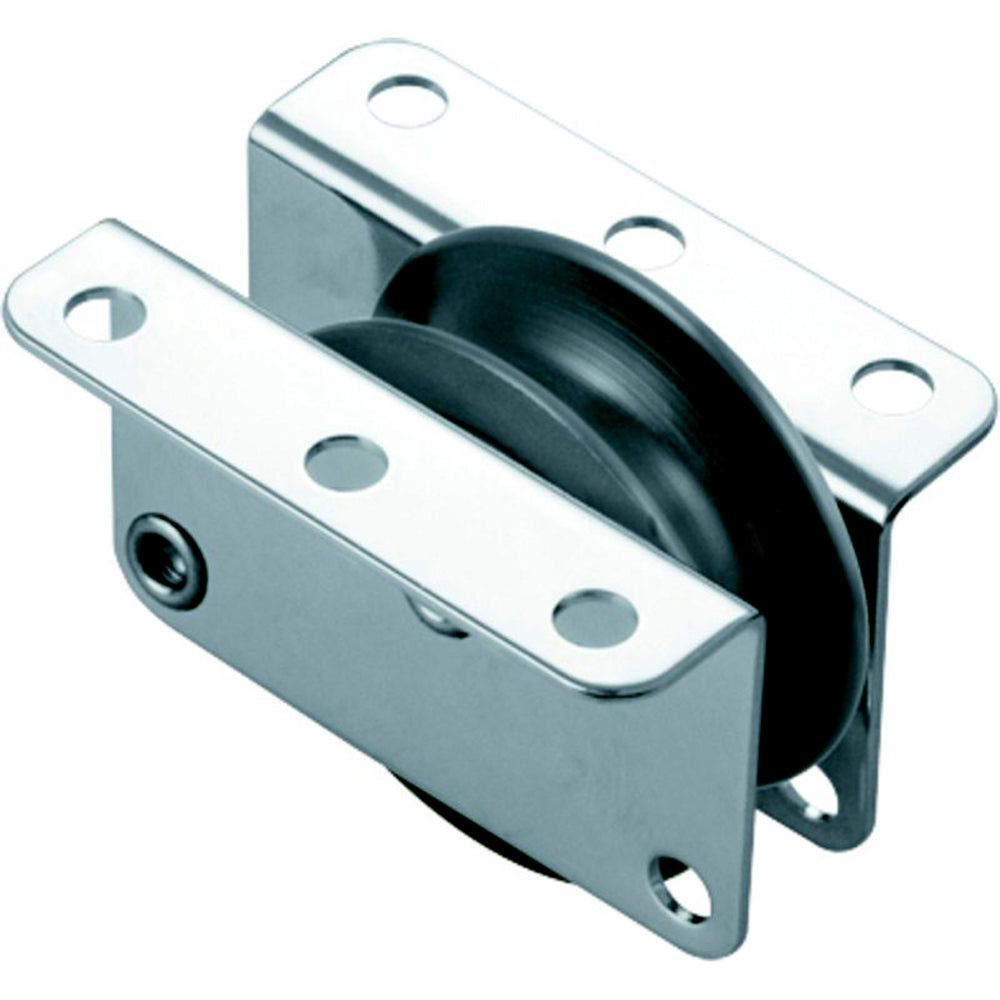

Series 30 High Load Exit Box for Single Rope or WirePlain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encountered
Applications:- Ideal applications where lines (rope or wire) need to be led through decks, bulkheads or spars minimizing friction and chafing
Materials:
- Nylatron®l sheave
- Grade 316 Stainless Steel cheeks
Specifications:Sheave Ø: 30.0mm(1-3/16")
Max. Rope Ø:8.0mm(5/16")
Max. Cable Ø: 4.0mm(5/32")
B.L.: 800kg(1,760lbs)
Manufacturer Part Number: RF31712
