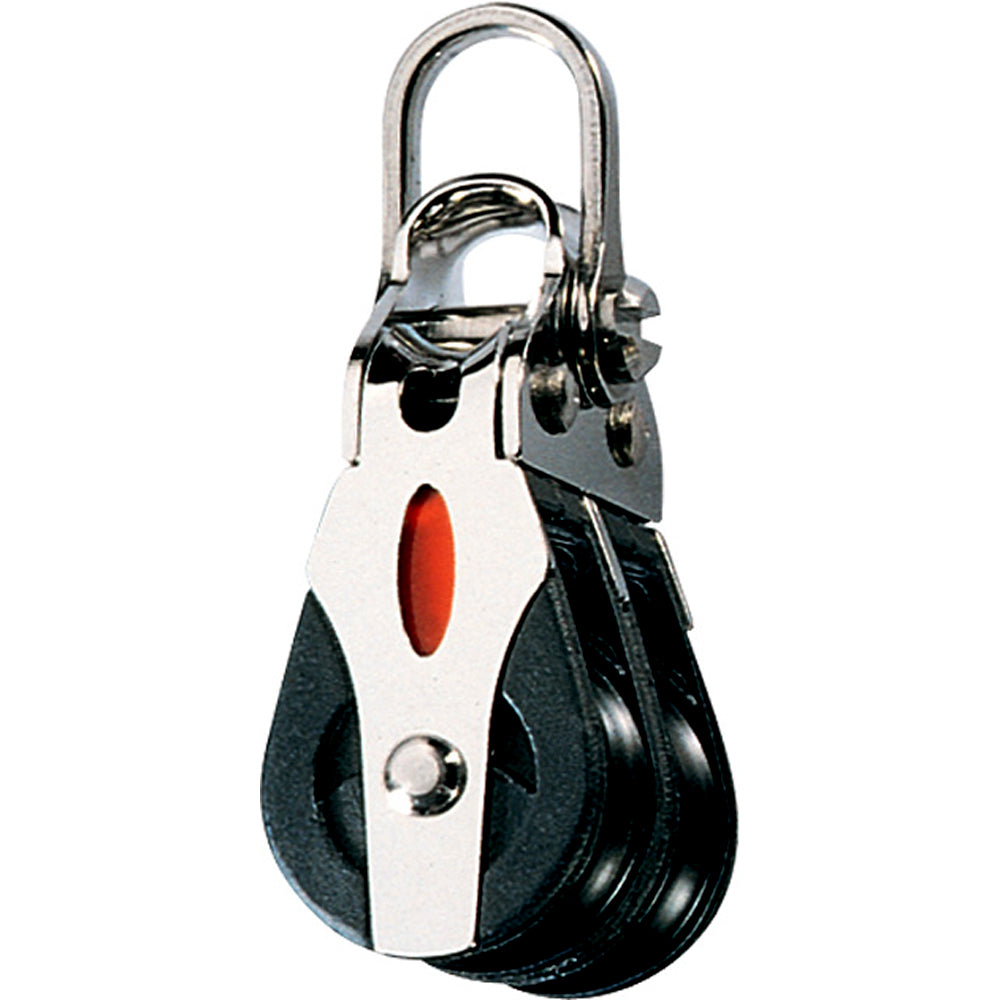

Series 20 Ball Bearing Block - Double - 2-Axis Shackle HeadFeatures:
- Low friction
- High static and dynamic load capacity
- Lightweight
- Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
- Two-Way head can be fixed at 0° or 90°
Applications:
- Dinghy control lines
- Dinghy vangs
- Cunninghams
- Traveller controls
Materials:
- Stainless steel ball bearings
- UV Stabilized Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fiber reinforced Nylon cheeks
Specifications:Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.: 350kg(770lbs)
B. L.: 700kg(1,540lbs)
Weight: 42g(1.5oz)
Manufacturer Part Number: RF20202
