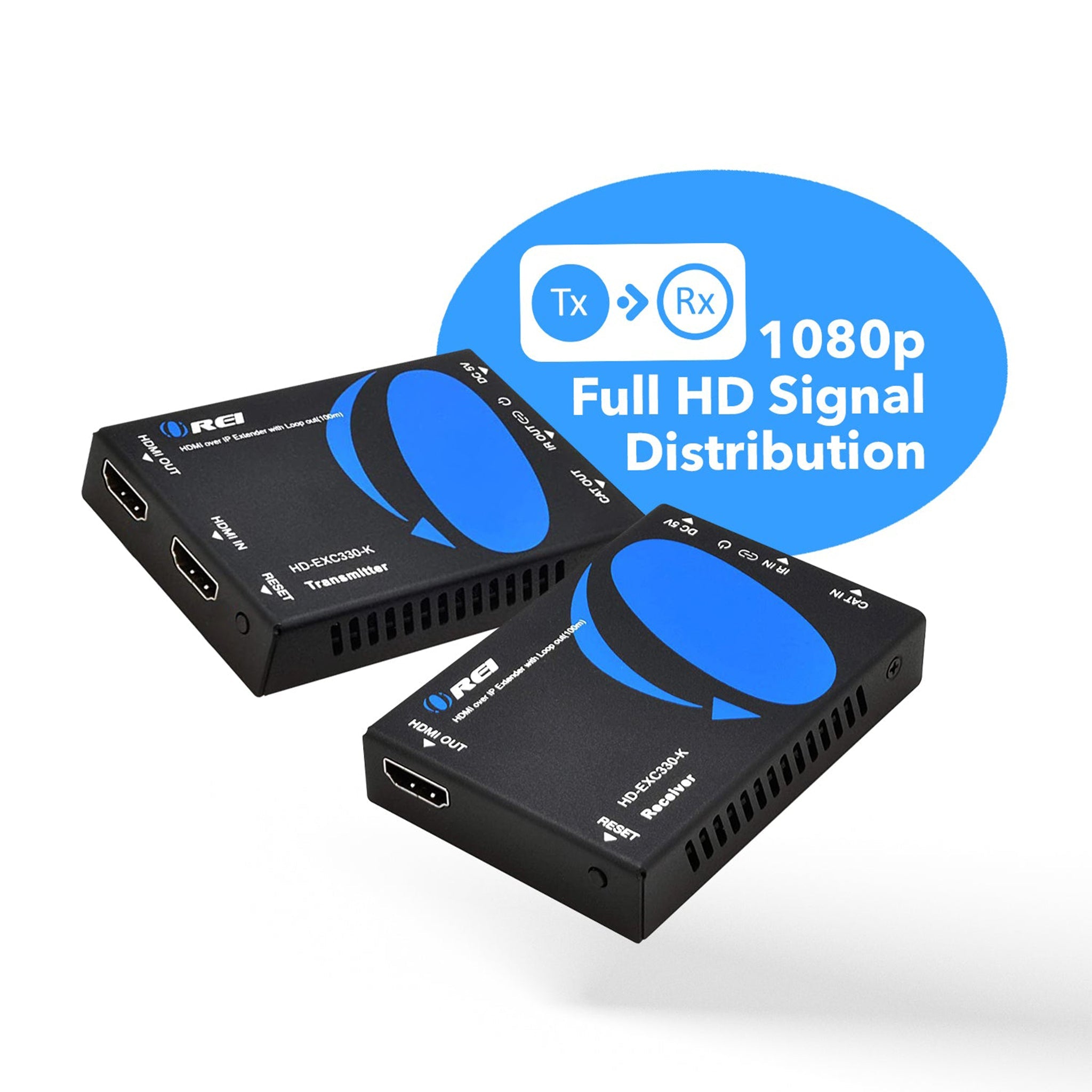

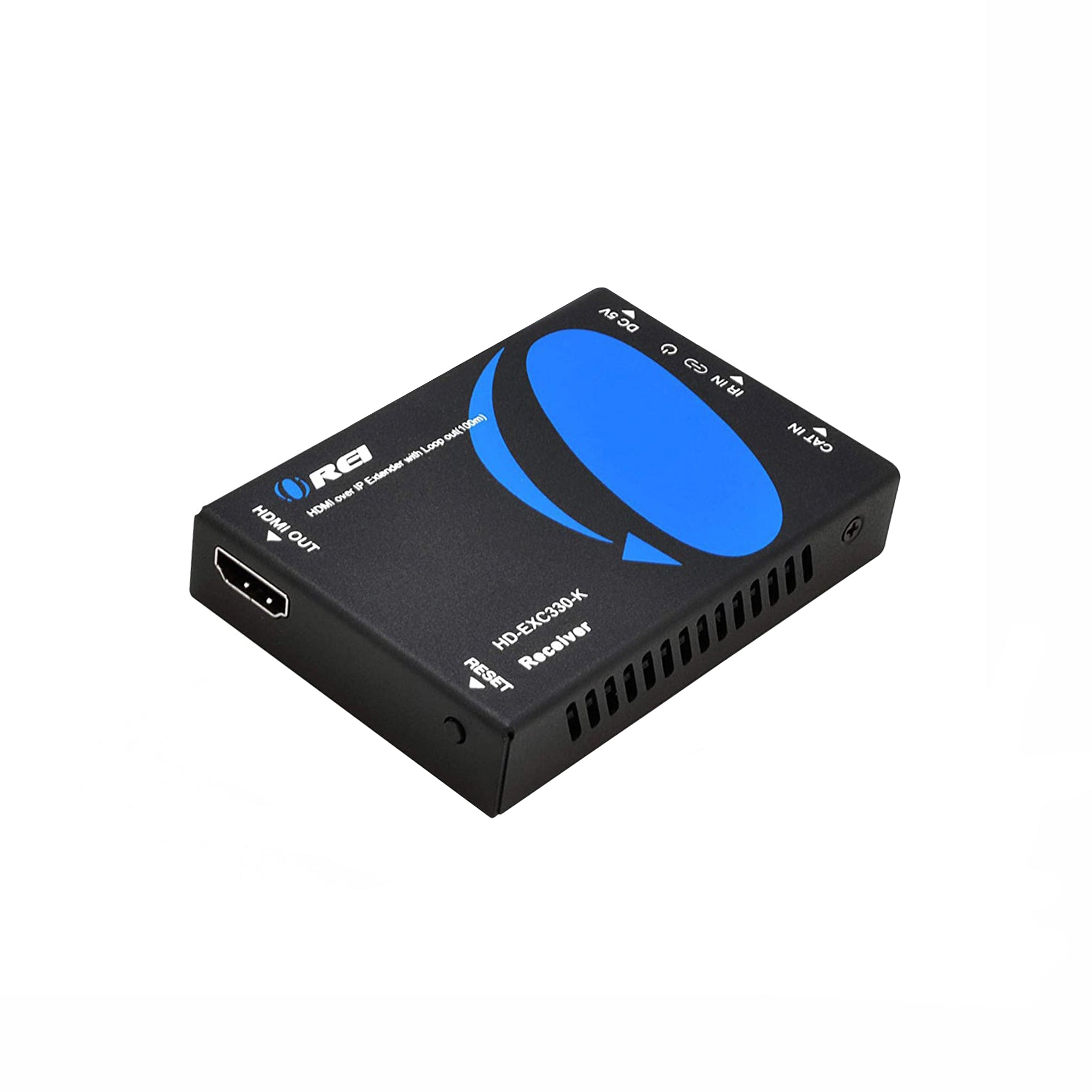

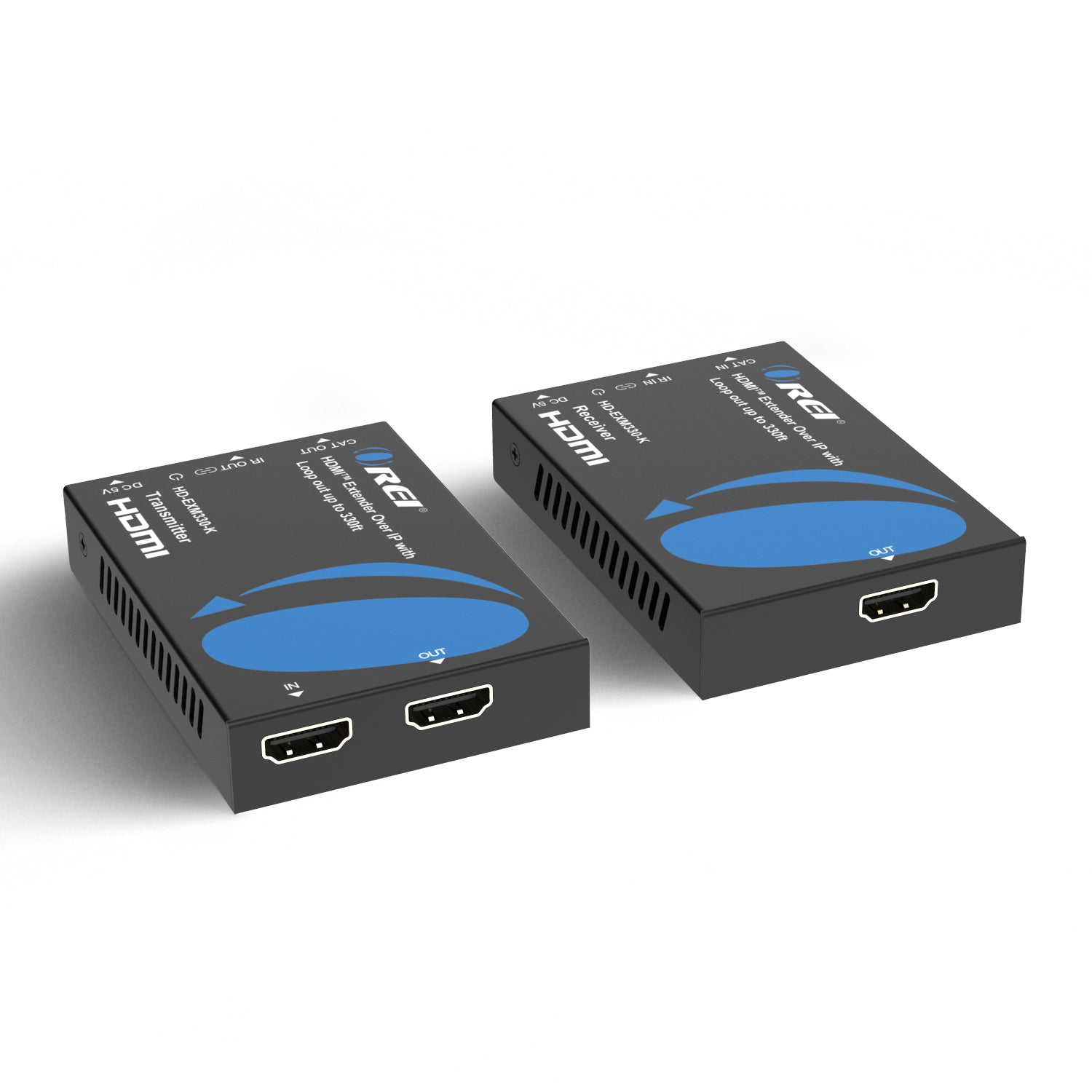

OREI HD-EXM330-RX (Receiver Only): HDMI over IP extender upto 330ft

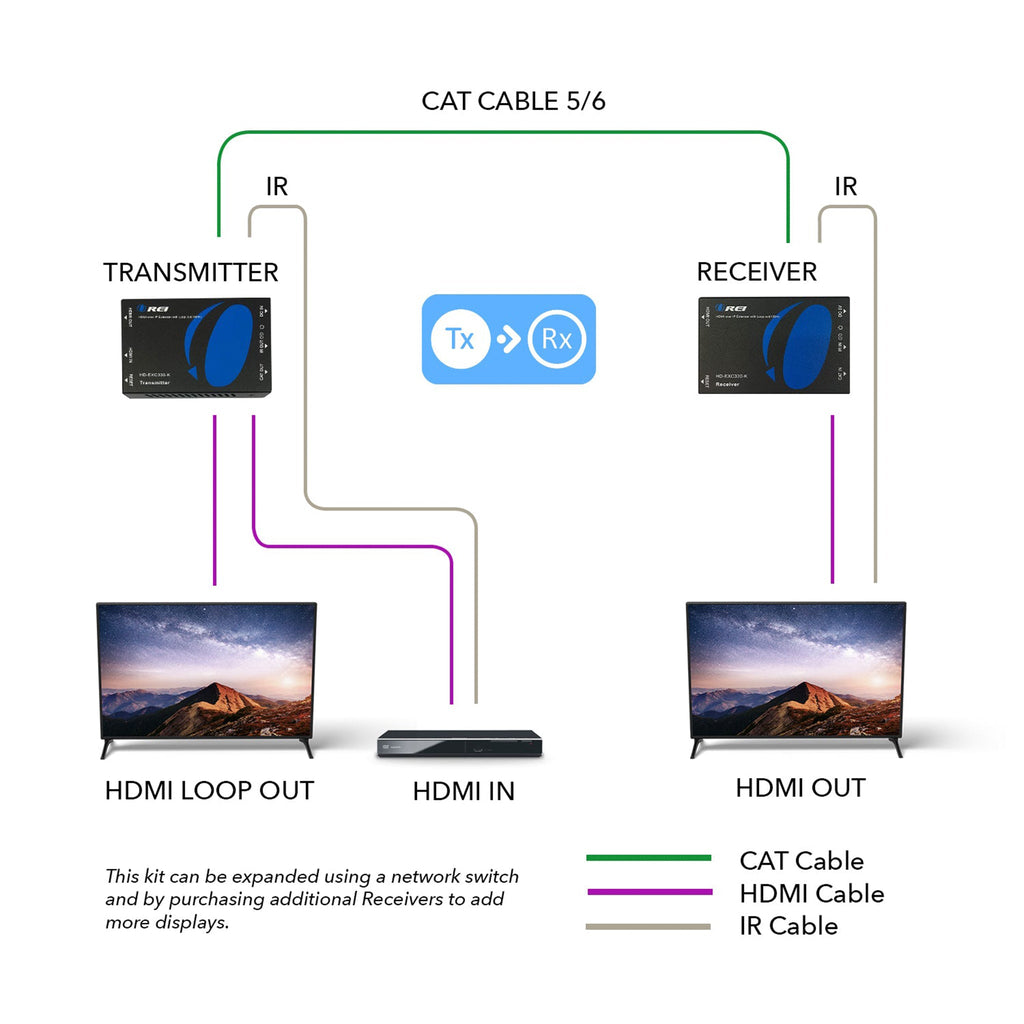

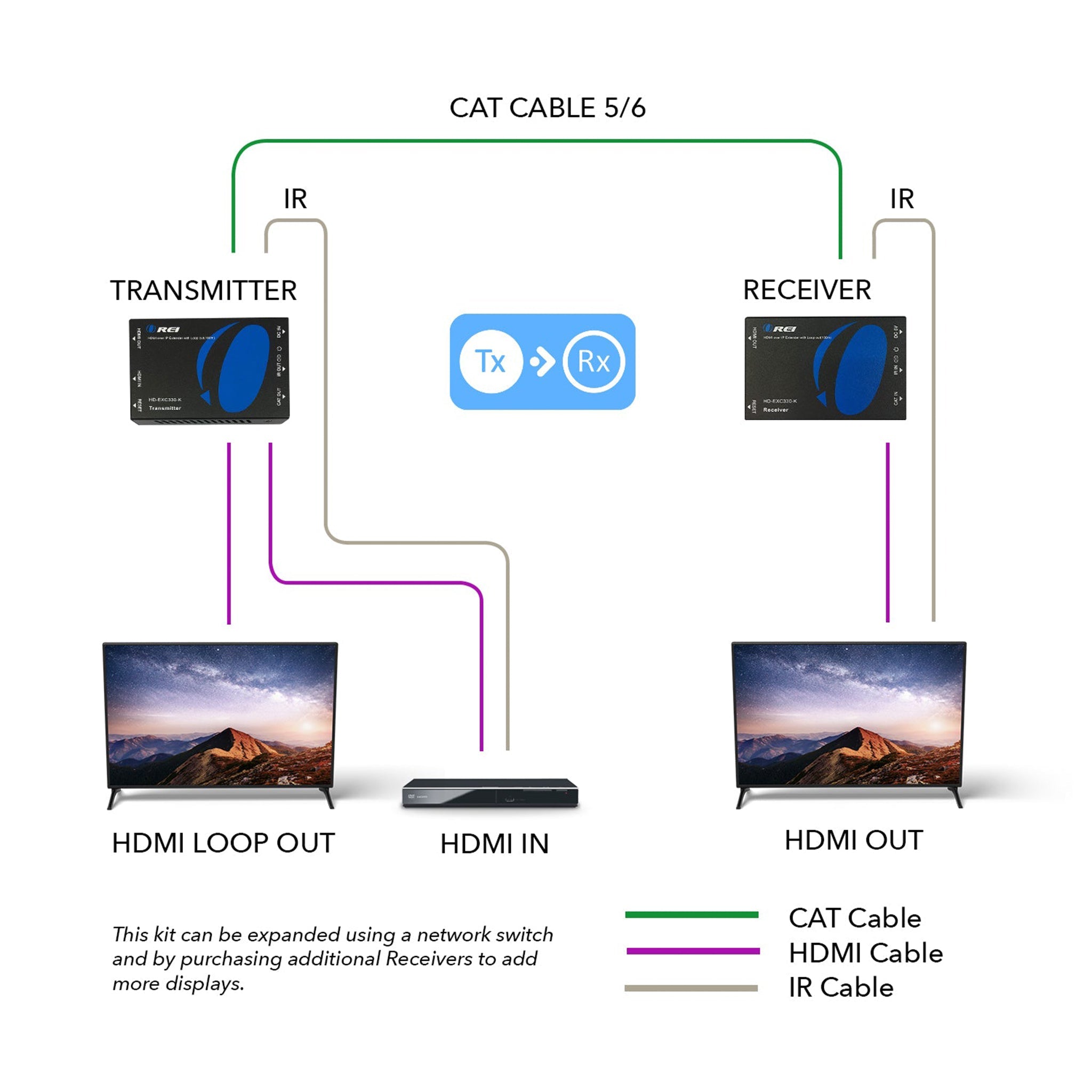

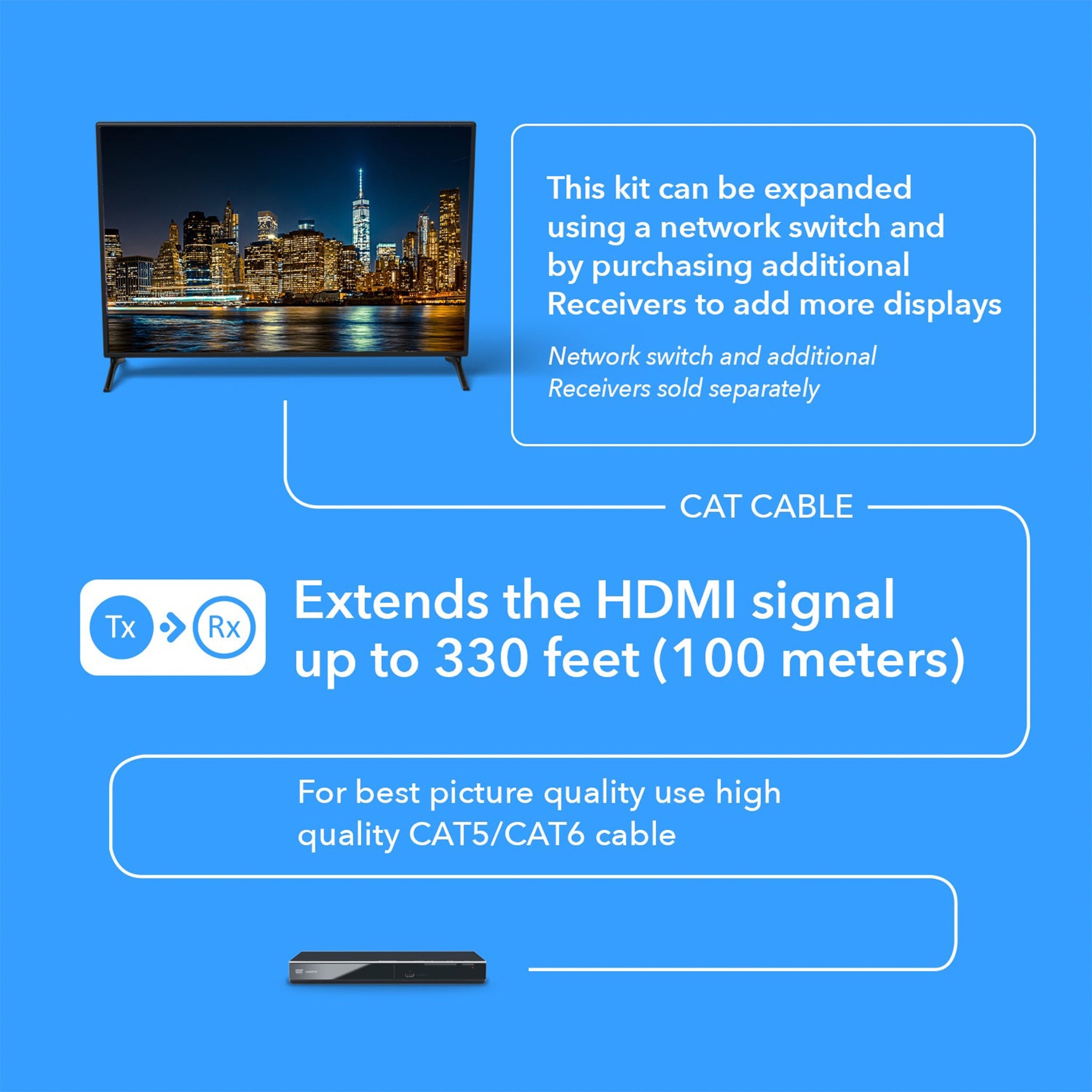

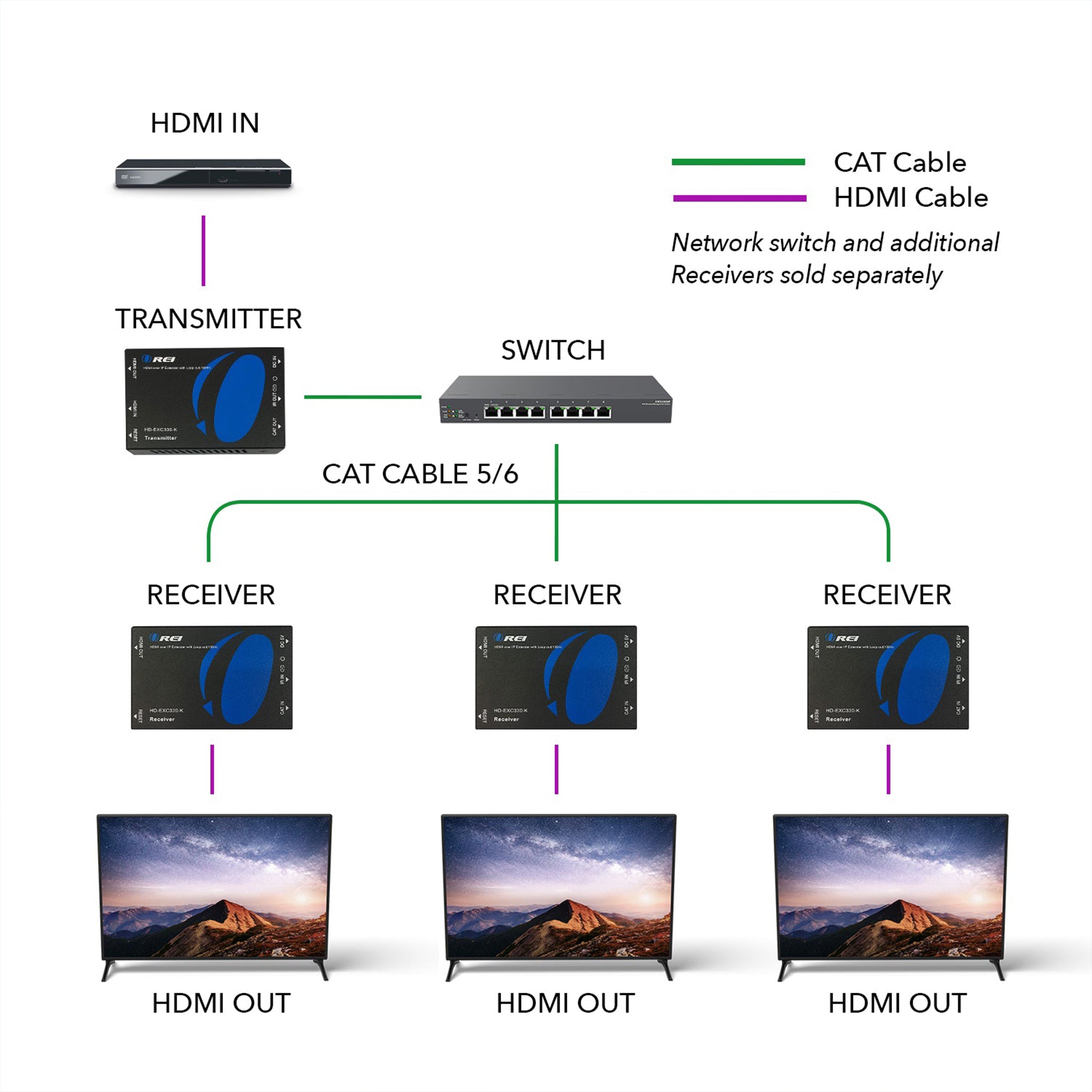

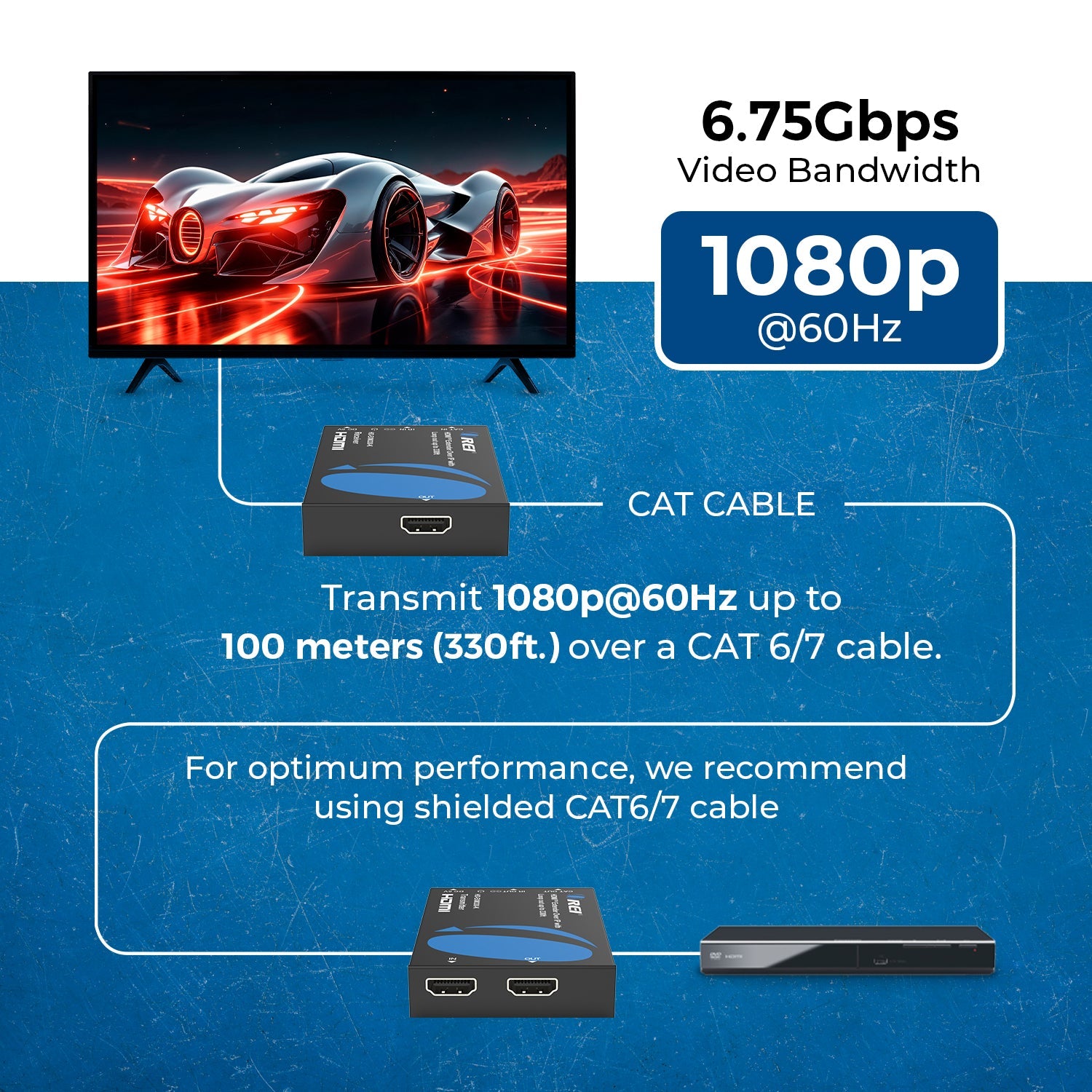

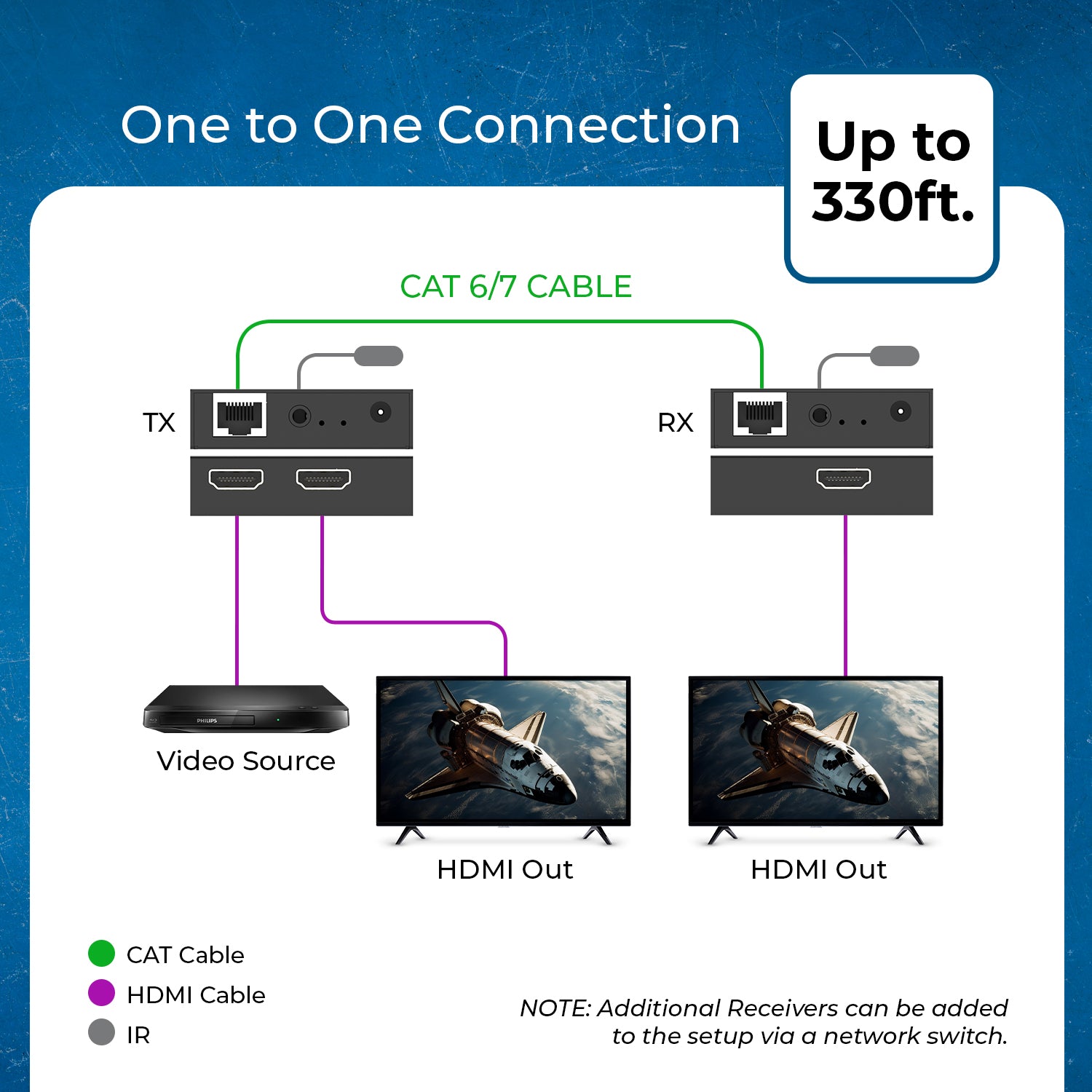

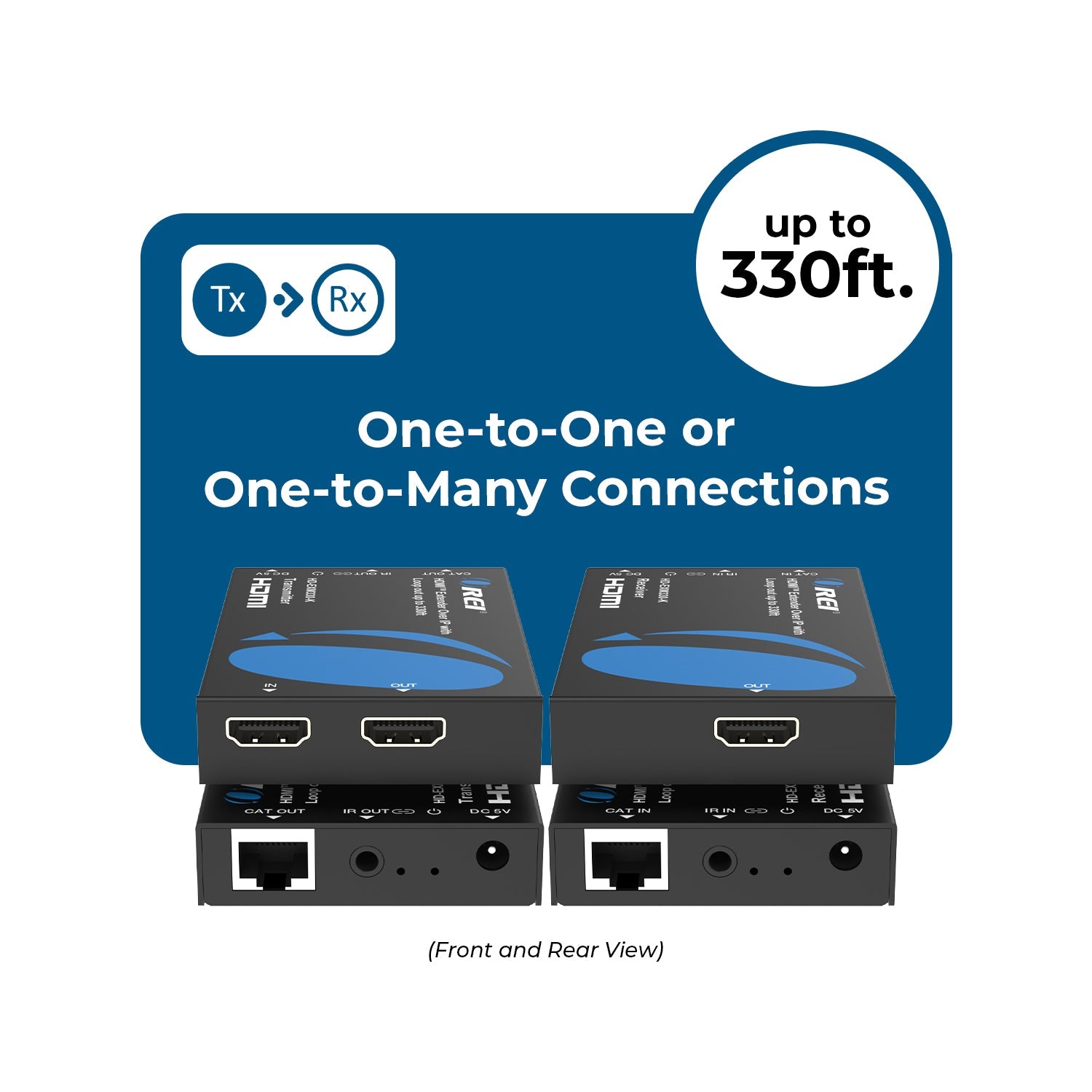

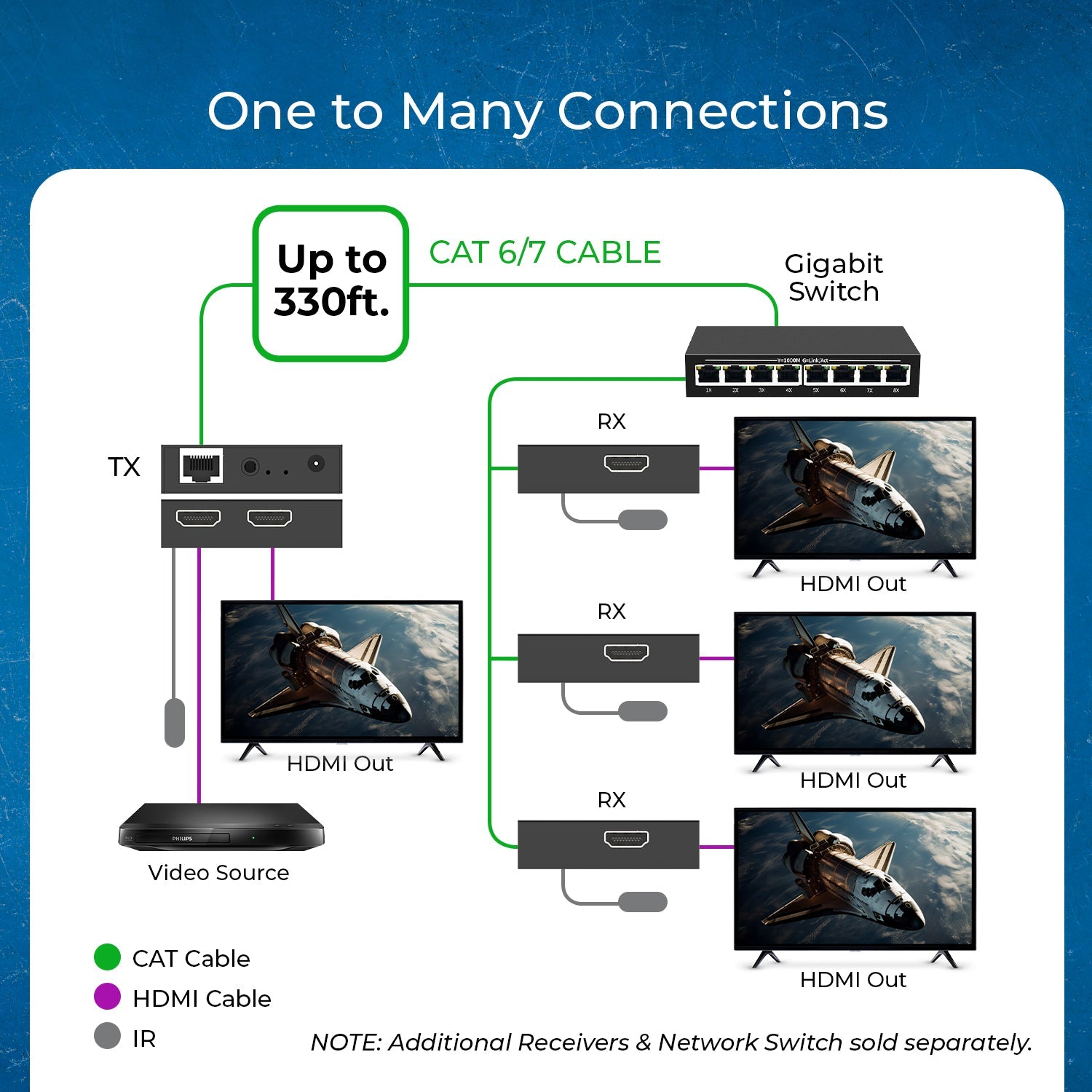

EXTEND VIDEO UP TO 330 FT: Extends HDMI signals up to 330 Feet (100 meters) at full HD 1080p by a Cat5e/Cat6 cable. Point to Point connection . It supports one to many connection (sold separately).

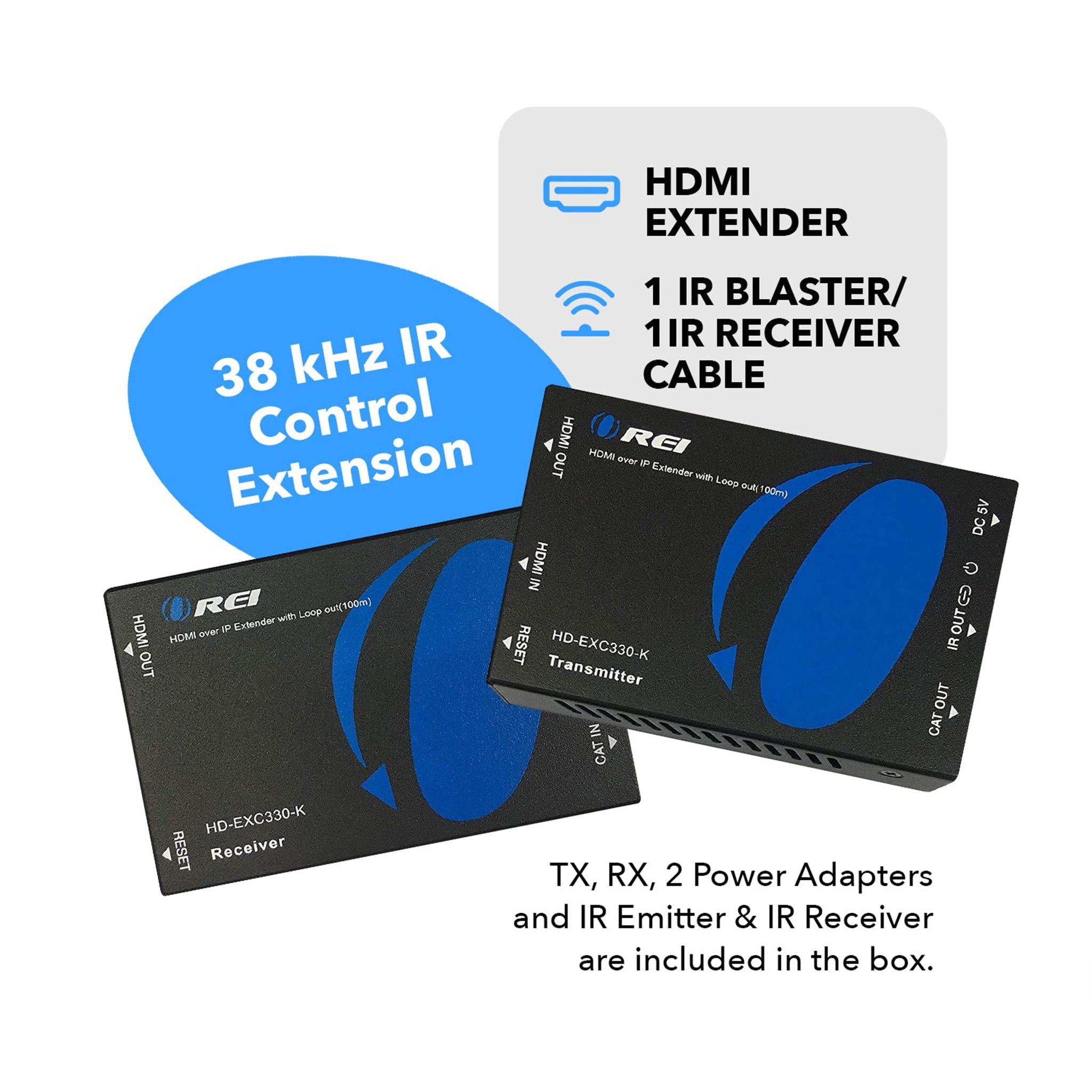

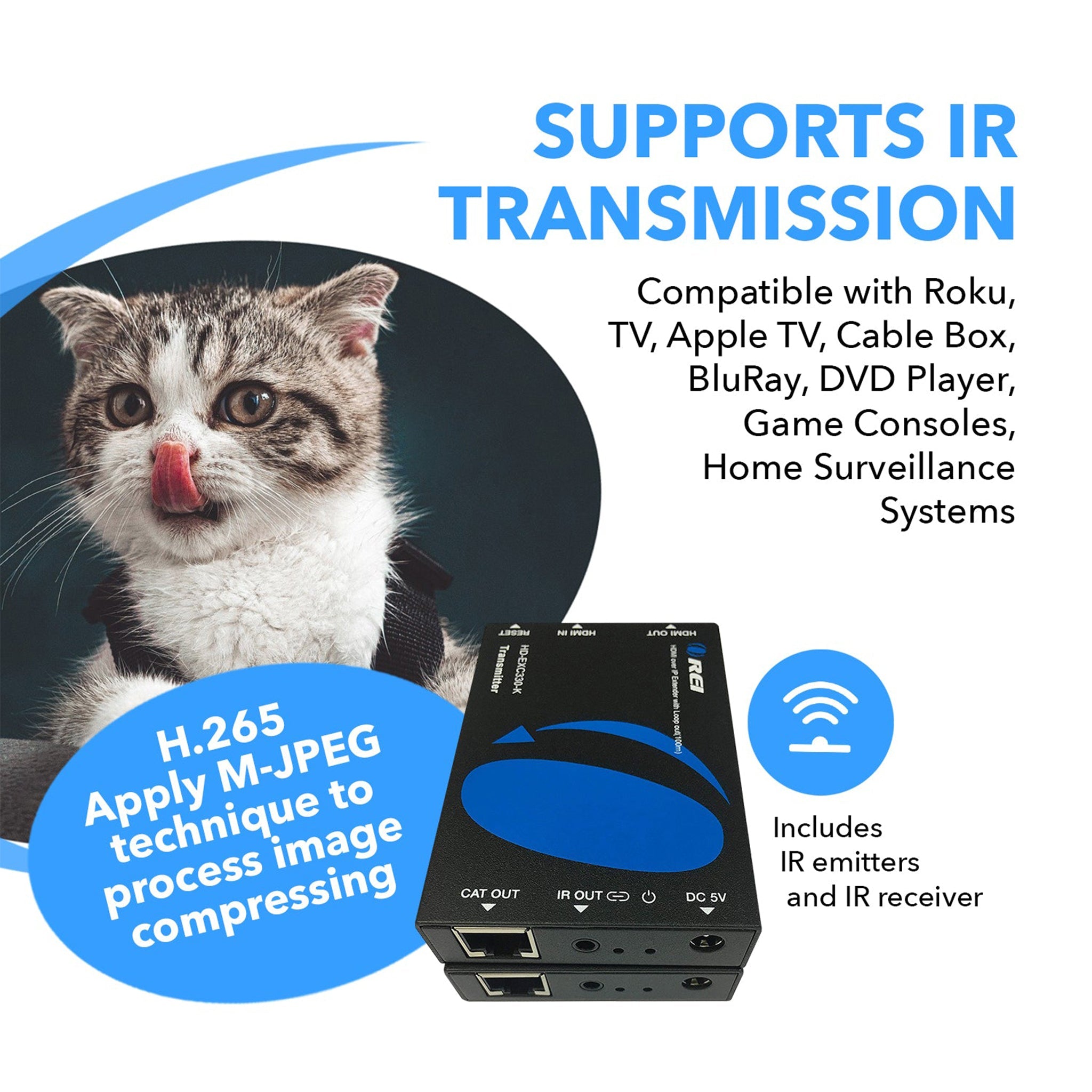

38 kHz frequency IR control extension: perfect for changing channels Remotely

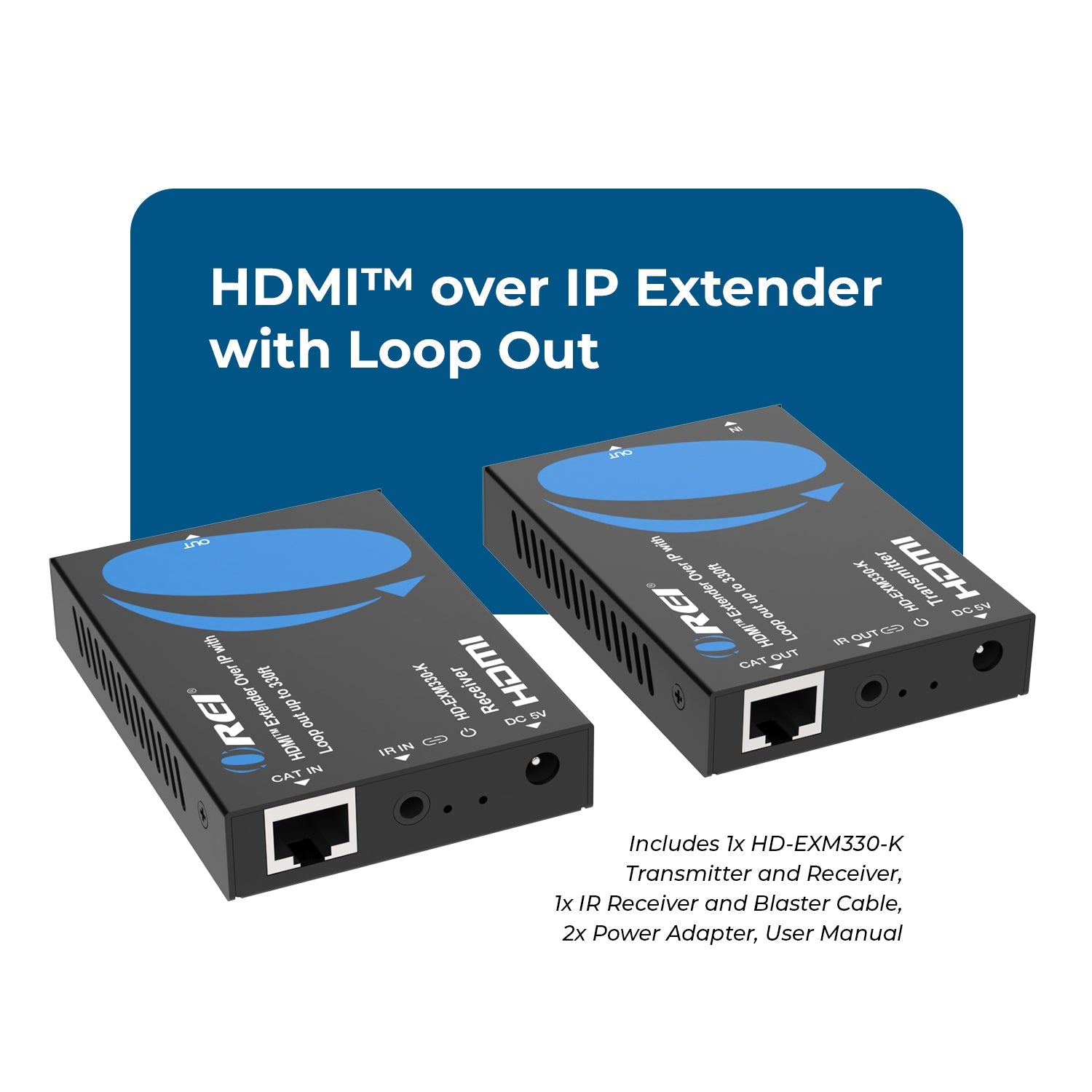

Hdmi loop out - Additional HDMI output on the transmitter end allows you to add a local display for monitoring
Apply M-JPEG technique to process image compressing, and with little image quality loss
Zero loss - Support HDMI 480i 60Hz, 480p 60Hz, 576i 60Hz, 576 50Hz, 720p 50/60Hz, 1080i 50/60Hz, 1080p 50/60Hz; no driver installation required, convenient for your work and live. Full OREI Support - 1 year
[tab]
AUDIO AND VIDEO
Receiver:
INPUT PORTS:
1×IR IN [3.5mm Stereo Mini-jack]
OUTPUT PORTS:
1×CAT IN [RJ45 connector]
1×HDMI Type A [19-pin female]
COMPLIANCES & PROTOCOLS
HDMI Compliance
HDMI 1.4b
HDCP Compliance
HDCP 1.4
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080p@60Hz:
330 Feet
VIDEO OUTPUT
Video Bandwidth:
10.2Gbps
Video Resolutions:
Up to 1920x1200@60Hz
Color Space:
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth:
8-bit
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
No
USB KVM Function:
No
PoC/PoE Function:
No
IR Controller:
Yes
Downscaler Function:
No
Over Network/IP Function:
Yes
HDBaseT Function:
No
RS-232 Function:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
Buttons
Reset Button:
It will reset the product including IP address, encoding information and EDID. The EDID will recover default status for 1920x1080p@60Hz
AUDIO OUTPUT
HDMI Audio Formats:
LPCM 2.0CH,48KHz
SIGNALS
TMDS Signals:
3.3V
DDC Signals:
5V

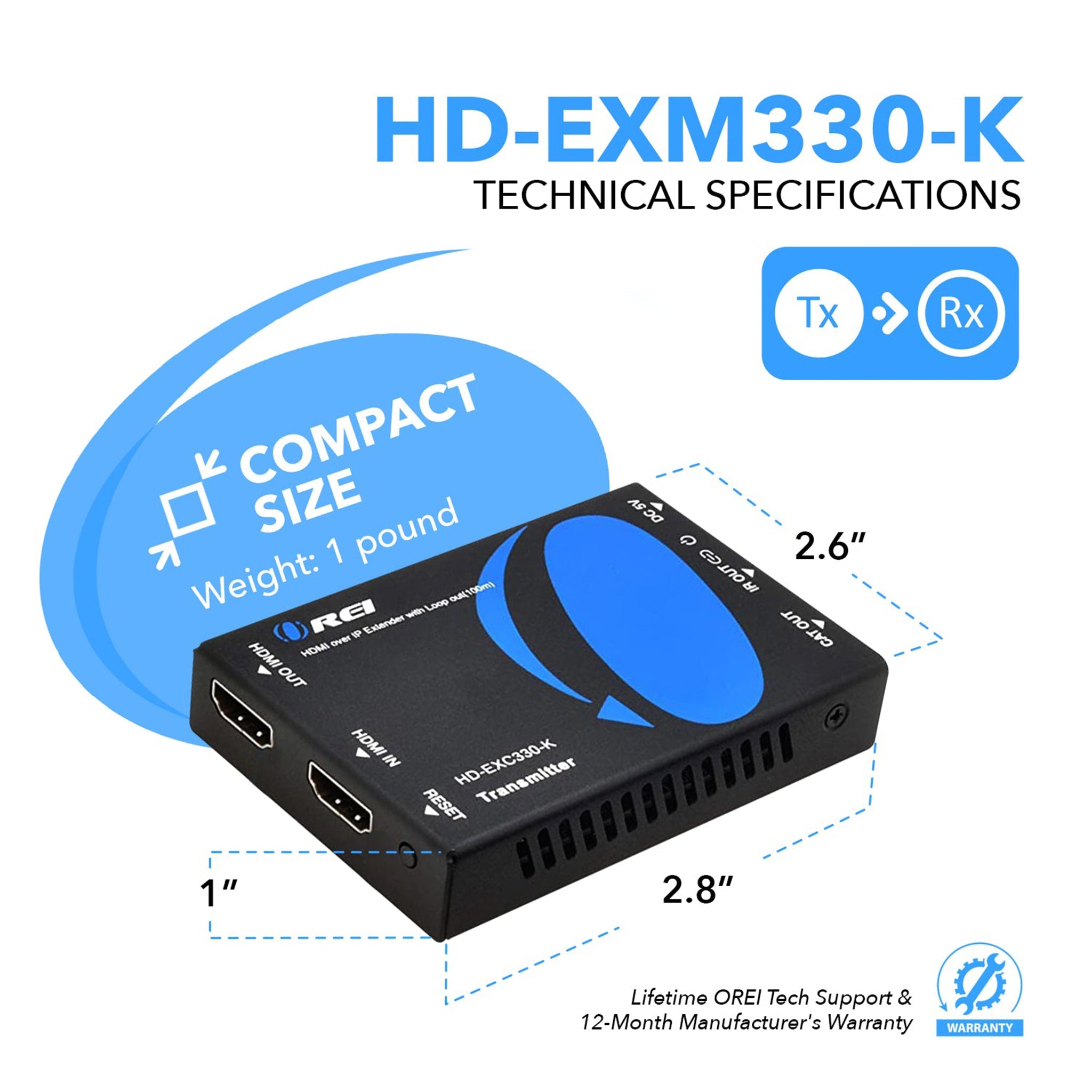

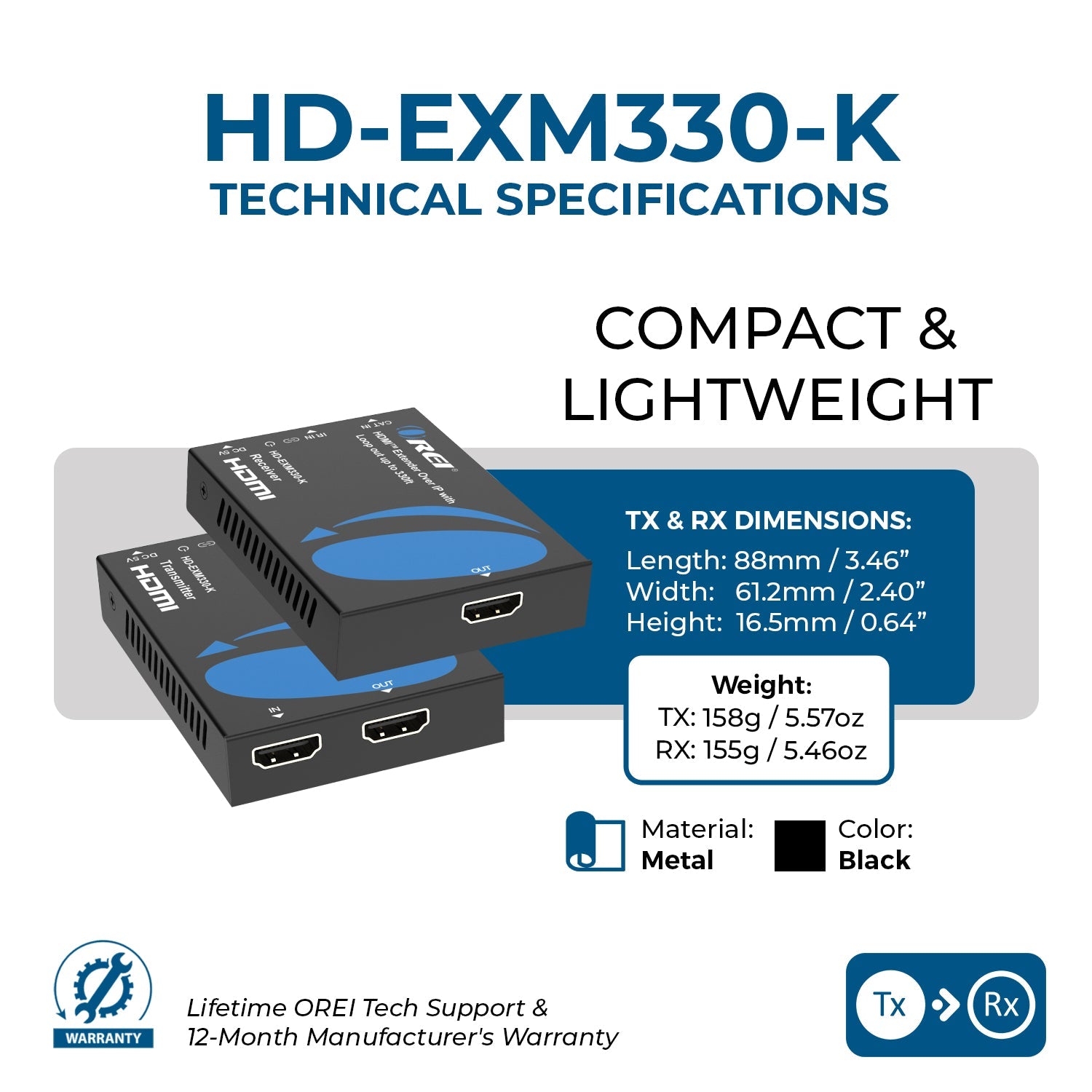

DIMENSIONS & WEIGHT
Height:
16.5 mm
Width:
88 mm
Depth:
61.2 mm
Weight:
Receiver:
150g
PROTECTION
Operation Temperature:
-10°C ~ 50°C / 14°F ~ 122°F
Storage temperature:
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:
20~90% RH (non-condensing)
ESD Protection:
Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Electrostatic Protection of the whole Machine:
Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
RJ-45 CONNECTOR Type
WE/SS 8P8C
POWER
Power Consumption (Max):
Receiver:
1.25W
Power Supply:
Input:
AC100 - 240V 50/60Hz
Output:
DC 5V/1A (US/EU standards, CE/FCC/UL certified)
PHYSICAL PROPERTIES
Color:
Black
Housing:
Metal Enclosure
PACKAGE CONTENTS
1 x HDMI Receiver
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 330 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
