Electro-Voice RE3-RX Diversity Receiver
- Diversity reception minimizes dropouts
- Frequency scanning for selecting open frequencies
- Sync function links transmitter to receiver for easy setup
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
- Easy-to-read LCD display
UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR and unbalanced " TRS outputs.
The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

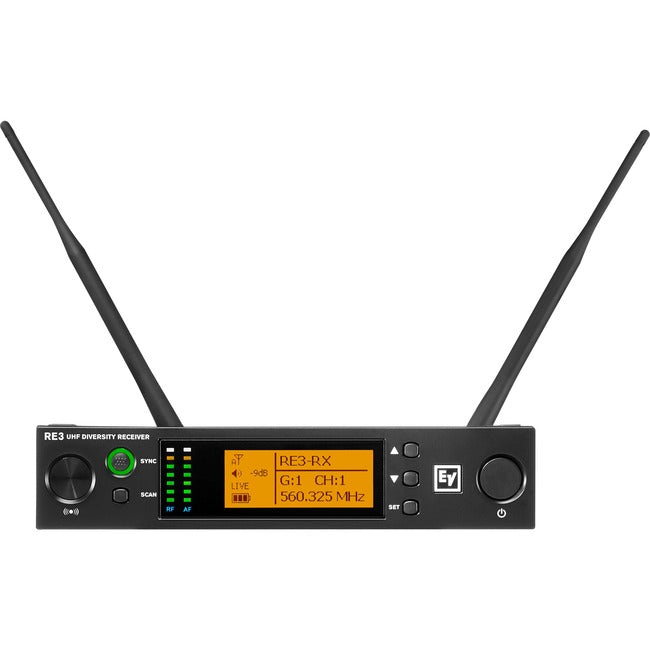

The RE3-RX is a professional rack-mountable, space diversity receiver. Designed to function as the control center for an RE3 wireless set, it features frequency scanning and synchronizing, as well as full transmitter control settings which synchronize to a mated transmitter.
The diversity reception technology minimizes the chances of signal dropouts by providing two separate antenna locations which are electronically chosen moment-by-moment based on signal strength and stability.
The easy-to-use frequency scanning function simplifies locating and tuning to a clear operating frequency. The sync function wirelessly synchronizes all operating parameters to the mated transmitter.
The wide tuning bandwidth provides access to a wide range of frequencies, selectable in 25kHz steps for trouble-free operation of single and multi-channel systems.
The easy-to-read LCD display provides vivid viewing of all menus and operating parameters.
Product Type: Wireless Microphone System Receiver
Product Color: Black
Brand Name: Electro-Voice
Manufacturer: The Bosch Group
Product Model: RE3-RX-6M
Product Name: RE3-RX Diversity Receiver
Manufacturer Part Number: RE3-RX-6M
Manufacturer Website Address: http://www.bosch.com
Packaged Quantity: 1
Package Contents:
- 1 x RE3-RX Diversity Receiver
- 2 x Wave Antennas
- 1 x Power Supply with Wall Outlet Clips
- 1 x Engineering Datasheet
- 1 x Warranty and Product Documentation Information Card
Weight (Approximate): 2.71 lb
