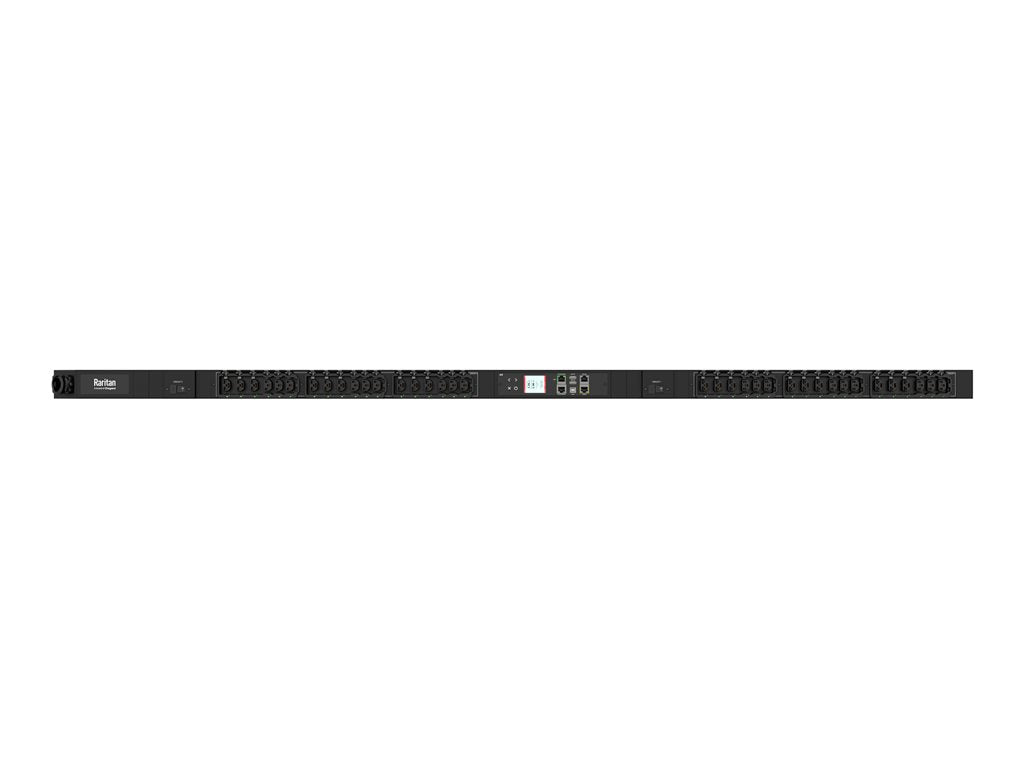

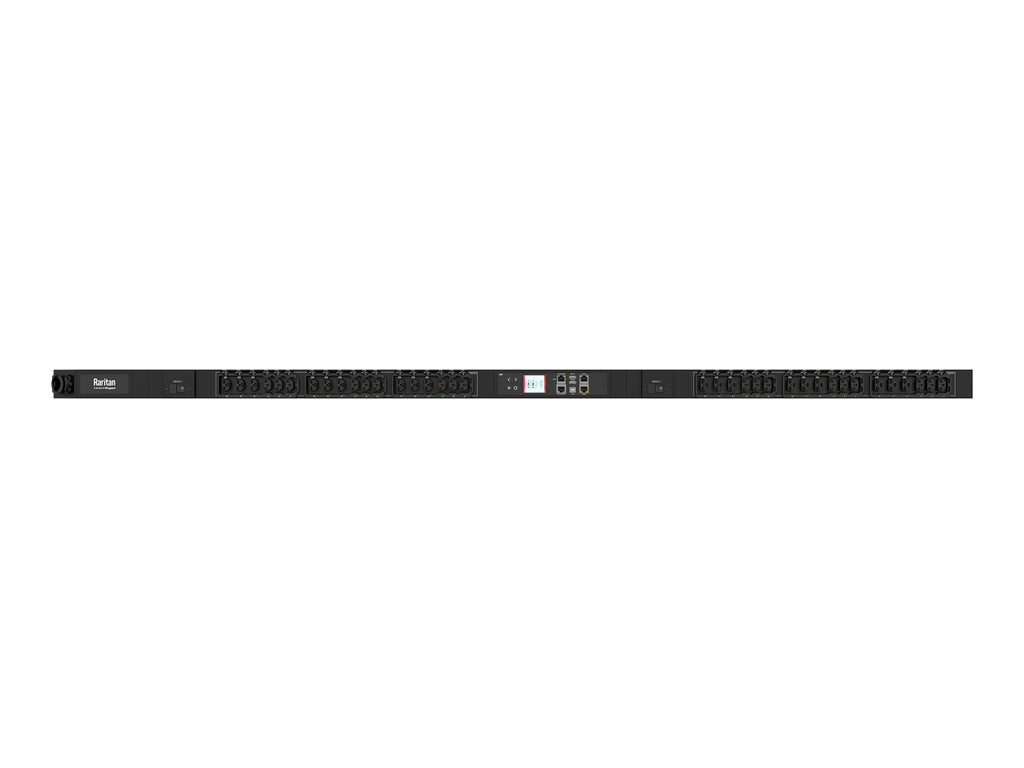

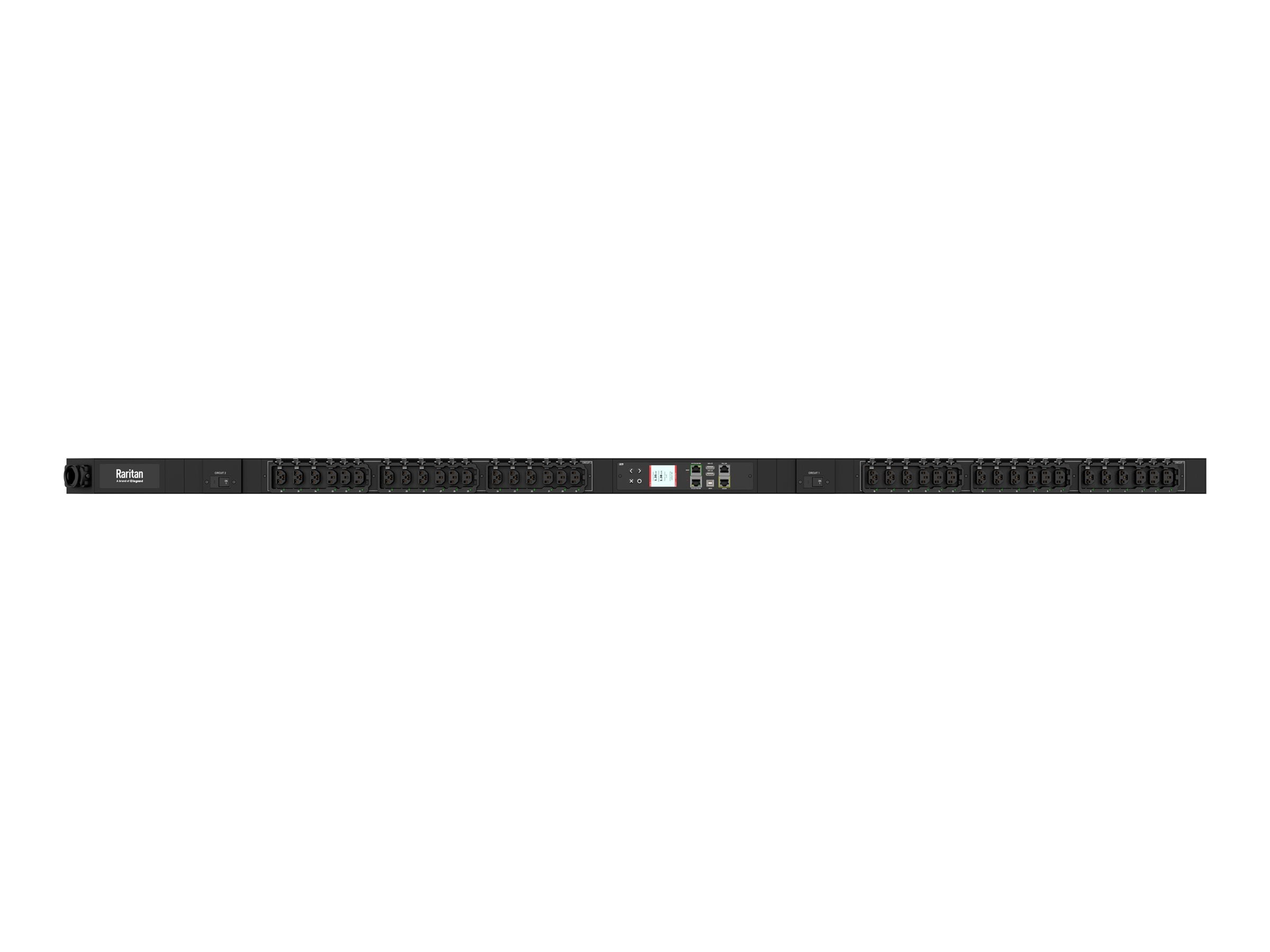

Raritan PX4-57A4-E7 - Power distribution unit (rack-mountable) - AC 230 V - 7400 VA - Ethernet 10/100/1000, Ethernet 10/100, RS-232, USB - input: IEC 60309 2P+E - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx) - 10 ft cord - black powder coat
-
Versatile Connectivity
The Raritan PX4-57A4-E7 includes multiple connector types such as 4-pin USB Type-A and Type-B, along with various management interfaces over Ethernet and RS-232, allowing for a wide range of connectivity options.
-
Robust Power Management
With a power capacity of 7400 VA and support for 32 A of current, this unit efficiently manages power distribution while providing metering capabilities per input line and output receptacle.
-
Environmental Monitoring Features
The integrated environmental sensor readiness supports proactive management of environmental conditions, ensuring that equipment operates within safe limits.
-
Enhanced Safety Features
Circuit breaker protection and overload protection mechanisms safeguard connected devices from power surges and overloads, promoting safe operation.
-
User-Friendly Design
The LCD display makes it easy for users to monitor key power metrics, while the reset button allows for quick handling of any issues that may arise.
The Raritan PX4-57A4-E7 is a power distribution unit designed to meet the diverse needs of equipment management. With a 3 m power cable, it efficiently distributes power while maintaining compliance with standards such as ICES-003, RoHS, and FCC Part 15 A. The unit features an extruded aluminum housing and includes a user-friendly reset button for quick troubleshooting. Integrating environmental monitoring capabilities, this PDU operates effectively in humidity ranges of 5 to 95% (non-condensing) and supports a maximum operating temperature of 60°C, making it suitable for various environments. The LCD display provides real-time data on voltage, current, and power metrics, ensuring performance management with capabilities for remote monitoring and configuration through protocols including SNMP and Telnet.
- Equipped with 36 output connectors to support multiple devices
- Features comprehensive monitoring with active power and current meters
- Designed with a bottom-front feed cord entry for easy installation
- Includes environmental sensor readiness for enhanced system monitoring
- Supports hot-swappable controller for seamless upgrades
