This rack power distribution unit is perfect for data center operators, IT infrastructure managers, and facilities engineers who need reliable power distribution with comprehensive monitoring capabilities. Our power distribution unit rack mount solution delivers:
-
19 rack power distribution unit design optimized for standard server cabinet installations
-

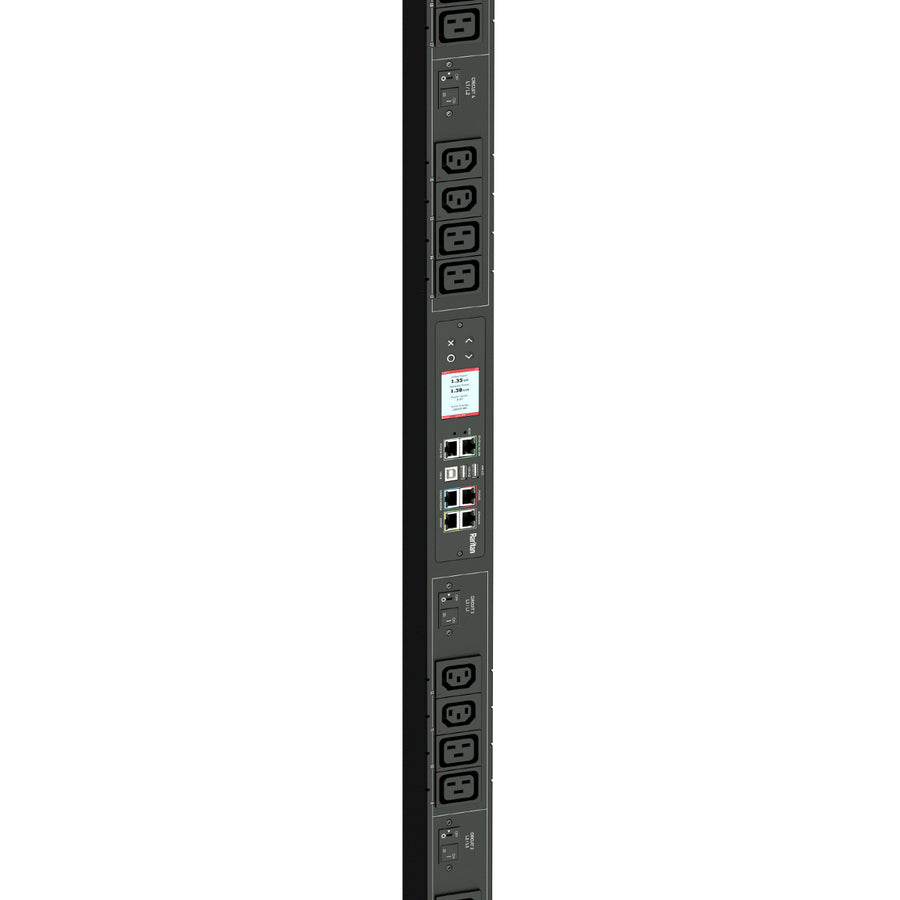

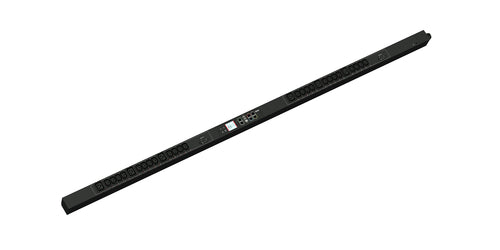

Rack mounted power distribution unit with vertical zero-U form factor for space optimization
-
Metered rack power distribution unit with real-time power consumption monitoring
-
Power distribution unit data center grade reliability and enterprise management features
Key Features
- Professional rack power distribution unit with comprehensive outlet monitoring
-
Power distribution unit rack mount design with vertical installation capability
-
19 rack power distribution unit compatible with standard server racks
-
Rack mounted power distribution unit with zero-U space-saving configuration
-
Metered rack power distribution unit providing detailed power analytics
- Enterprise-grade power distribution unit data center management platform

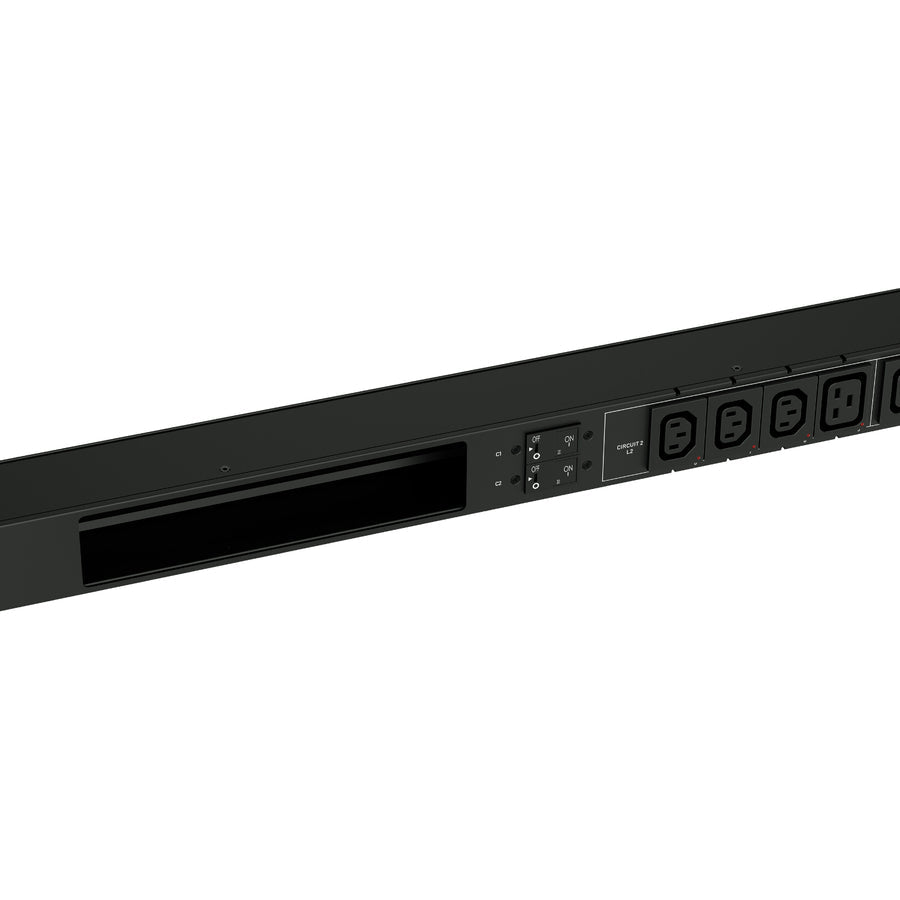

- High-density outlet configuration with IEC connectors
- Environmental monitoring with temperature and humidity sensors
Technical Specifications
| Manufacturer |
Raritan |
| Model Number |
PX3-5870V |
| Product Line |
Dominion PX |
| Type |
Rack Power Distribution Unit |
| Form Factor |
Zero-U Vertical Rack Mount |
| Input Voltage |
208V AC Three Phase |
| Input Current |
30A Maximum |
| Input Frequency |
50/60 Hz |
| Input Connection |
NEMA L21-30P (Locking) |
| Output Outlets |
42x C13 + 6x C19 IEC Outlets |
| Power Rating |
14.4kW @ 208V |
| Circuit Configuration |
3-Phase, 4-Wire + Ground |
| Circuit Protection |
30A input circuit breaker |
| Power Monitoring |
Per-outlet and total power metering |
| Current Monitoring |
RMS current measurement per phase |
| Voltage Monitoring |
RMS voltage per phase to neutral/ground |
| Power Factor |
True power factor and reactive power calculation |
| Energy Monitoring |
kWh accumulation with reset capability |
| Environmental Sensors |
Integrated temperature and humidity monitoring |
| Network Interface |
10/100/1000 Mbps Gigabit Ethernet |
| Network Protocols |
HTTP/HTTPS, SNMP v1/v2c/v3, SSH, Telnet, Modbus TCP |
| API Support |
RESTful API, JSON-RPC 2.0 |
| User Interface |
Responsive HTML5 web interface |
| Security Features |
SSL/TLS, LDAP/Active Directory, role-based access |
| Data Logging |
Internal data storage with configurable intervals |
| Alarm Thresholds |
Configurable warning and critical thresholds |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-25°C to 65°C (-13°F to 149°F) |
| Humidity Range |
8% to 90% Relative Humidity (Non-Condensing) |
| Dimensions (WxDxH) |
2.2" x 20.5" x 84.8" (56 x 521 x 2154 mm) |
| Weight |
13.4 lbs (6.1 kg) |
| Mounting |
Zero-U vertical rack mount with toolless brackets |
| Certifications |
UL Listed, cUL, CE Mark, FCC Part 15 Class A, RoHS |
| Warranty |
3 Years Limited Hardware Warranty |
| MTBF |
>50,000 hours at 25°C |
| Compatible Systems |
Servers, network switches, storage arrays, blade chassis |
Advanced Power Monitoring Capabilities
This metered rack power distribution unit provides comprehensive power intelligence for optimal data center operations:
Real-Time Power Metering:
-
Per-Outlet Monitoring: Individual power consumption tracking for all 48 outlets
-
Three-Phase Analysis: Comprehensive voltage, current, and power measurement per phase
-
Power Quality Monitoring: Track power factor, frequency, and total harmonic distortion
-
Peak Demand Recording: Capture maximum power consumption for capacity planning
Energy Analytics & Reporting:
-
Historical Trending: Long-term power consumption analysis and forecasting
-
Energy Cost Calculation: Operational cost analysis with configurable utility rates
-
Carbon Footprint Tracking: Environmental impact reporting for sustainability initiatives
-
Billing-Grade Accuracy: Precise measurement for cost allocation and chargeback
High-Density Outlet Configuration
Optimized outlet layout maximizes equipment density in this 19 rack power distribution unit:
Outlet Distribution Benefits:
-
42x C13 Outlets: Standard IEC connectors for servers, switches, and network equipment
-
6x C19 Outlets: High-power connectors for blade server chassis and storage systems
-
Vertical Zero-U Design: Preserves valuable rack space while providing maximum outlet count
-
Color-Coded Organization: Visual outlet identification for simplified cable management
Power Distribution Architecture:
-
Three-Phase Input: Balanced load distribution across all three phases
-
High Power Capacity: 14.4kW total capacity supports high-density computing environments
-
North American Standards: 208V three-phase with NEMA L21-30P input connector
-
Flexible Mounting: Rear or side rack installation options for optimal cable routing
Enterprise Network Management
The power distribution unit data center integration provides comprehensive remote management:

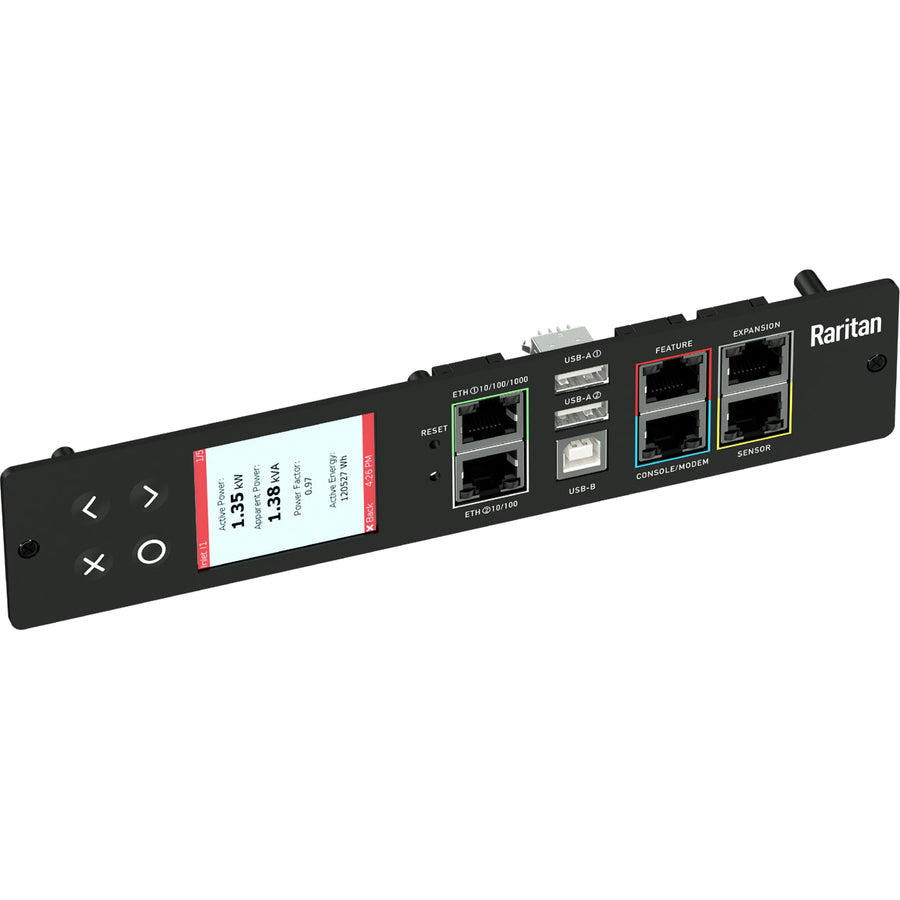

Network Connectivity:
-
Gigabit Ethernet: High-speed network connectivity for real-time monitoring and control
-
Secure Web Interface: HTTPS-enabled browser-based management with responsive design
-
SNMP Integration: Full v1/v2c/v3 support for network management system integration
-
API Access: RESTful APIs and JSON-RPC for custom automation and third-party integration
Advanced Security Features:
-
Multi-Factor Authentication: Enhanced security with LDAP and Active Directory integration
-
Role-Based Access Control: Granular user permissions for different management roles
-
Comprehensive Audit Logging: Detailed activity tracking for compliance and security
-
Encrypted Communications: SSL/TLS encryption for all network communications
Environmental Intelligence
Integrated environmental monitoring enhances rack mounted power distribution unit capabilities:
Temperature & Humidity Monitoring:
-
Real-Time Sensing: Continuous temperature and humidity measurement at rack level
-
Hot Spot Detection: Early identification of thermal issues before equipment damage
-
Cooling Optimization: Data correlation for HVAC system efficiency improvements
-
Equipment Protection: Automated alerts for environmental conditions outside safe ranges
Predictive Analytics:
-
Thermal Trending: Historical analysis of temperature patterns for capacity planning
-
Power-Temperature Correlation: Analysis of power consumption impact on thermal conditions
-
Airflow Analysis: Understanding of cooling requirements based on power usage
-
Preventive Maintenance: Predictive alerts based on environmental and power signatures
Data Center Applications
This enterprise rackmount power distribution unit serves critical infrastructure requirements:
High-Density Computing:
-
Server Farms: Power distribution for high-density 1U and 2U server deployments
-
Blade Server Chassis: Support for multi-blade computing platforms with individual monitoring
-
Storage Infrastructure: Power management for SAN, NAS, and distributed storage systems
-
Network Core Equipment: Reliable power for switches, routers, and telecommunications gear
Mission-Critical Environments:
- Financial services data centers requiring 99.999% uptime
- Healthcare facilities with strict power monitoring and compliance needs
- Government and defense installations with enhanced security requirements
- Cloud service providers managing multi-tenant infrastructure
Software Ecosystem Integration
Comprehensive software platform enhances power distribution unit rack mount capabilities:
Raritan Management Platform:
-
Power IQ DCIM: Enterprise data center infrastructure management and analytics
-
Xerus Mobile: iOS and Android apps for remote PDU management and monitoring
-
EMX Environmental: Integrated environmental monitoring and alerting platform
-
CommandCenter NOC: Centralized network operations center for multi-site management
Third-Party Integration Support:
-
DCIM Platforms: Native integration with Nlyte, Sunbird, Schneider EcoStruxure, and others
-
Virtualization Management: VMware vCenter and Microsoft Hyper-V integration
-
Network Management: Integration with enterprise NMS platforms and SIEM systems
-
Building Automation: BACnet and Modbus support for facility management systems
Installation & Deployment
Professional installation features optimize power distribution unit rack mount deployment:
Zero-U Mounting Advantages:
-
Space Preservation: Vertical mounting preserves all 42U of rack space for IT equipment
-
Flexible Placement: Front, rear, or side mounting options for optimal cable management
-
Toolless Installation: Quick mounting with included brackets and hardware
-
Cable Organization: Integrated cable routing guides for professional installations
Configuration & Commissioning:
-
Auto-Discovery: Automatic network detection and IP configuration
-
Template Provisioning: Bulk configuration deployment for multiple PDUs
-
Remote Setup: Complete configuration without requiring physical access
-
Configuration Backup: Settings preservation and disaster recovery capabilities
Compliance & Reliability
Enterprise-grade reliability ensures 19 rack power distribution unit dependability:
Safety & Regulatory Compliance:
-
UL Listed: Full UL and cUL certification for North American installations
-
CE Marking: European conformity for international deployments
-
FCC Compliance: Class A electromagnetic compatibility certification
-
RoHS Compliant: Environmental safety and material compliance
Reliability Features:
-
High MTBF: Greater than 50,000 hours mean time between failures at 25°C
-
Robust Construction: Industrial-grade components for demanding environments
-
Redundant Design: Multiple protection circuits and failsafe mechanisms
-
Extended Warranty: 3-year comprehensive hardware warranty coverage
Advanced Analytics & Reporting
Comprehensive data analysis capabilities enhance metered rack power distribution unit value:
Power Analytics Dashboard:
-
Real-Time Visualization: Live power consumption graphs and trending displays
-
Efficiency Metrics: Power usage effectiveness (PUE) and infrastructure efficiency calculations
-
Capacity Planning: Growth analysis and future infrastructure requirement projections
-
Cost Management: Detailed cost allocation and departmental chargeback reporting
Operational Intelligence:
-
Threshold Management: Configurable alerts for power, environmental, and operational parameters
-
Historical Analysis: Long-term trending for optimization and planning decisions
-
Comparative Reporting: Rack-to-rack and site-to-site performance comparisons
-
Export Capabilities: Data export for external analysis and business intelligence systems
Scalability & Future-Proofing
Designed for growth, this power distribution unit data center solution scales with infrastructure needs:
Expandability Features:
-
Modular Architecture: Easy addition of monitoring capabilities and expansion modules
-
Software Updates: Regular firmware updates with new features and enhancements
-
Protocol Support: Ongoing addition of new communication protocols and standards
-
Hardware Compatibility: Forward and backward compatibility with Raritan ecosystem
Investment Protection:
-
Long Product Lifecycle: Extended support and availability for mission-critical installations
-
Upgrade Path: Clear migration strategy to next-generation power management platforms
-
Standard Compliance: Support for emerging data center and power management standards
-
Vendor Ecosystem: Broad third-party integration support for technology evolution
Frequently Asked Questions
Q: What are the benefits of using a vertical rack power distribution unit design?
A: The vertical rack power distribution unit design maximizes rack space utilization by mounting alongside the equipment rack without consuming valuable U-space. This configuration provides 48 high-density outlets while preserving all 42U for servers and network equipment, making it ideal for high-density data center environments.
Q: How does the monitoring capability enhance data center operations?
A: This metered rack power distribution unit provides per-outlet power monitoring, enabling precise capacity planning, cost allocation, and energy efficiency optimization. The real-time monitoring includes power quality analysis, environmental sensors, and predictive analytics that help prevent downtime and optimize infrastructure performance.
Q: What makes this suitable for enterprise data center environments?
A: The power distribution unit data center features include enterprise-grade reliability with >50,000-hour MTBF, comprehensive security with LDAP integration, SNMP management, and compatibility with major DCIM platforms. It supports high-density 14.4kW power capacity with three-phase distribution for mission-critical applications.
Q: How does this integrate with existing infrastructure management systems?
A: The 19 rack power distribution unit provides comprehensive integration through Gigabit Ethernet, SNMP v1/v2c/v3, RESTful APIs, and direct compatibility with major DCIM platforms including Nlyte, Sunbird, and Schneider EcoStruxure. It also supports building management protocols like BACnet and Modbus for facility-wide integration.
Q: What environmental monitoring capabilities are included?
A: Integrated temperature and humidity sensors provide real-time environmental monitoring at the rack level, enabling hot spot detection, cooling optimization, and equipment protection. The system correlates environmental data with power consumption for comprehensive data center intelligence and predictive maintenance capabilities.
Q: Can this handle high-power blade server and storage deployments?
A: Yes, the rack mounted power distribution unit is specifically designed for high-density applications with 14.4kW capacity, three-phase power distribution, and a mix of 42x C13 and 6x C19 outlets. The C19 outlets support high-power equipment like blade chassis and storage arrays, while maintaining individual outlet monitoring for all connections.
