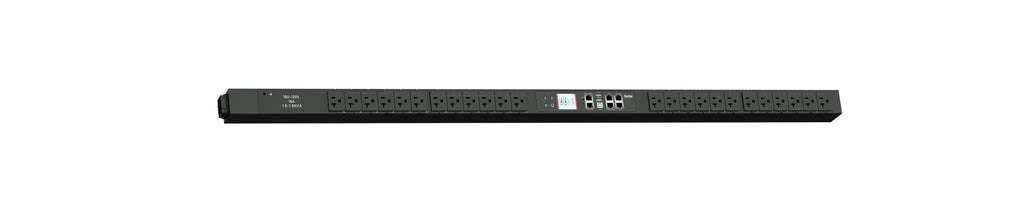

The Raritan Dominion PX PX3-5802V is a high-quality rack power distribution unit designed for precise energy management in data centers. It offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with ± 1% billing-grade accuracy. With its embedded processor, energy metering, and remote monitoring capabilities, this PDU is ideal for IT managers seeking reliable and efficient power distribution solutions.
Key Features
-
Smart Power Monitoring: Real-time monitoring of power usage statistics.
-
Cascading Capability: Allows cascading up to 16 PDUs using a single Ethernet or USB connection.
-
Remote Management: Provides the ability to manage the PDU remotely via network interfaces.
-
Rack Mount Design: Fits seamlessly into 19-inch server racks.
Technical Specifications
| Specification |
Details |
| Manufacturer |
Raritan |
| Model Number |
PX3-5802V |
| Voltage |
120V |
| Maximum Capacity |
1.9kVA / 1900 VA |
| Number of Outlets |
24 |
FAQs
Q: What is the main advantage of using the Raritan PX3-5802V?
A: Its advanced energy metering and remote management are perfect for efficient power distribution and monitoring in data centers.
Q: Can this PDU be used in non-standard rack sizes?
A: While optimized for 19-inch racks, consult specifications for other compatibility.
