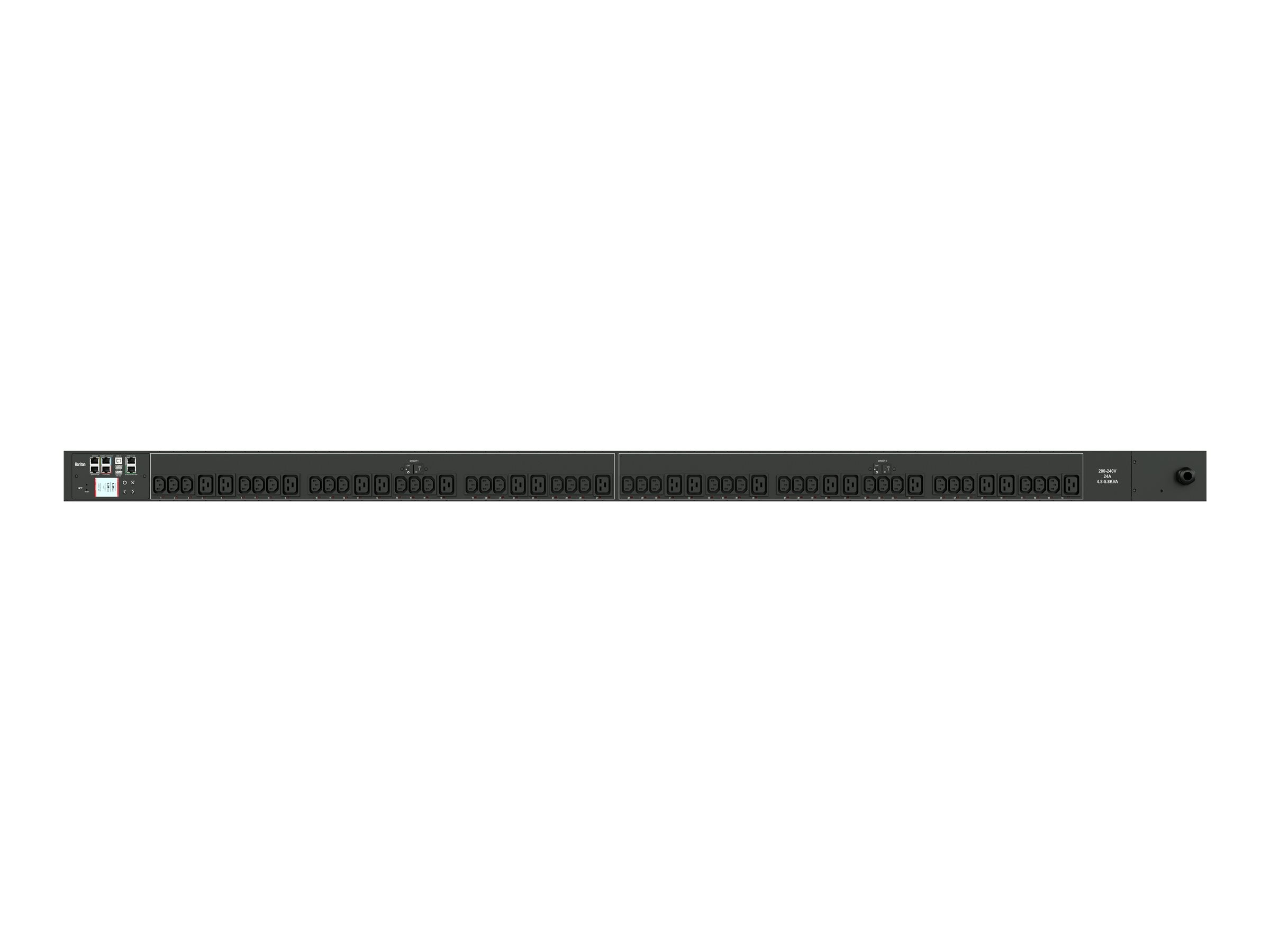

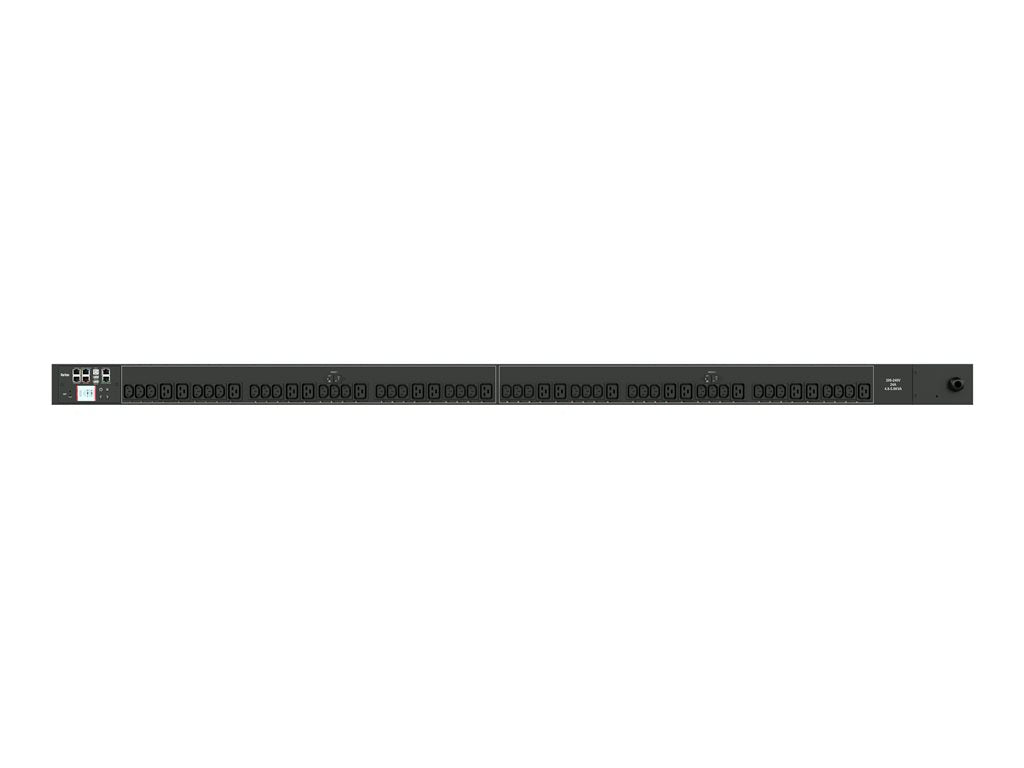

Raritan PX3-5553-N1Q1 - Power distribution strip (rack-mountable) - AC 208 V - 5000 VA - 1-phase - RS-232, USB, Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 54 (36 x IEC 60320 C13, 18 x IEC 60320 C19) - 0U - 10 ft cord - green
-
Metering at the circuit breaker
Metering at the rack PDU circuit breaker provides early warning if a circuit is becoming heavily loaded and runs the risk of tripping. Typically, users receive an alert based on a pre-existing threshold that informs them when power demands need to be reduced. Branch circuit metering allows users to add new devices to the cabinet or rack without having to worry about tripping the circuit breaker.
-
Metering at the inlet level
Metering at the inlet helps users determine power usage and available capacity at the rack which makes it easier to provision equipment. By metering at the inlet-level, users can avoid overloading circuits and more easily calculate efficiency metrics like Power Usage Effectiveness (PUE).
-
Metering at the outlet
Like metered inlet PDUs, outletmetered models helps users determine power usage and available capacity at the rack. More importantly, outlet-level metering allows users to understand power consumption at the device or server-level in order to identify ghost servers, find underutilized servers, and allocate costs to specific business units or customers.
-
Circuit breaker trip status intelligence: a raritan innovation
Because delivering reliable power is the primary function of the PX intelligent PDU, Raritan developed an exclusive way for users to be alerted in the event of a tripped circuit breaker.
-
Low-profile flush mount circuit breakers
Eliminate the need to stock fuses, have licensed electricians change fuses, and reduce the possibility of installing an incorrect fuse compromising safety and voiding product warranties. Rack accessibility is improved by eliminating circuit breaker dog houses.
-
Built-in failover power
Using the expansion port available on some PX models helps maintain network connectivity and power between two connected PDUs. Receiving immediate outage alerts leads to faster remediation, allowing you to maintain full control over the peripherals connected to your PDU and devices cascaded downstream.
-
Circuit breaker trip alarming
Standard on all PX intelligent PDUs, circuit breaker trip alarming enables detailed power management for every branch circuit of your PDU - know which circuit breaker has tripped and why with voltage and current monitoring. While facility branch circuit monitoring won't detect power supply failure on a server, Raritan's circuit breaker trip detection in the cabinet will alert you immediately.
-
Energy efficient latching relays
PX 5000 Series PDUs are equipped with bi-state latching relays, making outlet switching safer while consuming 70% less energy than conventional alternatives. Sophisticated outlet sequencing can power on outlets individually or in groups, in a prescribed order, to minimize in-rush current overloading. Alternatively, latching relays can be configured to retain its on/off state permanently - so that critical power is maintained even in the case of PDU failure.
-
Standard Gigabit Ethernet port
Raritan's IX7 generation controller provides standard Gigabit Ethernet for seamless connectivity to modern switching infrastructure. It will ease your PDU's implementation and allow for future network topologies.
-
Wi-Fi connectivity
Run out of network drops? No problem. With USB Wi-Fi, Raritan intelligent PDUs can be networked and cascaded without additional expense.
Raritan intelligent PDUs provide hundreds of metering and sensing points, either embedded in the chassis or from optional peripherals. As a standard, all PX models are equipped with inlet and circuit breaker monitoring and offer advanced outlet level monitoring capabilities.
