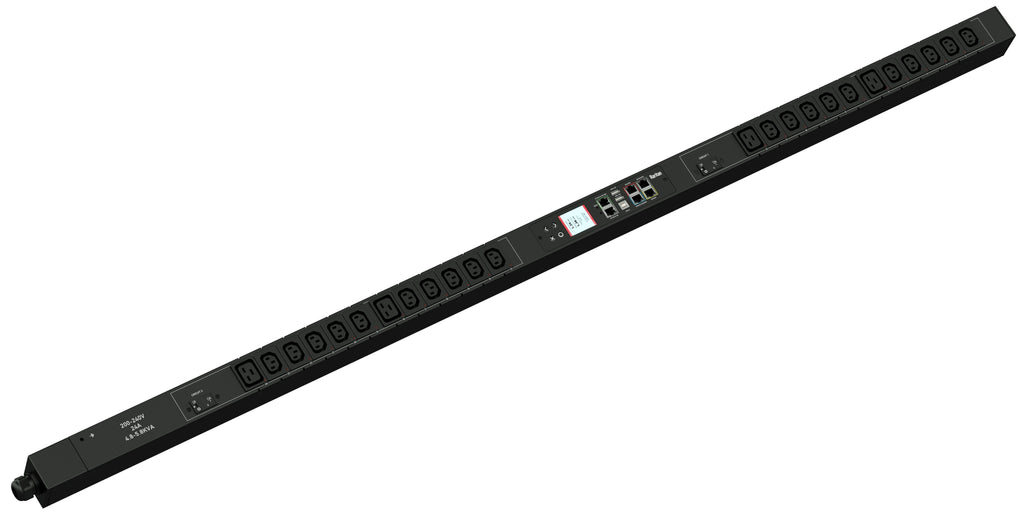

This switched power distribution unit is perfect for data center managers, IT professionals, and facilities engineers who need comprehensive power monitoring and remote outlet control capabilities. Our monitored power distribution unit delivers:
-
Switched power distribution unit functionality with individual outlet control and remote power cycling
-
Metered power distribution unit capabilities with real-time power consumption monitoring
-
Rack mounted power distribution unit design optimized for standard 19-inch server racks
-
Smart power distribution unit with advanced analytics and environmental monitoring
Key Features
- Advanced switched power distribution unit with individual outlet switching
- Professional monitored power distribution unit with comprehensive metering
-
Metered power distribution unit providing real-time power consumption data
-
Smart power distribution unit with web interface and SNMP support
-
Rack mounted power distribution unit with 1U form factor
-
Managed power distribution unit with role-based access control
- Environmental monitoring with temperature and humidity sensors
- Zero-U vertical mounting option for space optimization
Technical Specifications
| Manufacturer |
Raritan |
| Model Number |
PX3-5497V-C5 |
| Product Line |
Dominion PX |
| Type |
Switched Monitored Power Distribution Unit |
| Form Factor |
Zero-U Vertical Rack Mount |
| Input Voltage |
400V AC Three Phase |
| Input Current |
16A Maximum |
| Input Frequency |
50/60 Hz |
| Input Connection |
IEC 60309 3P+N+E 16A (Red) |
| Output Outlets |
21x C13 + 6x C19 IEC Outlets |
| Outlet Control |
Individual switching per outlet |
| Power Rating |
11.1kW @ 400V |
| Circuit Protection |
16A input circuit breaker |
| Power Monitoring |
Per-outlet and total power metering |
| Current Monitoring |
RMS current measurement |
| Voltage Monitoring |
RMS voltage per phase |
| Power Factor |
True power factor calculation |
| Energy Monitoring |
kWh accumulation and reset |
| Environmental Sensors |
Integrated temperature/humidity sensors |
| Network Interface |
10/100/1000 Mbps Gigabit Ethernet |
| Network Protocols |
HTTP/HTTPS, SNMP v1/v2c/v3, SSH, Telnet |
| API Support |
RESTful API, JSON-RPC |
| User Interface |
Responsive web GUI |
| Security Features |
SSL/TLS, LDAP/AD, role-based access |
| Switching Technology |
Solid-state relay switching |
| Switching Time |
<1 second per outlet |
| Outlet Sequencing |
Configurable power-on/off delays |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-25°C to 65°C (-13°F to 149°F) |
| Humidity |
8% to 90% Non-Condensing |
| Dimensions (WxDxH) |
2.2" x 20.5" x 72.4" (56 x 521 x 1839 mm) |
| Weight |
11.2 lbs (5.1 kg) |
| Mounting |
Zero-U vertical rack mount |
| Certifications |
UL, cUL, CE, FCC, RoHS |
| Warranty |
3 Years Limited Hardware Warranty |
| Compatible Systems |
Servers, switches, storage arrays, network equipment |
Advanced Switching Capabilities
This switched power distribution unit provides comprehensive outlet control for mission-critical operations:
Individual Outlet Switching:
-
Remote Power Cycling: Restart unresponsive servers and equipment without physical access
-
Sequential Power Control: Configure startup and shutdown sequences to manage inrush current
-
Emergency Shutdown: Immediate power-off capability for critical situations
-
Scheduled Operations: Automate power cycling for maintenance windows
Smart Switching Features:
-
Load Dependency Mapping: Define power relationships between connected equipment
-
Threshold-Based Switching: Automatic actions based on power or environmental conditions
-
Graceful Shutdown Integration: Coordinate with UPS and server management systems
-
Outlet Status Feedback: Real-time confirmation of switching operations
Comprehensive Power Monitoring
The monitored power distribution unit delivers enterprise-grade metering and analytics:
Real-Time Monitoring:
-
Per-Outlet Metering: Individual power consumption tracking for each connected device
-
Three-Phase Monitoring: Comprehensive voltage, current, and power measurement per phase
-
Power Quality Analysis: Monitor power factor, frequency, and harmonic distortion
-
Peak Demand Tracking: Record maximum power consumption for capacity planning
Advanced Metering Analytics:
-
Energy Cost Analysis: Calculate operational costs with configurable utility rates
-
Carbon Footprint Tracking: Environmental impact reporting and trending
-
Load Trending: Historical analysis for capacity planning and optimization
-
Billing-Grade Accuracy: Precise measurement for cost allocation and billing
Intelligent Power Management
This smart power distribution unit integrates advanced intelligence for optimal data center operations:
Automated Power Management:
-
Load Balancing: Distribute power across phases for optimal efficiency
-
Power Capping: Limit maximum power consumption to prevent overloads
-
Dynamic Load Shedding: Automatic non-critical load disconnection during emergencies
-
Predictive Analytics: Forecast power requirements based on usage patterns
Environmental Intelligence:
-
Temperature Monitoring: Track rack temperature for thermal management
-
Humidity Sensing: Monitor environmental conditions for equipment protection
-
Airflow Analysis: Correlate power usage with cooling requirements
-
Hot Spot Detection: Identify thermal issues before equipment damage
Network Management & Integration
The managed power distribution unit provides comprehensive enterprise integration:
Network Connectivity:
-
Gigabit Ethernet: High-speed network connectivity for real-time monitoring
-
Secure Web Interface: HTTPS-enabled browser-based management
-
SNMP Integration: Full v1/v2c/v3 support for network management systems
-
API Access: RESTful APIs for custom automation and integration
Security & Authentication:
-
Multi-Factor Authentication: Enhanced security with LDAP/Active Directory integration
-
Role-Based Access Control: Granular permissions for different user types
-
Audit Logging: Comprehensive activity tracking for compliance
-
Encrypted Communications: SSL/TLS encryption for all network traffic
High-Density Outlet Configuration
Optimized outlet layout for maximum equipment density in rack mounted power distribution unit applications:
Outlet Configuration Benefits:
-
21x C13 Outlets: Standard IEC connectors for servers and network equipment
-
6x C19 Outlets: High-power connectors for blade servers and storage systems
-
Vertical Zero-U Design: Maximize rack space utilization
-
Color-Coded Outlets: Easy identification and cable management
Power Distribution Optimization:
-
Three-Phase Input: Balanced load distribution across all phases
-
High Power Density: 11.1kW capacity in compact vertical form factor
-
International Compatibility: 400V European and international power standards
-
Flexible Installation: Rear or side rack mounting options
Data Center Applications
This enterprise server power distribution unit serves critical infrastructure applications:
High-Density Computing:
-
Blade Server Chassis: Power and monitor high-density computing platforms
-
Storage Arrays: Manage SAN and NAS systems with individual outlet control
-
Network Infrastructure: Power switches, routers, and telecommunications equipment
-
Virtualization Hosts: Support hypervisor platforms with intelligent power management
Mission-Critical Environments:
- Financial services data centers with strict uptime requirements
- Healthcare facilities requiring reliable power monitoring
- Government and defense installations with security compliance needs
- Cloud service providers managing multi-tenant environments
Advanced Analytics & Reporting
Comprehensive data analysis capabilities for metered power distribution unit optimization:
Power Analytics:
-
Trending Reports: Historical power consumption analysis and forecasting
-
Efficiency Metrics: Power usage effectiveness (PUE) calculations
-
Cost Allocation: Detailed billing and chargeback reporting
-
Capacity Planning: Growth analysis and infrastructure planning tools
Environmental Analytics:
-
Thermal Analysis: Temperature correlation with power consumption
-
Cooling Efficiency: HVAC optimization recommendations
-
Equipment Health: Predictive maintenance based on power signatures
-
Compliance Reporting: Environmental and energy efficiency documentation
Installation & Deployment
Professional installation features for 1u power distribution unit equivalent vertical mounting:
Zero-U Installation Advantages:
-
Space Optimization: Vertical mounting preserves valuable rack units
-
Easy Access: Front or rear rack installation options
-
Cable Management: Integrated routing for organized installations
-
Tool-Free Mounting: Quick installation with included hardware
Configuration & Commissioning:
-
Auto-Discovery: Automatic network detection and configuration
-
Bulk Provisioning: Template-based setup for multiple units
-
Remote Configuration: Complete setup without physical access
-
Configuration Backup: Settings preservation for disaster recovery
Software Integration Ecosystem
Comprehensive software platform for smart power distribution unit management:
Raritan Software Suite:
-
Power IQ: Enterprise power monitoring and analytics platform
-
Xerus Mobile App: Remote PDU management from mobile devices
-
EMX Environmental Monitoring: Integrated environmental management
-
CommandCenter NOC: Centralized monitoring for multiple facilities
Third-Party Integration:
-
DCIM Platforms: Integration with Nlyte, Sunbird, and other DCIM solutions
-
VMware vCenter: Virtual machine-aware power management
-
Microsoft System Center: Windows-based data center management
-
Building Management Systems: BACnet and Modbus protocol support
Frequently Asked Questions
Q: What makes this a switched power distribution unit and how does it benefit data center operations?
A: This switched power distribution unit provides individual on/off control for each of the 27 outlets, enabling remote power cycling, scheduled maintenance operations, and emergency load shedding. The switching capability eliminates costly truck rolls for equipment resets and enables automated power management workflows.
Q: How does the monitoring functionality enhance power management?
A: The monitored power distribution unit provides real-time power consumption data for each outlet and phase, enabling precise capacity planning, cost allocation, and energy efficiency optimization. The monitoring includes power quality analysis, environmental sensors, and predictive analytics for proactive management.
Q: What are the advantages of the zero-U vertical design?
A: The vertical rack mounted power distribution unit design preserves valuable rack units while providing high outlet density. This configuration is ideal for dense server deployments where horizontal rack space is premium, offering 11.1kW capacity with 27 outlets in a space-efficient form factor.
Q: How does this smart power distribution unit integrate with existing infrastructure?
A: The smart power distribution unit provides comprehensive integration through Gigabit Ethernet, SNMP, RESTful APIs, and direct compatibility with major DCIM platforms. It supports LDAP authentication, building management protocols, and includes mobile app access for complete infrastructure integration.
Q: What environmental monitoring capabilities are included?
A: Integrated temperature and humidity sensors provide real-time environmental monitoring, enabling hot spot detection, cooling optimization, and equipment protection. The environmental data correlates with power consumption for comprehensive data center intelligence and predictive maintenance capabilities.
Q: Can this metered power distribution unit handle three-phase European power standards?
A: Yes, the metered power distribution unit is designed for 400V three-phase European and international power standards with IEC 60309 input connector. It provides balanced load distribution across all phases with comprehensive per-phase monitoring and 16A maximum current rating for safe operation.
