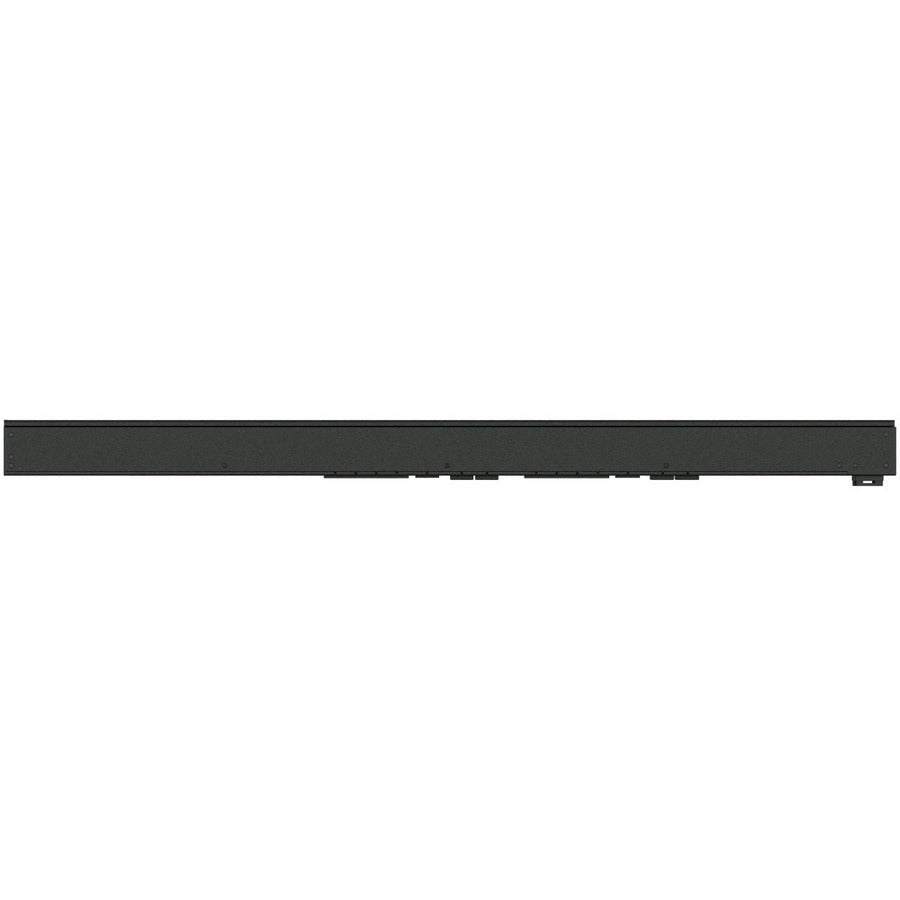

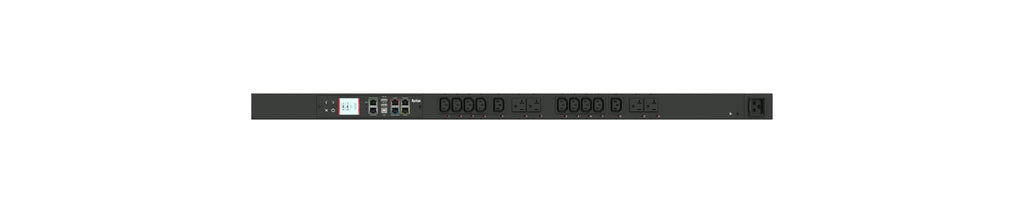

The Raritan PX3-5334 Monitored PDU offers intelligent power distribution with advanced monitoring and control capabilities ideal for high-density data centers. Featuring a Zero U vertical design, this PDU efficiently utilizes rack space while providing convenient access and management of power distribution. Key benefits include:
-
Advanced Power Monitoring: Provides real-time data on power consumption, voltage, current, and power factor per outlet for detailed energy management and efficiency optimization.
-
Switched Outlet Control: Enables individual outlet management for remote power cycling, load balancing, and operational convenience.
-
Zero U Rack Design: Maximizes space efficiency by mounting vertically, allowing for superior airflow and cable management.
-
Eco-Friendly Operations: Helps reduce overall carbon footprint with real-time monitoring and data analysis to understand and optimize energy use.
-
Network Compatibility: Supports SNMP, HTTP/HTTPS, SSH, and Telnet for ease of integration into existing data management systems.
Technical Specifications
| Manufacturer |
Raritan |
| Model Number |
PX3-5334 |
| Voltage |
120V, 1-Phase |
| Current |
16A |
| Power Rating |
1.9kVA |
| Outlet Types |
10 x IEC C13, 4 x NEMA 5-20R |
| Mounting |
Zero U Vertical Mount |
| Interface |
Ethernet 10/100 Mbps |
Frequently Asked Questions
What is an Intelligent PDU? An intelligent PDU like the PX3-5334 provides advanced monitoring, control, and management functionalities, enabling data-driven insights for power and energy optimization.
How does the switching feature work? Users can remotely control each outlet for power cycling or load adjustments, enhancing operational efficiency and emergency response capabilities.
What are the installation requirements? The Zero U design requires a vertical rack position and Ethernet connectivity for network access, suitable for standard data center environments.
