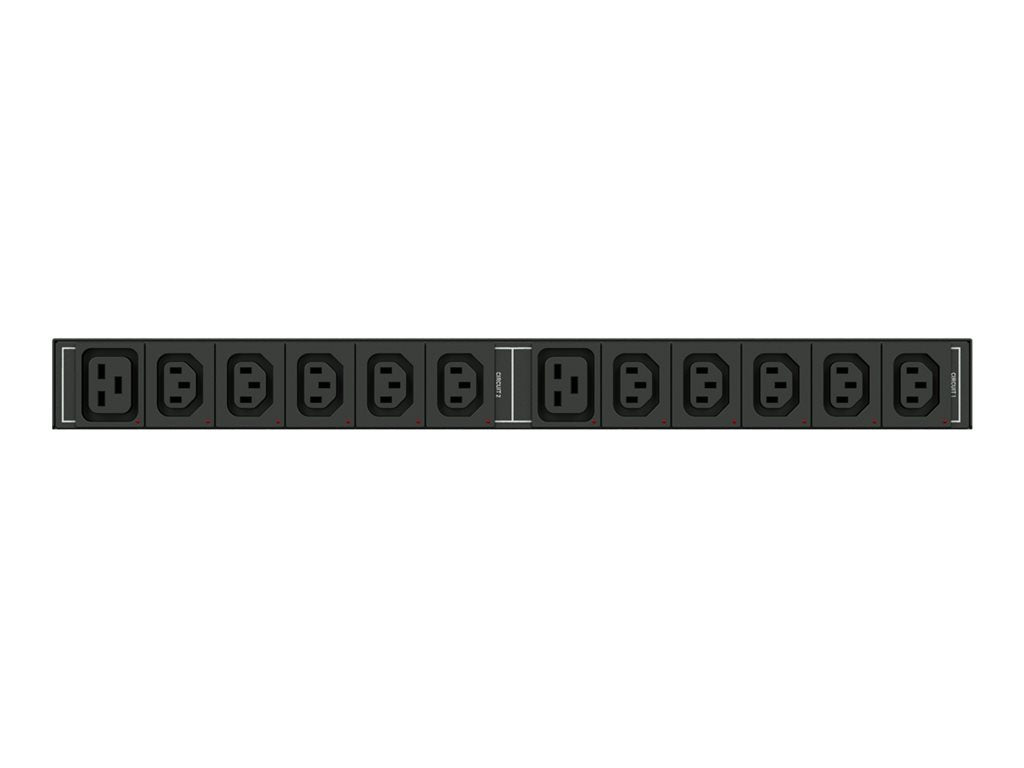

Raritan PX3-5288R Intelligent Rack PDU
The Raritan PX3-5288R is a single-phase 208V intelligent rack PDU engineered for data centers and server environments requiring advanced energy metering and remote power management. This 24A rack power distribution unit delivers precise outlet-level monitoring, cascading capabilities, and embedded intelligence—ideal for IT managers seeking real-time visibility into power consumption across distributed infrastructure.
With 12 outlets, gigabit Ethernet connectivity, and support for daisy-chaining up to 16 PDUs, the PX3-5288R simplifies power infrastructure scaling while reducing operational overhead. Its onboard processor enables independent operation and detailed energy analytics without reliance on external management systems.
Key Features
- Single-phase 208V, 24A intelligent rack PDU with 12 outlets
- Onboard embedded processor for autonomous monitoring and control
- Gigabit Ethernet and USB connectivity for cascading up to 16 units
- Real-time voltage, current, power, energy, and power factor measurements
- Outlet-level metering for granular power consumption tracking
- Remote management and monitoring capabilities
- UL listed for safety and reliability
- 2-year manufacturer warranty included
Technical Specifications
| Specification |
Details |
| Manufacturer |
Raritan |
| Model |
PX3-5288R |
| Input Voltage |
Single-phase 208V |
| Amperage Rating |
24A |
| Number of Outlets |
12 |
| Connectivity |
Gigabit Ethernet, USB |
| Cascading Support |
Up to 16 PDUs |
| Monitoring Capabilities |
Voltage, current, power, energy, power factor |
| Processor |
Onboard embedded processor |
| Certifications |
UL listed |
| Warranty |
2 years manufacturer |
Frequently Asked Questions
What makes the Raritan PX3-5288R different from standard rack PDUs?
The PX3-5288R is an intelligent rack PDU featuring an onboard processor and real-time energy metering at the outlet level. Unlike passive PDUs, it provides detailed power analytics, remote monitoring, and cascading management of multiple units—enabling proactive power management and cost optimization in data center environments.
Can I monitor multiple PX3-5288R units from a single connection?
Yes. The intelligent rack PDU supports daisy-chaining up to 16 units via a single Ethernet or USB connection, streamlining management infrastructure and reducing cabling complexity while maintaining independent metering on each unit.
What power measurements does this intelligent PDU provide?
The PX3-5288R delivers comprehensive power analytics including voltage, current, power consumption, cumulative energy usage, and power factor—enabling detailed capacity planning and identification of power-hungry equipment within your rack infrastructure.
Is the Raritan PX3-5288R suitable for mission-critical environments?
Yes. With UL certification, onboard embedded processing for independent operation, and 2-year manufacturer warranty, the PX3-5288R is designed for reliable performance in data centers and other mission-critical power distribution applications.
