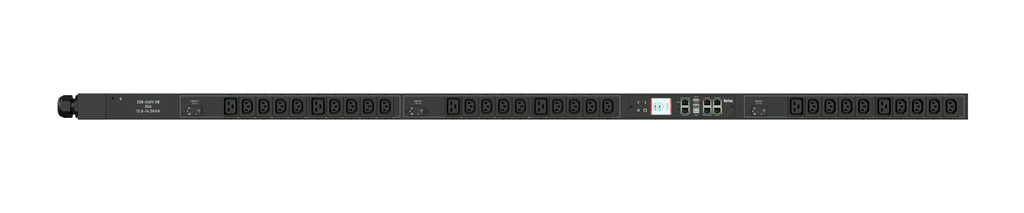

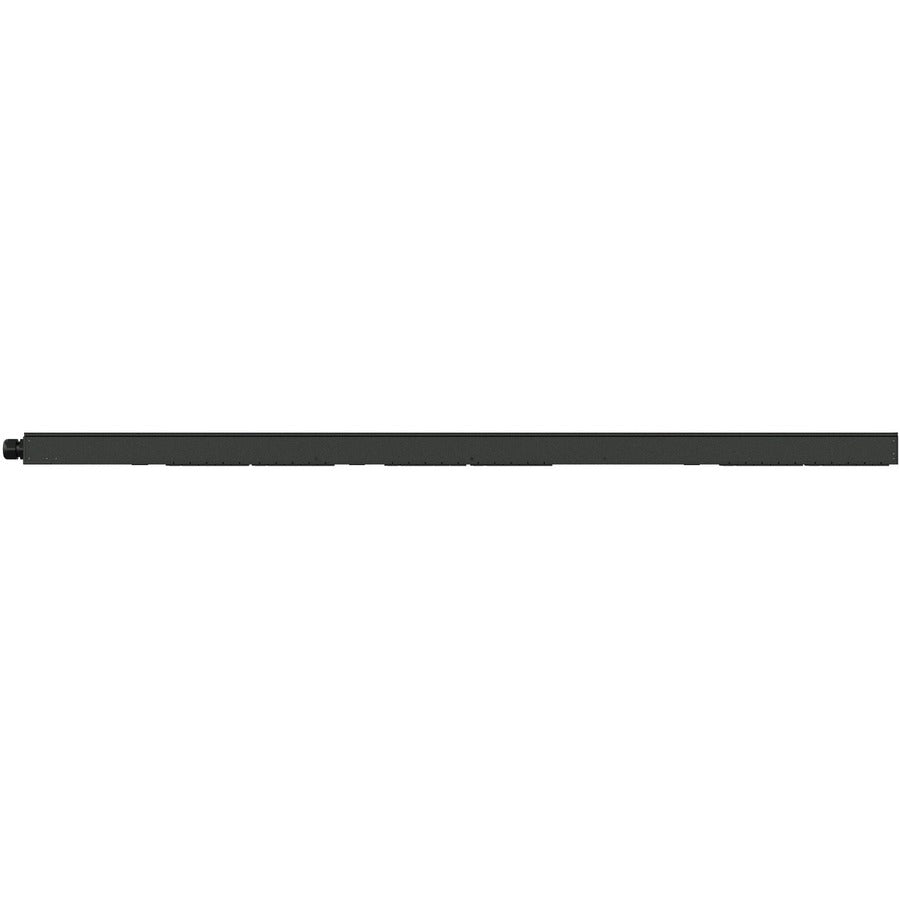

This 208V 3-phase metered PDU is perfect for data center managers and enterprise IT teams who need high-capacity power distribution unit rack mount solutions. Our Raritan PX3-4666V-C5 delivers:
-
Advanced metering capabilities that provide real-time power monitoring and consumption data
-
30 outlet configuration for maximum device density and connectivity
-
3 phase power distribution unit design for efficient high-power applications
-
CS8365C input connector for reliable 208V three-phase power connection
Key Features
-
208V three-phase power delivery to optimize energy efficiency
-
30 AC outlets providing comprehensive device support
- Optimized for server power distribution unit applications
- Consistent metered power monitoring for energy management
-
0U rack mount design to maximize data center space utilization
-
Network RJ-45 connectivity for remote monitoring and management
- Compatible with power distribution unit data center infrastructure
Technical Specifications
| Manufacturer |
Raritan |
| Model Number |
PX3-4666V-C5 |
| Type |
208V 3-Phase Metered PDU |
| Input Voltage |
208V AC 3-Phase |
| Input Connector |
CS8365C |
| Outlet Configuration |
30 AC Outlets |
| Mounting |
0U Rack-Mountable Power Distribution Unit |
| Monitoring Features |
Real-time power metering and network monitoring |
| Network Interface |
RJ-45 Ethernet for remote management |
| Compatible Systems |
Standard 19-inch server racks and high-power equipment |
Frequently Asked Questions
Q: What are the benefits of a 208V 3-phase power distribution unit?
A: This 3 phase power distribution unit provides superior power efficiency, reduced current draw, and balanced load distribution compared to single-phase alternatives. The 208V configuration is ideal for high-density server environments requiring maximum power delivery.
Q: How does the metering functionality work?
A: Yes, it's engineered as a metered power distribution unit that provides real-time monitoring of voltage, current, power consumption, and energy usage through the integrated network interface. Monitor remotely via web browser or SNMP.
Q: What type of input connector does this PDU use?
A: The unit features a CS8365C input connector designed for reliable 208V three-phase power connection — perfect for high-capacity data center power infrastructure and enterprise server deployments.
Q: Is this suitable for high-density rack environments?
A: Yes. This rack mounted power distribution unit features a space-saving 0U design that mounts vertically in the rack without consuming valuable rack space, while providing 30 outlets for maximum device density.
208V 3-phase metered PDU with 30 outlets and CS8365C connector. Advanced power monitoring for data center rack mount applications.
