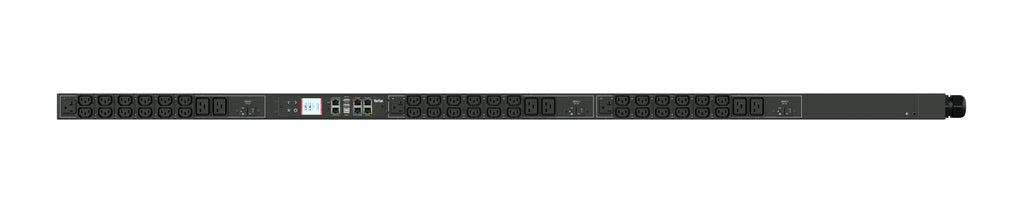

This Raritan PX3-1955V-C5 metered power distribution unit is perfect for data center managers, facility engineers, and IT professionals requiring comprehensive energy monitoring and environmental control for mission-critical infrastructure. Our smart power distribution unit delivers:
-
Energy metering capabilities providing real-time power consumption analytics and cost allocation
-
Remote management functionality enabling centralized monitoring and control via network interface
-
Environmental sensor support for temperature, humidity, and airflow monitoring
-
Power monitoring with inlet, outlet, and circuit-level visibility for comprehensive power analytics
Key Features
-
Metered power distribution unit with advanced energy monitoring and analytics capabilities
-
Remote management via web interface, SNMP, and mobile applications
-
Environmental sensor compatibility for comprehensive facility monitoring
-
Energy monitoring with real-time power consumption, trending, and alerting
-
Smart power distribution with intelligent load balancing and capacity planning
-
Managed power distribution unit functionality with user access controls
-
Data center PDU design optimized for high-density server environments
-
Rack mount power distribution with space-efficient vertical form factor
-
Network connectivity enabling integration with data center management systems
-
Power monitoring accuracy of ±1% for voltage, current, and power measurements
Technical Specifications
| Manufacturer |
Raritan |
| Model Number |
PX3-1955V-C5 |
| Product Type |
Metered Power Distribution Unit |
| Power Rating |
7.3kW Maximum (208V) |
| Input Voltage |
208V Single Phase |
| Input Current |
50A Maximum |
| Input Connector |
NEMA L6-50P (Twist Lock) |
| Output Outlets |
30 x IEC C13 (10A), 6 x IEC C19 (16A) |
| Total Outlets |
36 Outlets |
| Form Factor |
Vertical Rack Mount (0U) |
| Monitoring Type |
Metered (Energy Monitoring) |
| Metering Accuracy |
±1% for voltage, current, power, and energy |
| Network Interface |
Ethernet 10/100 Mbps with embedded web server |
| Communication Protocols |
SNMP v1/v2c/v3, HTTP/HTTPS, SSH, Telnet, Modbus |
| Environmental Monitoring |
Temperature, Humidity, Airflow Sensors (Optional) |
| Display |
Color LCD with real-time power and environmental data |
| Remote Management |
Web Interface, SNMP, Mobile App, API |
| Energy Monitoring |
Real-time consumption, trending, cost allocation |
| Alerting |
Email, SNMP traps, SMS (with gateway) |
| Data Logging |
Historical power consumption and environmental data |
| Power Quality |
Power factor, THD, crest factor monitoring |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Humidity |
10% to 90% RH (non-condensing) |
| Dimensions |
1.7" W x 17.3" D x 44.1" H |
| Weight |
18 lbs (8.2 kg) |
| Mounting |
Vertical rack mount (0U space) |
| Certifications |
UL Listed, CE, FCC, RoHS Compliant |
| Warranty |
3-year comprehensive warranty |
Frequently Asked Questions
Q: What energy monitoring capabilities does this metered power distribution unit provide?
A: This Raritan PX3 energy monitoring PDU delivers comprehensive power analytics including real-time consumption tracking, historical trending, cost allocation, and power quality metrics. The smart power distribution unit monitors voltage, current, power factor, and energy usage at inlet and outlet levels with ±1% accuracy, enabling precise capacity planning and energy cost management.
Q: How does remote management enhance data center operations?
A: The remote management capabilities allow administrators to monitor and control the PDU from anywhere via web interface, SNMP, or mobile applications. This managed power distribution unit provides real-time alerts, automated reporting, and integration with data center infrastructure management (DCIM) systems for centralized facility oversight and proactive maintenance.
Q: What environmental sensor options are available for comprehensive monitoring?
A: This power monitoring PDU supports optional environmental sensor modules for temperature, humidity, and airflow monitoring. The integrated sensors enable comprehensive environmental oversight, providing early warning of potential issues and supporting compliance with industry standards for optimal data center conditions.
Q: How does this metered PDU support energy efficiency initiatives?
A: The energy metering functionality provides detailed consumption analytics enabling identification of inefficient equipment and optimization opportunities. This data center PDU supports sustainability reporting with carbon footprint calculations, power usage effectiveness (PUE) monitoring, and energy cost allocation for accurate chargeback and budget planning.
Raritan PX3-1955V-C5 metered power distribution unit with energy monitoring, remote management, and environmental sensors for data centers.
