The Raritan PX3-1802V Intelligent Rack PDU is perfect for data center managers, IT professionals, and network administrators who need advanced power distribution unit rack mount solutions with comprehensive monitoring and control capabilities. This enterprise-grade power distribution solution delivers:
-
Intelligent power distribution unit technology with real-time monitoring, alerting, and remote management capabilities
-
120V single-phase power supporting up to 24 outlets for comprehensive equipment power distribution
-
Smart power distribution unit features including individual outlet control, power metering, and environmental monitoring
-
Switched power distribution unit functionality enabling remote outlet control and automated power cycling for critical equipment
Key Features
-
24-outlet configuration providing comprehensive power distribution for high-density rack installations
-
Intelligent monitoring with real-time power consumption tracking, voltage monitoring, and environmental sensors
- Advanced network management with SNMP, HTTP/HTTPS, SSH, and Telnet protocols for enterprise integration
-
Individual outlet control enabling remote power cycling, scheduled operations, and load sequencing
-
Rack mount design optimized for standard 19-inch server racks with space-efficient form factor
Technical Specifications
| Manufacturer |
Raritan |
| Model Number |
PX3-1802V |
| Series |
PX3 Intelligent Rack PDU |
| Type |
Intelligent Power Distribution Unit |
| Input Voltage |
120V AC Single Phase |
| Input Frequency |
50/60 Hz |
| Input Connection |
NEMA L5-20P twist lock plug |
| Input Current |
20A maximum |
| Power Rating |
2.4 kVA / 2400 Watts maximum |
| Output Outlets |
24 total outlets |
| Outlet Configuration |
24x NEMA 5-15R outlets |
| Outlet Control |
Individual outlet switching and monitoring |
| Outlet Grouping |
Configurable outlet groups for load management |
| Surge Protection |
Built-in surge protection for all outlets |
| Form Factor |
Rack Mount 1U Height |
| Mounting |
19-inch rack mount with included hardware |
| Dimensions (H x W x D) |
1.75" x 17.2" x 20.5" (44 x 437 x 521 mm) |
| Weight |
12 lbs (5.4 kg) |
| Display |
LCD display with real-time power monitoring |
| LED Indicators |
Power status, network activity, and fault indicators |
| Network Interface |
10/100 Ethernet with RJ-45 connector |
| Network Management |
SNMP v1/v2c/v3, HTTP/HTTPS, SSH, Telnet |
| Web Interface |
Integrated web server for browser-based management |
| Security Features |
SSL/TLS encryption, user authentication, role-based access |
| Communication Ports |
Ethernet, USB, serial console port |
| Environmental Monitoring |
Temperature and humidity sensors (optional) |
| Power Monitoring |
Real-time voltage, current, power, and energy monitoring |
| Metering Accuracy |
±1% for voltage, current, and power measurements |
| Current Monitoring |
Per-outlet and branch circuit current monitoring |
| Power Quality |
Power factor, frequency, and harmonic monitoring |
| Data Logging |
Historical data storage and trend analysis |
| Alerting |
Email, SNMP traps, syslog notifications |
| Threshold Monitoring |
Configurable current, power, and environmental thresholds |
| Load Balancing |
Intelligent load distribution and optimization |
| Scheduling |
Automated outlet control and power sequencing |
| User Management |
Multiple user accounts with role-based permissions |
| API Support |
RESTful API for third-party integration |
| Cascade Support |
Daisy-chain multiple PDUs for unified management |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-4°F to 158°F (-20°C to 70°C) |
| Humidity |
5-95% non-condensing |
| Altitude |
Up to 6,560 ft (2,000 m) above sea level |
| Safety Certifications |
UL Listed, CSA, CE Marked, FCC Class A |
| Environmental |
RoHS compliant, WEEE compliant |
| EMC Compliance |
FCC Part 15 Class A, EN 55022 Class A |
| Circuit Protection |
20A main circuit breaker protection |
| Overload Protection |
Individual outlet overcurrent protection |
| Short Circuit Protection |
Automatic protection with manual reset |
| Ground Fault Protection |
Built-in GFCI protection (where applicable) |
| Power Cord |
6-foot (1.8m) input power cord included |
| Outlet Spacing |
Optimized for standard and transformer-based power adapters |
| Configuration |
Web-based setup wizard and configuration tools |
| Firmware Updates |
Remote firmware updates via network interface |
| Management Software |
Raritan Power IQ DCIM software compatibility |
| Mobile Access |
Mobile-responsive web interface for smartphone/tablet access |
| DCIM Integration |
Compatible with leading data center infrastructure management platforms |
| Redundancy Support |
Dual power feed configurations (model dependent) |
| Installation |
Tool-free rack mounting with included hardware |
| Cable Management |
Integrated cable management features |
| Warranty |
3-year manufacturer warranty |
| Technical Support |
24/7 technical support and online resources |
| Compliance Standards |
IEC 60950-1, UL 60950-1, EN 60950-1 |
| Compatible Systems |
Servers, networking equipment, storage systems, telecommunications equipment |
Frequently Asked Questions
Q: What makes this an intelligent power distribution unit compared to basic PDUs?
A: The Raritan PX3-1802V Intelligent Rack PDU features advanced monitoring, alerting, and control capabilities that go beyond basic power distribution. It provides real-time power metering, individual outlet control, environmental monitoring, and comprehensive network management through SNMP and web interfaces. This smart power distribution unit enables proactive power management, remote troubleshooting, and automated power cycling for improved uptime and operational efficiency.
Q: How does the 120V single-phase configuration benefit data center applications?
A: The 120V single-phase design is ideal for North American data centers and equipment that requires standard voltage power distribution. With 24 outlets and 20A input capacity, this PDU can support multiple servers, networking equipment, and accessories in a single rack unit. The intelligent monitoring ensures optimal power utilization while preventing overload conditions and providing detailed power consumption analytics for capacity planning.
Q: What network management capabilities are included?
A: This network managed PDU includes comprehensive remote management through multiple protocols including SNMP v1/v2c/v3, HTTP/HTTPS web interface, SSH, and Telnet access. The integrated web server provides browser-based configuration and monitoring, while SNMP integration enables seamless integration with enterprise monitoring systems. Email alerts, SNMP traps, and syslog notifications ensure immediate awareness of power events and threshold violations.
Q: How does the individual outlet control enhance equipment management?
A: The switched power distribution unit functionality allows remote control of each of the 24 outlets independently. This enables remote power cycling of unresponsive equipment, scheduled power sequencing during maintenance, and automated load shedding during emergency conditions. Combined with real-time power monitoring, administrators can optimize power usage, reduce energy costs, and maintain equipment uptime through proactive power management strategies.

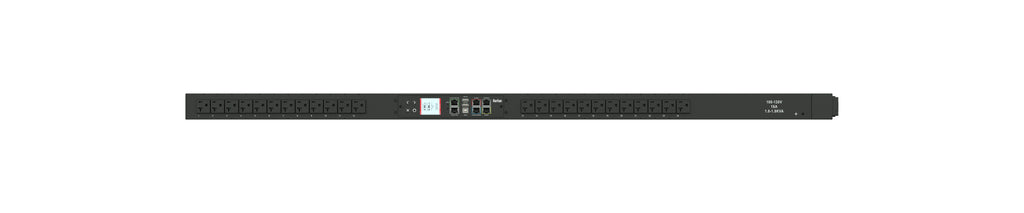

Raritan PX3-1802V intelligent rack PDU with 120V single-phase power, 24 outlets, individual outlet control, and comprehensive network management.
