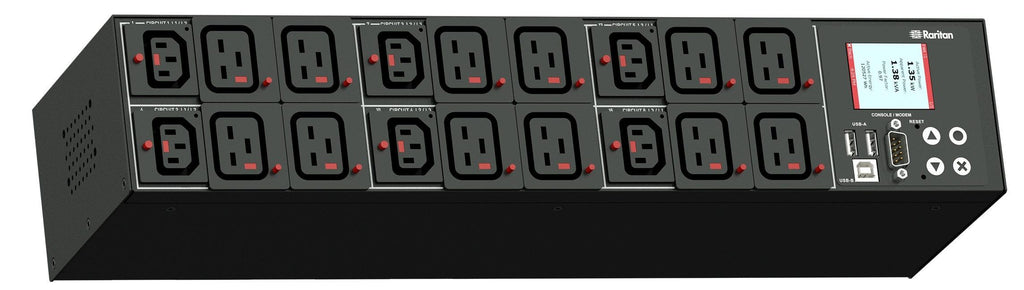

This Raritan PX3-1611R-E2 monitored rack PDU is perfect for data center managers, IT administrators, and facility engineers requiring precise 3-phase power distribution unit monitoring for high-density server environments. Our 208V monitored PDU delivers:
-
14.4kVA power capacity supporting enterprise-grade server and networking equipment
-
Monitored power distribution unit functionality with real-time energy monitoring and analytics
-
3-phase 208V configuration optimized for efficient data center power distribution
-
18-outlet design accommodating diverse equipment power requirements in rack environments
Key Features
-
True monitored rack PDU providing comprehensive real-time power monitoring and analytics
-
3-phase power distribution with 14.4kVA capacity for high-density server loads
-
208V operation optimized for enterprise data center electrical infrastructure
-
18 IEC outlets supporting various international equipment standards
-
CS8365C input connector for reliable 3-phase 4-wire connection
-
Rack mount power distribution with space-efficient vertical form factor
-
Advanced power monitoring with inlet, outlet, and circuit-level metering
-
Network connectivity enabling remote monitoring and management
-
Energy efficiency tracking for cost allocation and sustainability reporting
-
Environmental monitoring with optional temperature and humidity sensors
Technical Specifications
| Manufacturer |
Raritan |
| Model Number |
PX3-1611R-E2 |
| Product Type |
Monitored Rack PDU |
| Power Rating |
14.4kVA Maximum |
| Input Voltage |
208V 3-Phase |
| Input Configuration |
3-Phase 4-Wire (3P4W) |
| Input Connector |
CS8365C (50A, 3-Phase) |
| Output Outlets |
18 x IEC C13/C19 Mixed Configuration |
| Frequency |
50/60 Hz |
| Current Rating |
40A Maximum per Phase |
| Form Factor |
Vertical Rack Mount (0U) |
| Monitoring Type |
Monitored (Real-time Power Analytics) |
| Metering Accuracy |
±1% for voltage, current, and power measurements |
| Network Interface |
Ethernet 10/100 Mbps with web interface |
| Communication Protocols |
SNMP v1/v2c/v3, HTTP/HTTPS, SSH, Telnet |
| Environmental Monitoring |
Optional temperature and humidity sensors |
| Display |
LCD display with power consumption data |
| Outlet Control |
Monitoring only (no switching capability) |
| Circuit Breakers |
Integrated overcurrent protection per phase |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Humidity |
10% to 90% RH (non-condensing) |
| Dimensions |
1.7" W x 17.3" D x 44.1" H |
| Weight |
15 lbs (6.8 kg) |
| Mounting |
Vertical rack mount (0U space) |
| Certifications |
UL Listed, CE, FCC, RoHS Compliant |
| Warranty |
3-year comprehensive warranty |
Frequently Asked Questions
Q: What are the advantages of a monitored power distribution unit over basic PDUs?
A: This monitored rack PDU provides comprehensive real-time power analytics including energy consumption, power factor, and load distribution across all outlets. Unlike basic PDUs, this Raritan PX3 monitored unit enables proactive capacity planning, energy cost allocation, and environmental monitoring for optimized data center operations.
Q: How does 3-phase 208V power distribution benefit high-density server environments?
A: The 3-phase power distribution unit configuration provides superior power efficiency and load balancing for enterprise servers. This 208V 3-phase PDU delivers 14.4kVA capacity while maintaining balanced loads across phases, reducing neutral current and improving overall electrical efficiency compared to single-phase alternatives.
Q: What monitoring capabilities does this data center PDU provide?
A: This server power distribution unit offers inlet-level, outlet-level, and circuit breaker-level monitoring with ±1% accuracy. The integrated power monitoring system tracks voltage, current, power consumption, energy usage, and power factor in real-time, accessible through web interface, SNMP, and mobile applications.
Q: How does the vertical rack mounting design optimize data center space?
A: The vertical rack mount power distribution design occupies zero rack units (0U) while providing 18 outlets for maximum power density. This monitored PDU mounts to the side of standard 19-inch racks, preserving valuable rack space for servers while delivering enterprise-grade power distribution and monitoring capabilities.
Raritan PX3-1611R-E2 monitored rack PDU with 18 outlets, 3-phase 208V, 14.4kVA capacity, real-time power monitoring for data centers.
