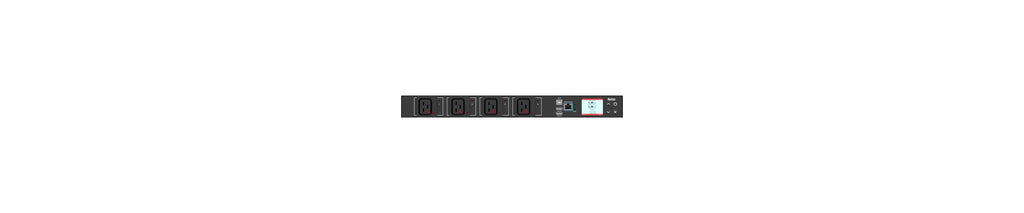

Raritan Px3-1092R-E2F12 Power Distribution Unit (Pdu) 4 Ac Outlet(S) 1U Black

IEC60320 C19, 200 - 240V, IP44, 440 x 133 x 44 mm, 4 kg, Black, 3 m

Raritan PX3-1092R-E2F12. PDU types: Monitored, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 4 AC outlet(s), AC outlet types: C19 coupler, Power plug: IEC 60320. Monitoring: Current, Power, Voltage. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Width: 440 mm, Depth: 133 mm, Height: 44 mm

Monitored rack power distribution unit (1U [horizontal], 7.4kVA, 4 outlets). INPUT: 230v, 32a - IEC 60309 2P+E 6h 32A plug (2P3W); OUTPUT: 4@ C19 Locking, 6@ outlets; on 4@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Max Dimensions 440mm x 133mm x 44mm (17.3in x 5.2in x 1.7in). Max Weight 4 kg. Maximum ambient temperature 60C at full load.
