Wi-Fi, Ethernet, IP44, 400V, 32A, 50 - 60 Hz, 230V, IEC320 C13, IEC320 C19, 59 x 80 x 1981 mm

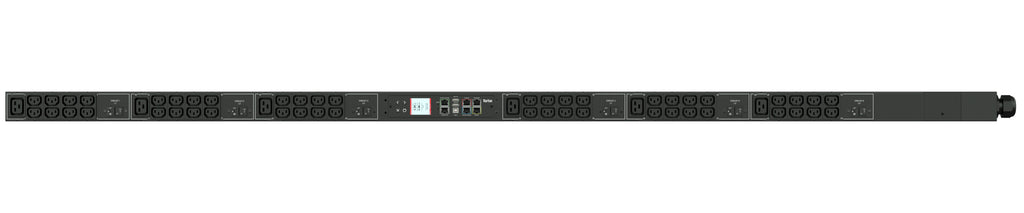

Raritan PX3-1040U-V2. PDU types: Monitored, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 54 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 320. Cable length: 3 m. Monitoring: Humidity, Temperature, Management protocols: HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPC; Modbus over.... Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz
Monitored rack power distribution unit (0U [vertical], 22.2kVA, 54 outlets). INPUT: 400v (3-phase WYE), 32a - IEC 60309 3P+N+E 6h 32A plug (4P5W); OUTPUT: 48@ C13, 6@ C19 outlets; on 6@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Breaker metering and alarming (0V detection). Max Dimensions 59mm x 80mm x 1981mm (2.3in x 3.1in x 78.0in). Max Weight 8 kg. Maximum ambient temperature 60C at full load.
