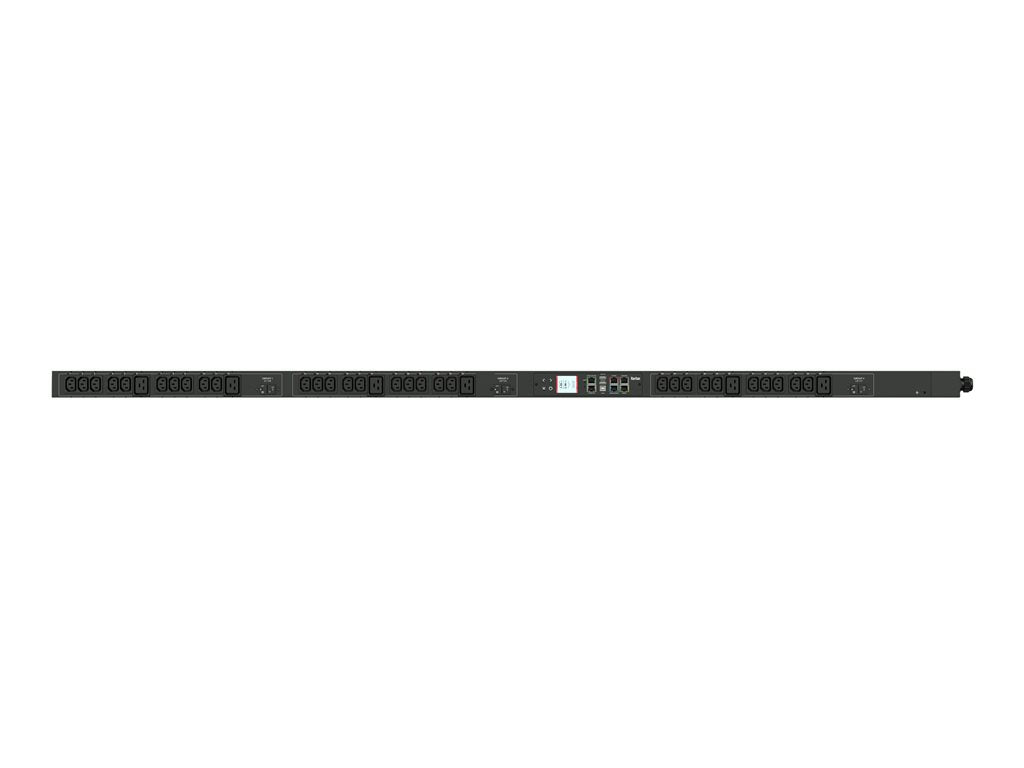

Raritan PX intelligent PX3-5720U-K2 - Power distribution unit (rack-mountable) - AC 208 V - 8600 VA - 3-phase 4 Wire delta - Ethernet 10/100/1000 - input: NEMA L15-30P - output connectors: 36 (30 x IEC 60320 C13, 6 x IEC 60320 C19) - 0U - 10 ft cord - blue
- Intelligent field replaceable controller
- Low-profile flush mount circuit breakers
- kWh metering accuracy
- Circuit breaker trip alarming
- Remote power control/outlet level power management
- Secure locking solutions
Raritan's PX intelligent rack PDU Series offers more than just power distribution - it's a launch pad for real-time remote power monitoring, environmental sensors, and data center infrastructure management.
-
Intelligent field replaceable controller
The flush mount controller offers industrial-grade reliability, configurable firmware, disaster recovery support, and hot swap capability in the event of a malfunction.
-
Low-profile flush mount circuit breakers
Eliminate the need to stock fuses, have licensed electricians change fuses, and reduce the possibility of installing an incorrect fuse compromising safety and voiding product warranties. Rack accessibility is improved by eliminating circuit breaker dog houses.
-
kWh metering accuracy
Incredible metering accuracy of +1/-1% can be measured across real-world loads and all power load types, not just peak loads. The same measurement quality can be observed on all interfaces and sensing points of the PX to ensure the highest degree of reliability.
-
Circuit breaker trip alarming
Circuit breaker trip alarming enables detailed power management for every branch circuit of your PDU - know which circuit breaker has tripped and why with voltage and current monitoring. While facility branch circuit monitoring won't detect power supply failure on a server, Raritan's circuit breaker trip detection in the cabinet will alert you immediately.
-
Remote power control/outlet level power management
Easily control what equipment is connected to the PDU, keep outlets switched off to prevent unauthorized access, ensure proper provisioning, and avoid tripped circuit breakers. Remote power controls can be used to reboot hung servers or provision outlets for new devices without ever having to step foot in the facility.
-
Secure locking solutions
Raritan's intelligent rack PDUs are equipped with SecureLock outlets, preventing SecureLock power cords from coming unplugged due to vibration or human error.
